Dual Head Desktop Liquid Filling Machine
The Lancing UK LU-DTDP20-2 is a desktop dual-head liquid filling machine designed for efficient and accurate filling of various liquids, including juice...
Product ranges
Compact Range
Dual Head Desktop Liquid Filling Machine
The Lancing UK LU-DTDP20-2 is a desktop dual-head liquid filling machine designed for efficient and accurate filling of various liquids, including juice, perfume, milk, gel, and shampoo. Each pneumatic nozzle delivers up to 20L/min, ensuring high-speed performance for small to medium-scale production. Its chain conveyor system supports stable transport of heavier containers, while the adjustable bottle height and nozzle diameter offer flexibility across product types. Ideal for cosmetics, pharmaceuticals, catering, and daily chemical industries, this machine can be integrated with capping and labeling units for a complete automated packaging line.
- Throughput: 40–55 bottles/min
- Format range: Formats adjustable (bottle/closure dependent)
- Utilities: 110V / 220V, 50–60Hz
Gallery

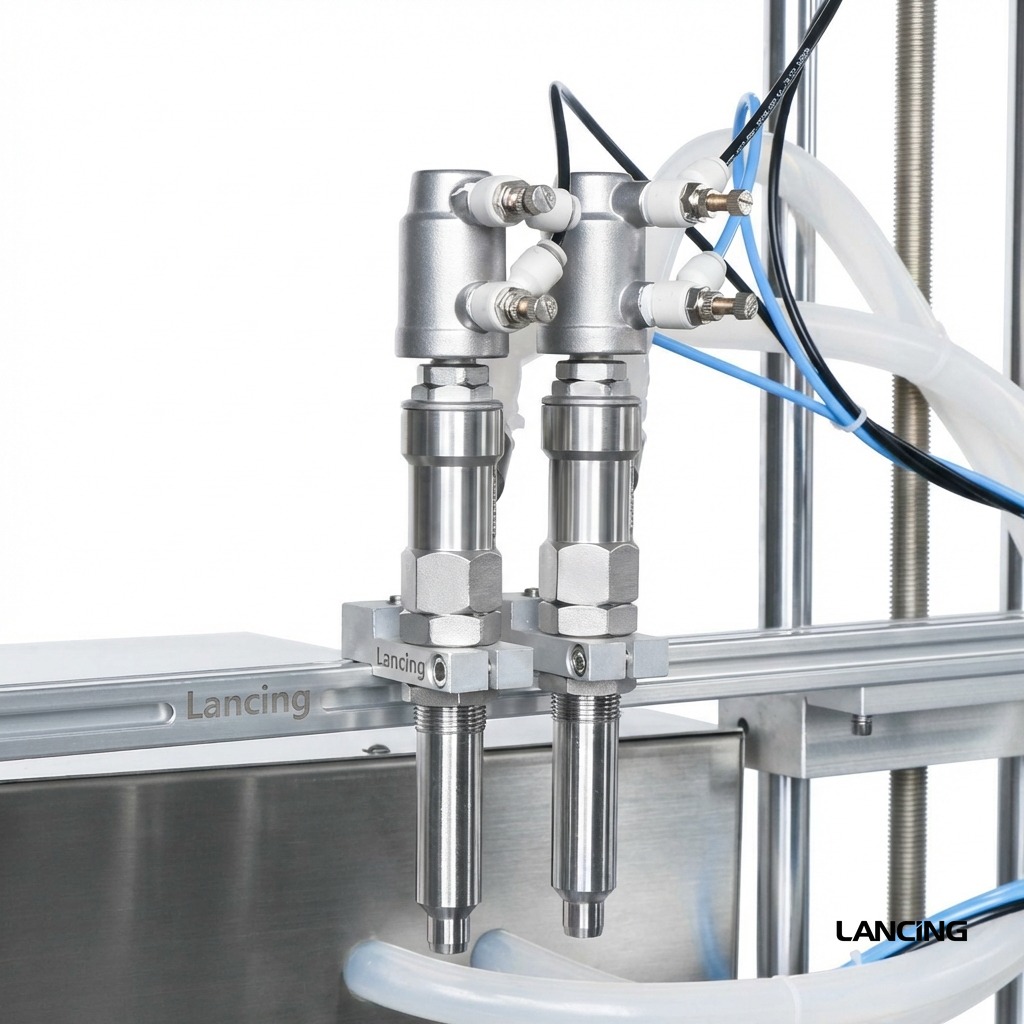

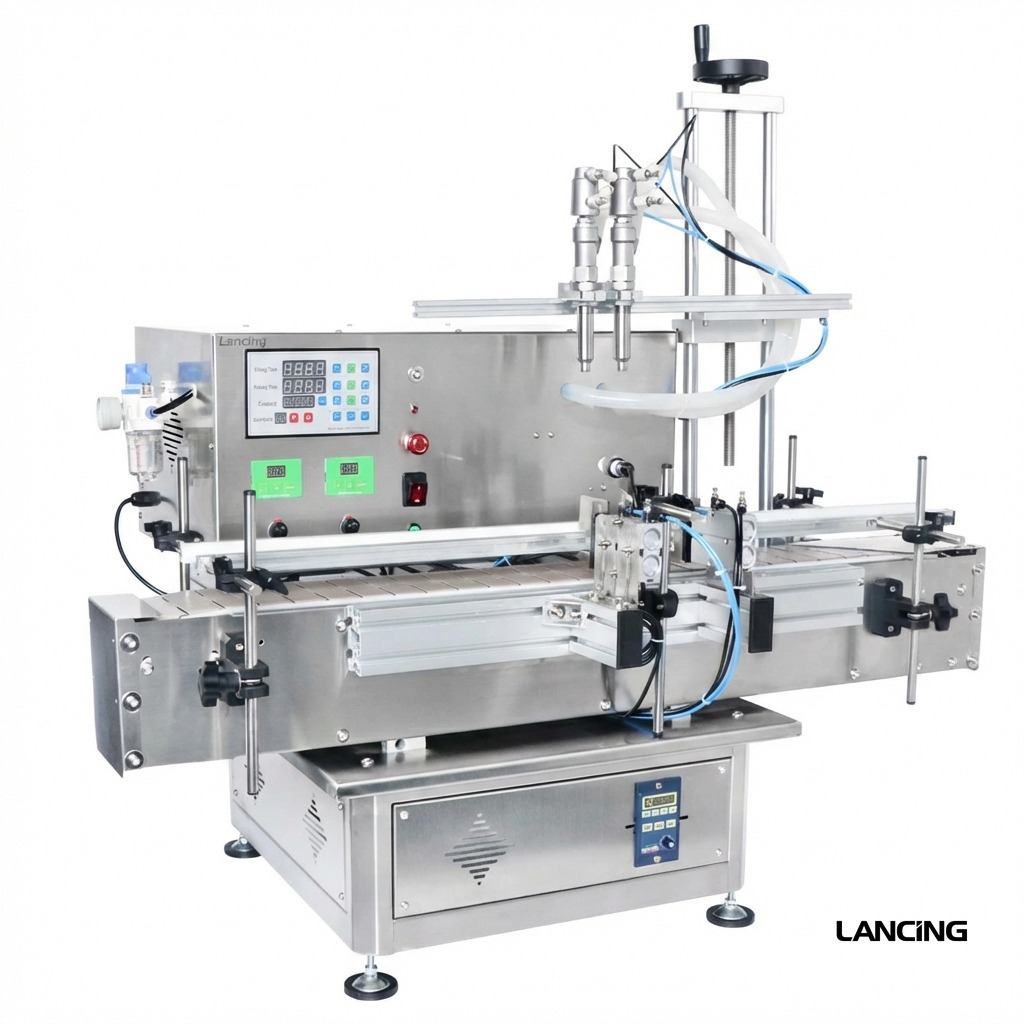

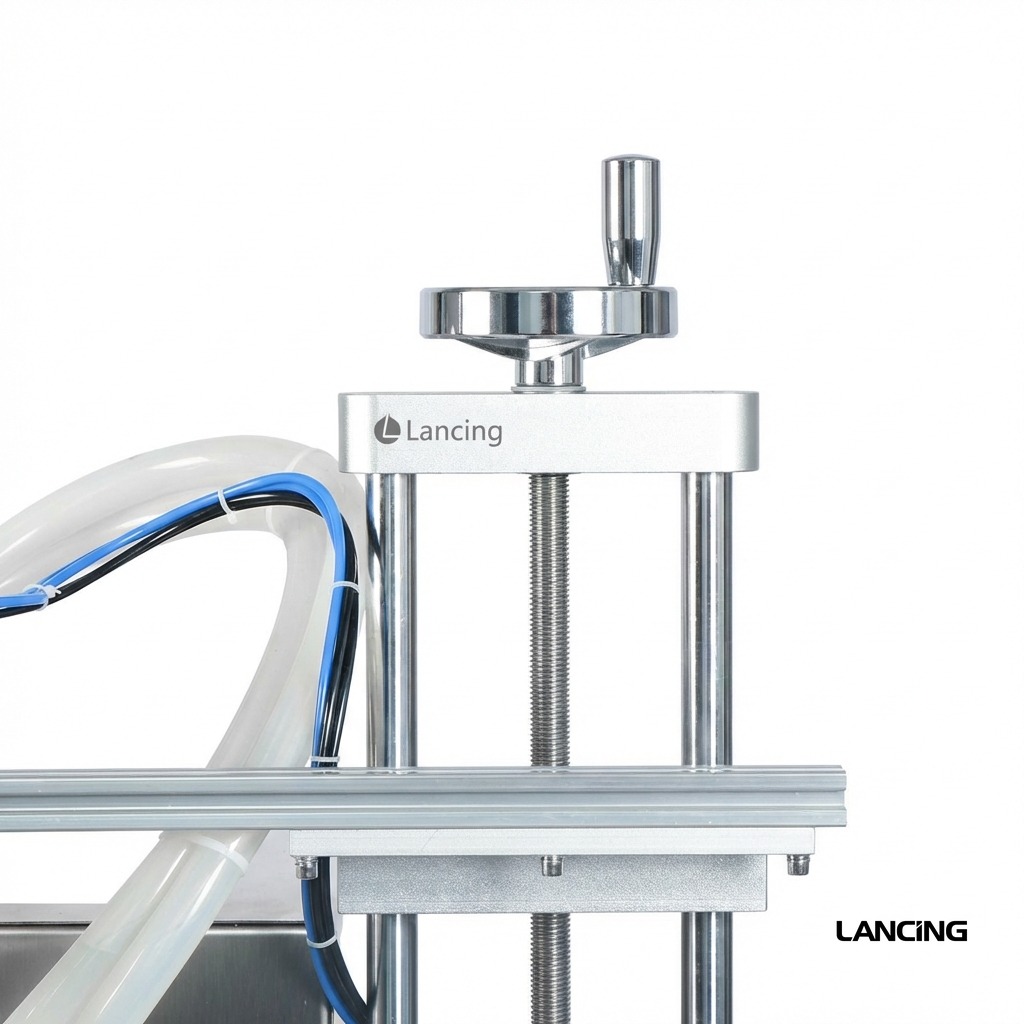

Machine views
Specifications
Reference details
| Machine Model | LU-DTDP20-2 |
|---|---|
| Voltage | 110V / 220V, 50–60Hz |
| Working Speed | 40–55 bottles/min |
| Air Pressure | 0.3–0.4 MPa |
| Filling Accuracy | ≤±1% |
| Bottle Height | <220 mm (customizable, max 300 mm) |
| Filling Nozzle Diameter | 10 mm |
| Conveyor Size | 1130 × 115 mm (L × W) |
| Machine Size Approx | 1130 × 710 × 1070 mm |
| Net/Gross Weight Approx | 74 kg / 103.5 kg |
Quick answers
Buyer and engineer notes
What is Dual Head Desktop Liquid Filling Machine used for?
The Lancing UK LU-DTDP20-2 is a desktop dual-head liquid filling machine designed for efficient and accurate filling of various liquids, including juice, perfume, milk, gel, and shampoo. Each pneumatic nozzle delivers up to 20L/min, ensuring high-speed performance for small to medium-scale production.
What output can Dual Head Desktop Liquid Filling Machine achieve?
This page lists output at 40–55 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110V / 220V, 50–60Hz; Air pressure: 0.3–0.4 MPa; Footprint / size: 1130 × 115 mm (L × W)
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
