Pro Range

LU‑XG1870P Automatic Capping Machine

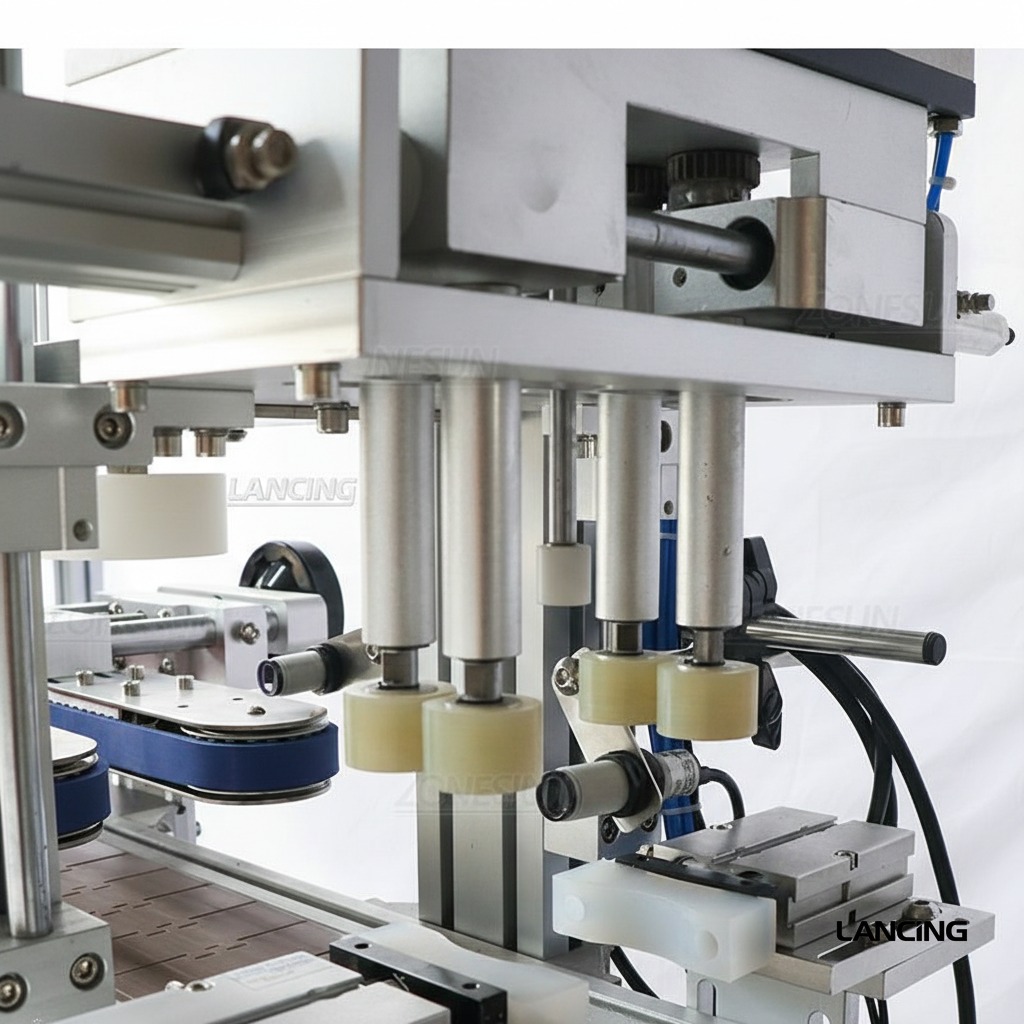

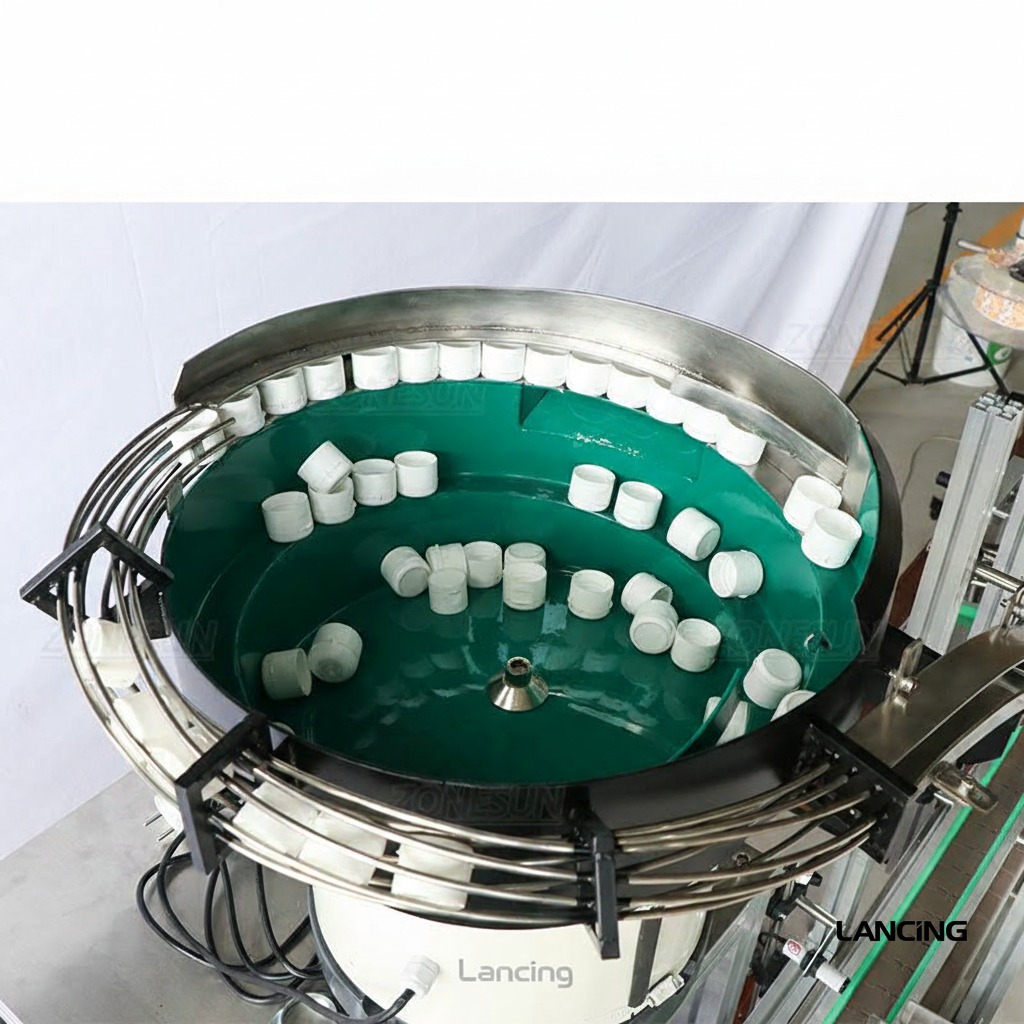

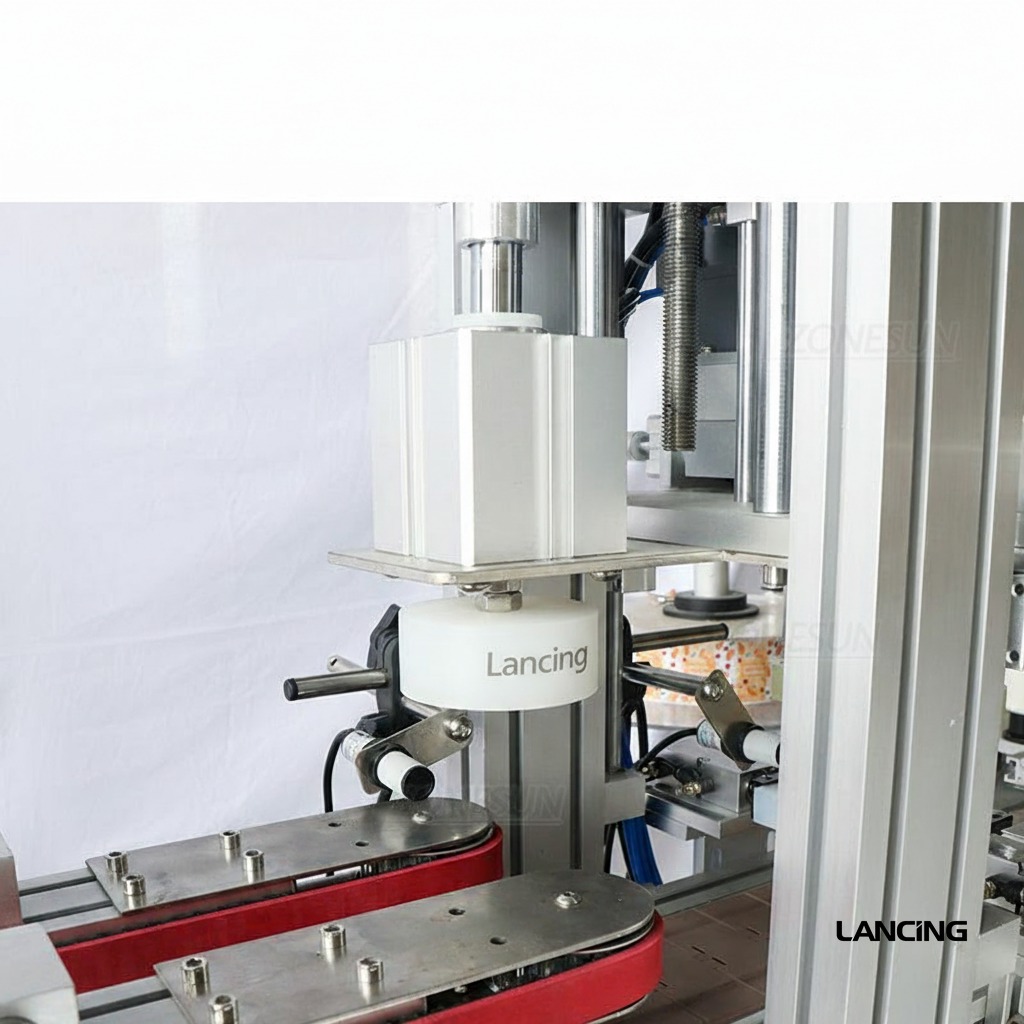

The Lancing UK LU‑XG1870P Automatic Capping Machine is equipped with a cap vibratory bowl for efficient sorting and feeding of caps. A rubber head secures each cap, while four spinning heads ensure stable, versatile capping for various closure types. Compatible with plastic, metal, and specialty caps, it can integrate seamlessly with filling and labeling machines to form a complete automated production line—ideal for high‑efficiency packaging operations. Lancing UK LU‑XG1870P Automatic Capping Machine Specifications Parameter Details Model LU‑XG1870P Voltage AC 220V / 110V, 50–60Hz Power 200W Bottle Height 60–270 mm Cap Diameter 18–70 mm Working Speed 20–40 bottles/min (depends on bottle & cap size) Conveyor Length 1117 mm Working Pressure 0.4–0.6 MPa Air Compressor Connector Size Outer Diameter 8 mm Machine Dimensions Approx. 2100 × 580 × 1200 mm Vibratory Bowl Dimensions Approx. 500 × 500 × 1180 mm Packing Size – Machine Approx. 1140 × 615 × 1105 mm Packing Size – Vibratory Bowl Approx. 1165 × 680 × 710 mm Net Weight Approx. 85 kg (Machine) + 88 kg (Vibratory Bowl) Gross Weight Approx. 114 kg (Machine) + 116 kg (Vibratory Bowl)

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
