Pro Range

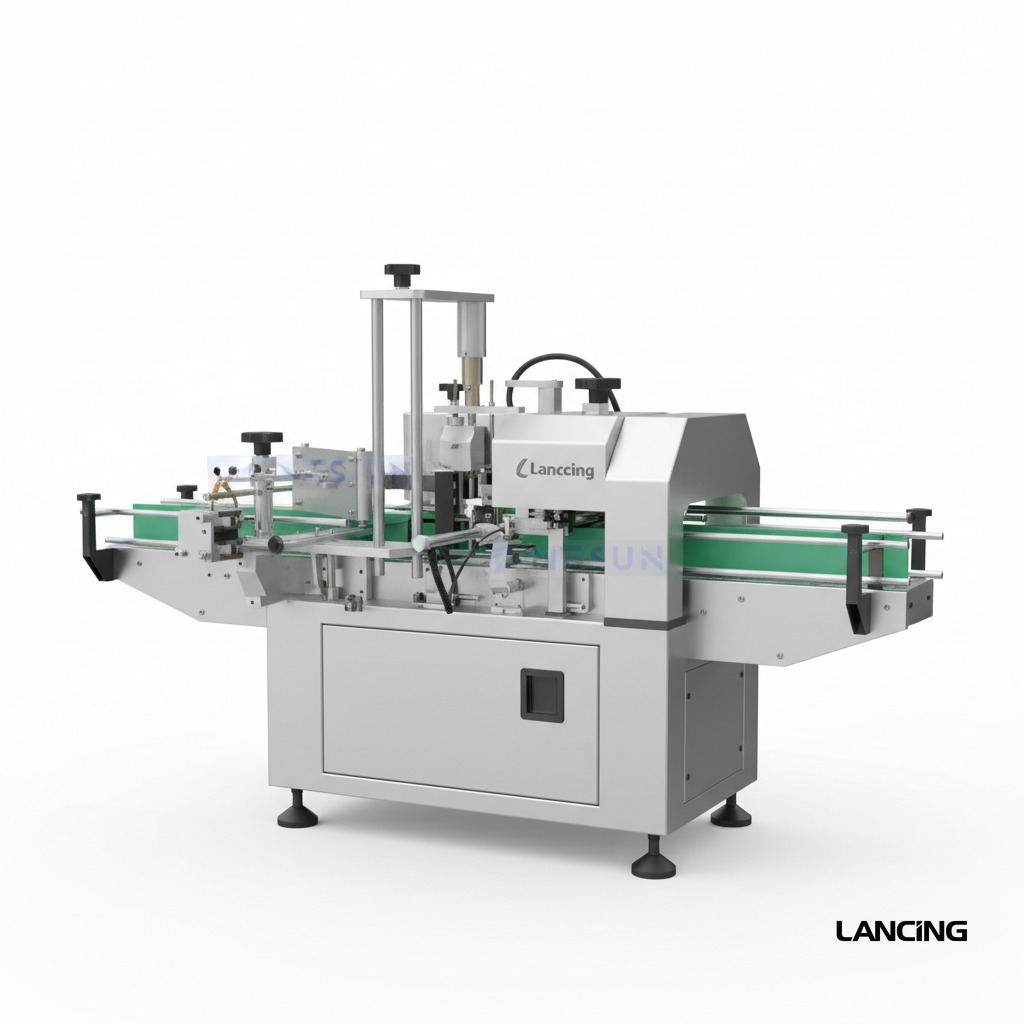

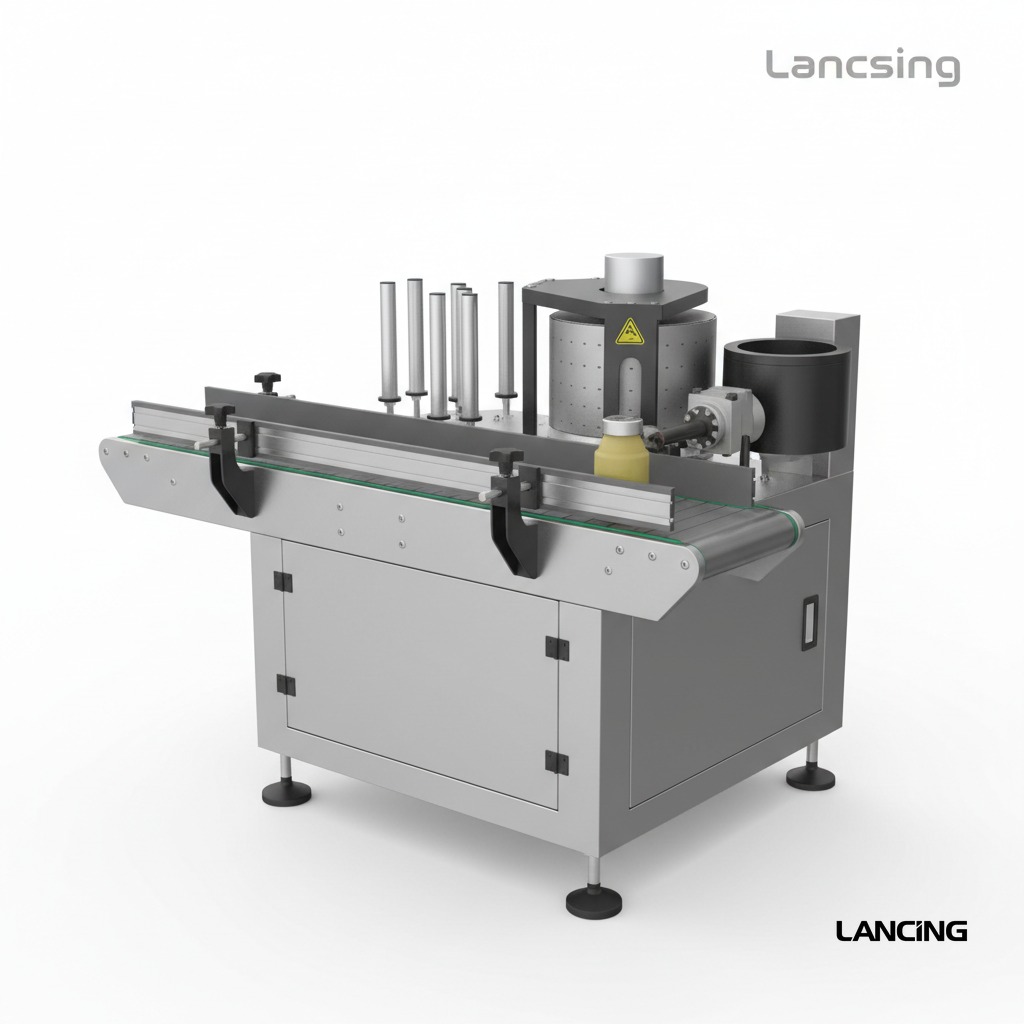

Hot Melt Glue Labeling Machine

The LU-GTB12S is a high-speed automatic labeling machine designed for square and oblong bottles. Equipped with a PLC system and hot melt glue technology, it ensures precise label placement and consistent performance. Supporting various label types including OPP film and paper composites, this machine is ideal for large-scale packaging operations. With customizable settings and a user-friendly interface, Lancing UK helps you label smarter and faster. Lancing UK LU-GTB12S Automatic Hot Melt Glue Labeling Machine – Technical Specifications Parameter Specification Machine Model LU-GTB12S Power Supply Three-phase 380V, 50Hz, 8000W Maximum Labeling Speed Approx. 1200–1400 pcs/hour Labeling Accuracy ±1mm Max Label Width (Height) 180mm (customizable) Max Label Length 750mm Max Label Outer Diameter 600mm Min Label Inner Diameter 152mm Glue Type Hot melt adhesive (applied only at both ends of label) Gluing Temperature 120–160°C Label Types OPP film, paper-plastic composite film, paper label Applicable Product Type Square bottles Machine Dimensions (L × W × H) Approx. 4650 × 1650 × 1650 mm Machine Weight Approx. 1500 kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
