Pro Range

Automatic Round Bottle Labeling Machine

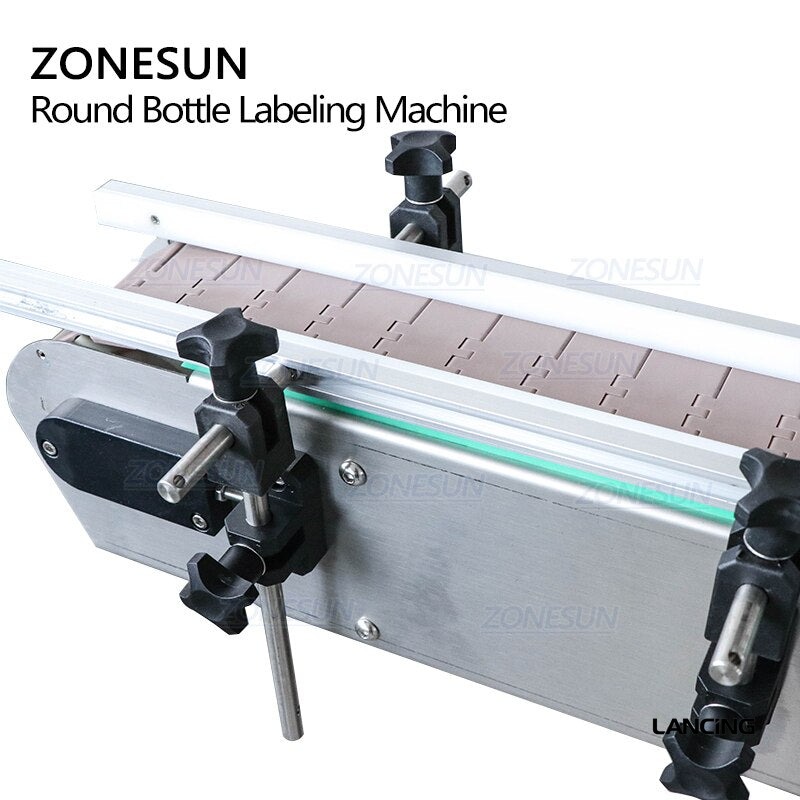

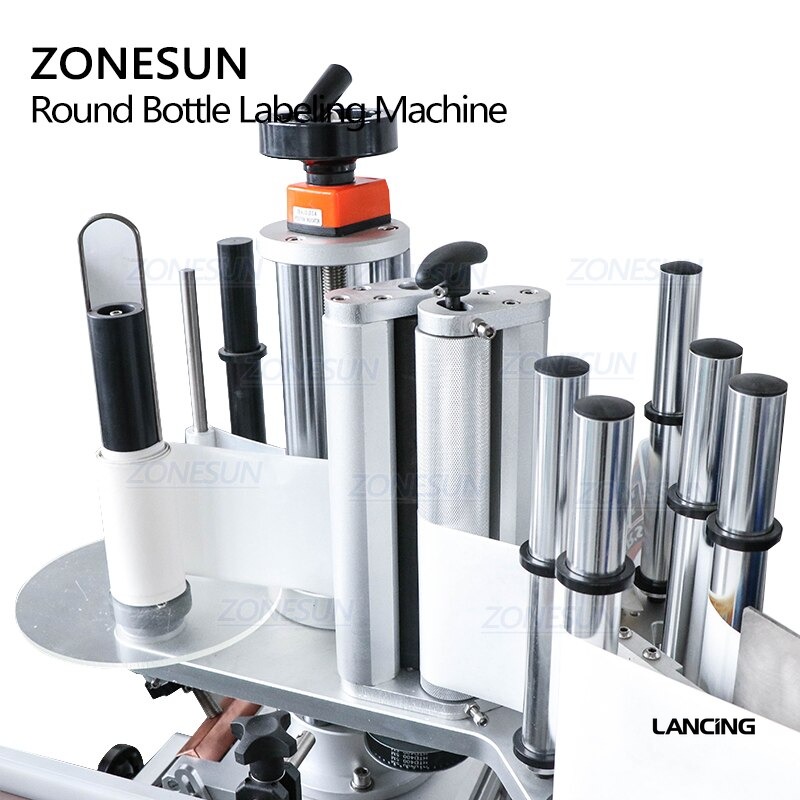

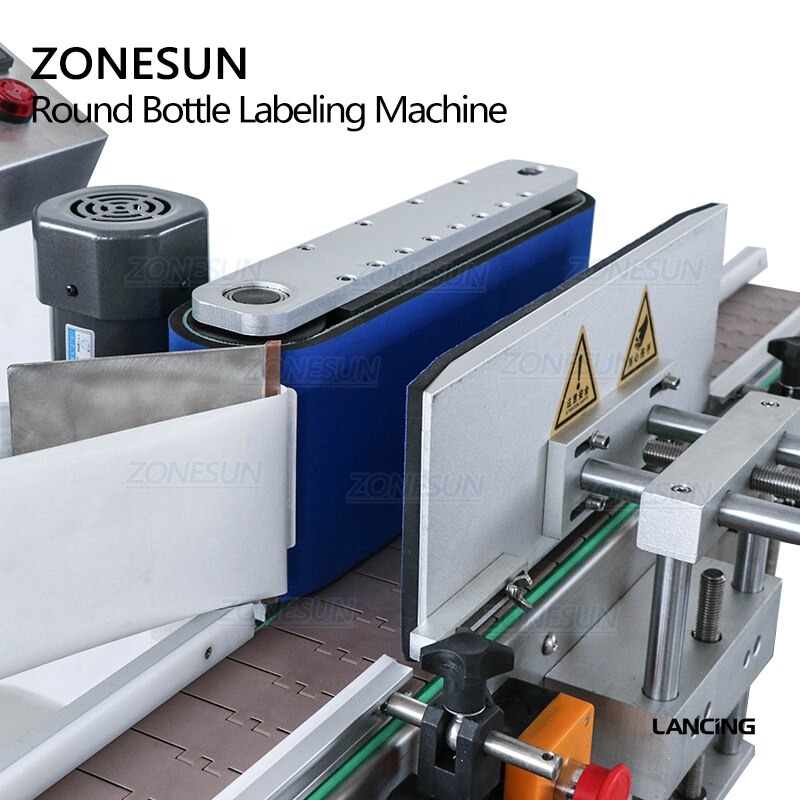

The Lancing UK LU-TB200 is a fully automatic labeling machine designed for precise single-side labeling on round bottles. It features an integrated bottle transfer system, automatic sticker separation, and high-accuracy label application. Optional date coding functionality allows printing of production dates directly onto labels. Ideal for juice, water, toner, and other cylindrical containers, this machine boosts efficiency and ensures consistent labeling performance. Lancing UK LU-TB200 Labeling Machine Specifications Item Specification Model LU-TB200 Label Length 30–300mm Label Width 30–150mm Suitable Bottle Diameter Ø20–120mm Outside Diameter of Label Roll Ø280mm Inside Diameter of Label Roll Ø76mm Labeling Accuracy ±1.0mm Machine Weight About 250kg Frequency 50Hz / 60Hz Voltage 220V / 110V Power 1100W Conveying Speed 16m/min Marking Speed 5–19m/min Labeling Speed 30–160 pcs/min Dimensions About 2000 × 900 × 1500mm

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
