Automatic Servo Capping Machine
Effortlessly cap a variety of bottles with the Automatic Capping Machine. Featuring a four-roller clamping and capping system, this machine handles dive...
Product ranges
Pro Range
Automatic Servo Capping Machine
Effortlessly cap a variety of bottles with the Automatic Capping Machine. Featuring a four-roller clamping and capping system, this machine handles diverse screw-on caps with ease. Powered by a servo motor, the rollers offer adjustable torque and force, adapting to different cap requirements.
- Throughput: About 20-60 bottles/min
- Format range: Formats adjustable (bottle/closure dependent)
- Utilities: AC 110/220V 50-60HZ
Gallery

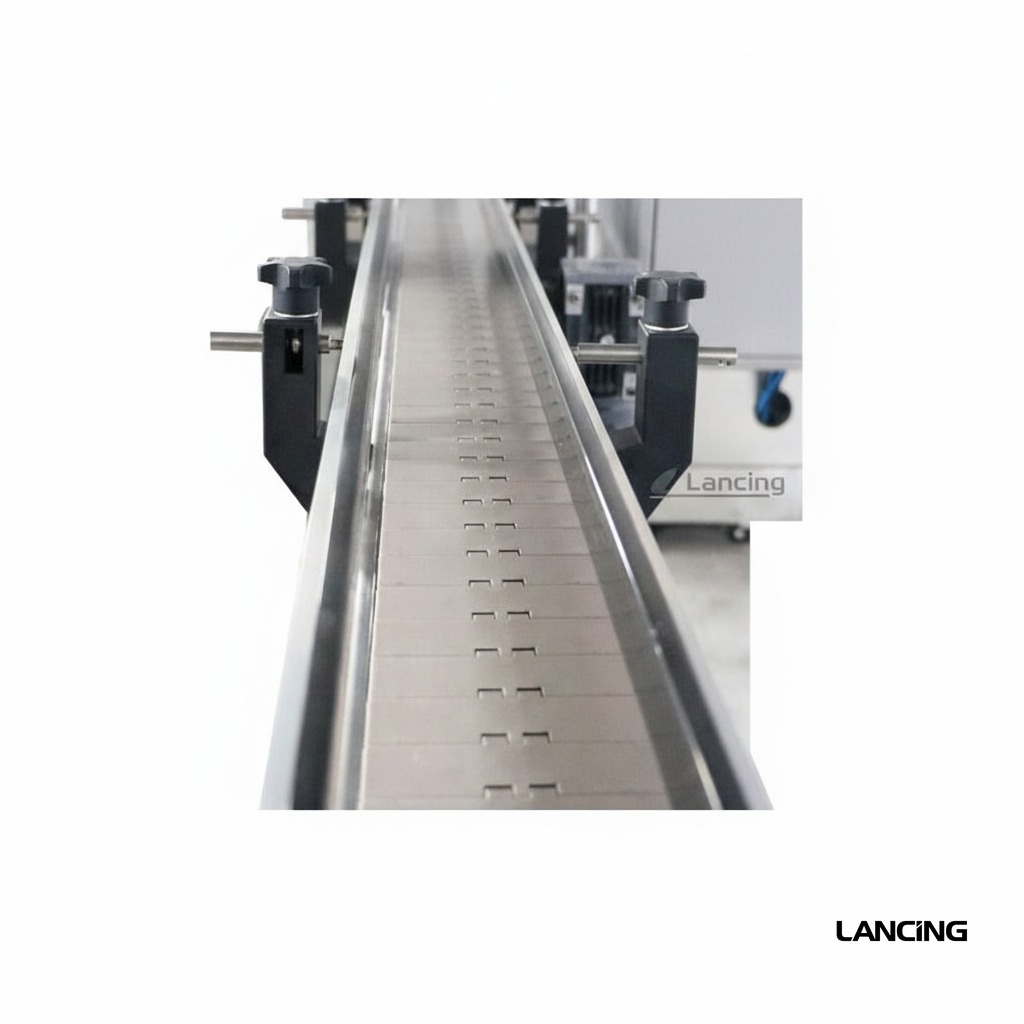

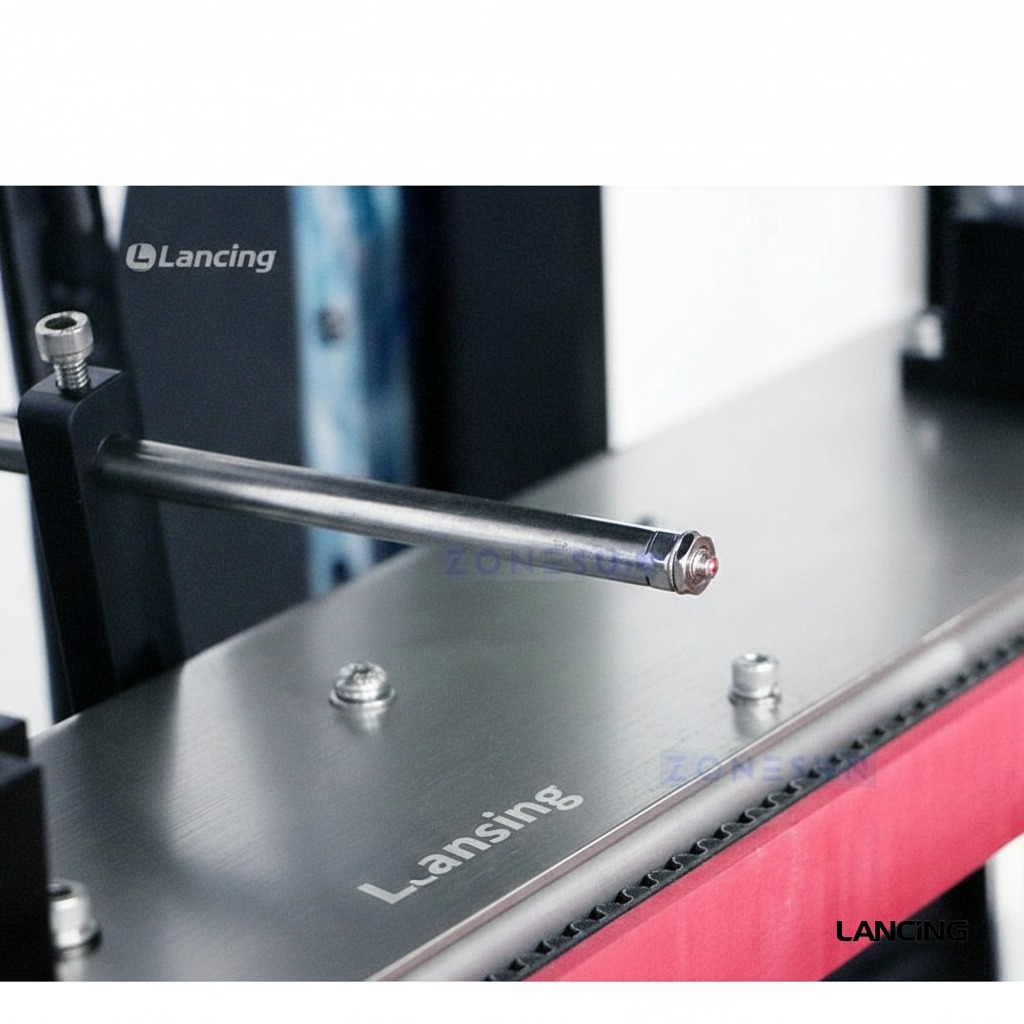

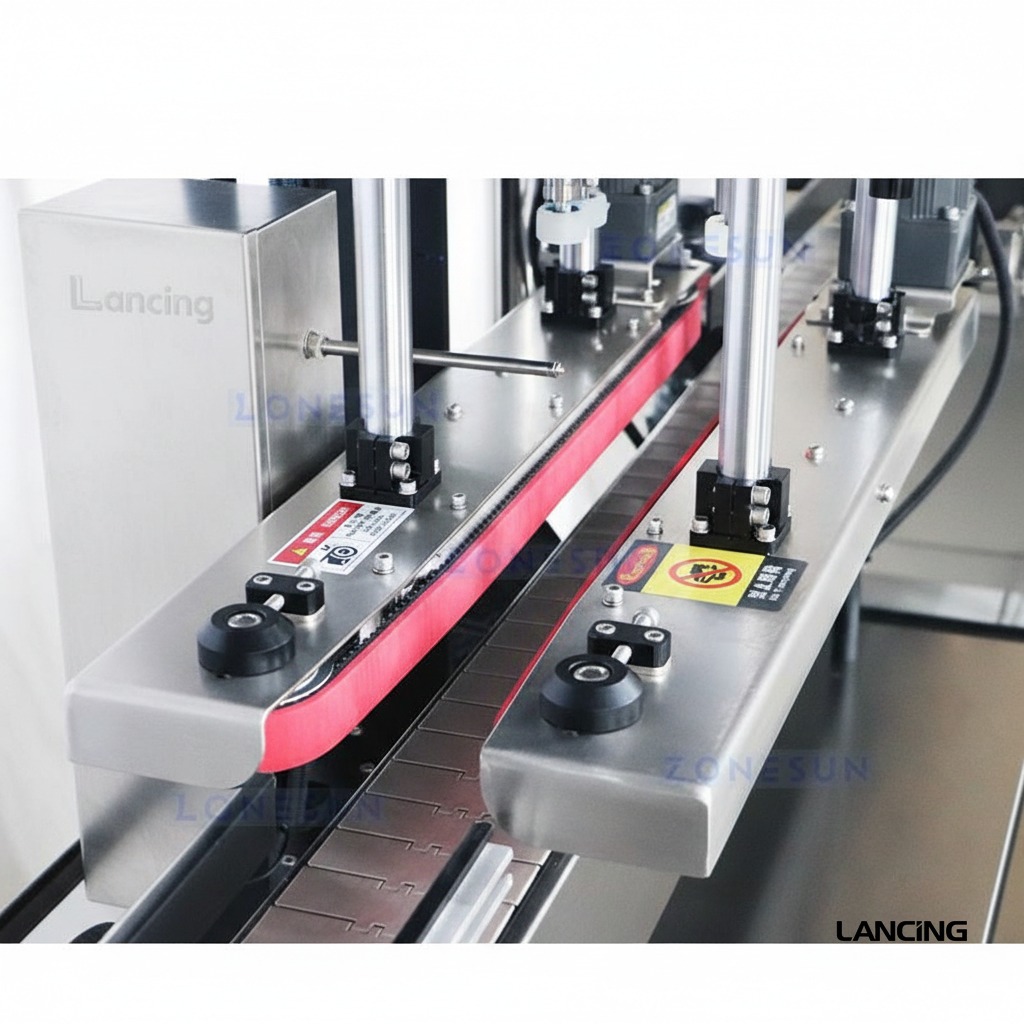

Machine views
Specifications
Reference details
| Machine model | LU-XG440RSL |
|---|---|
| Voltage | AC 110/220V 50-60HZ |
| Machine power | About 2KW |
| Suitable cover diameter | 30-80mm (Can be customized) |
| Suitable Bottle Height | 60-200mm |
| Suitable Bottle Body Diameter | 30-100mm |
| Working pressure | 0.5-0.7Mpa |
| Working speed | About 20-60 bottles/min |
| Machine size | About 3200×2200×1350mm |
Quick answers
Buyer and engineer notes
What is Automatic Servo Capping Machine used for?
Effortlessly cap a variety of bottles with the Automatic Capping Machine. Featuring a four-roller clamping and capping system, this machine handles diverse screw-on caps with ease.
What output can Automatic Servo Capping Machine achieve?
This page lists output at About 20-60 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: AC 110/220V 50-60HZ; Power: About 2KW; Footprint / size: About 3200×2200×1350mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
