Automatic Servo Piston Filling Machine
Automatic Servo Piston Filling Machine 10-Head Paste Filler , sales and related technical services of modern high-tech enterprises. Opens in a new windo...
Product ranges
Pro Range
Automatic Servo Piston Filling Machine
Automatic Servo Piston Filling Machine 10-Head Paste Filler , sales and related technical services of modern high-tech enterprises. Opens in a new window.
- Throughput: Approx. 30–80 bottles/min (depends on filling range and material)
- Format range: 50–1000 ml (customizable)
- Utilities: 220V / 110V
Gallery

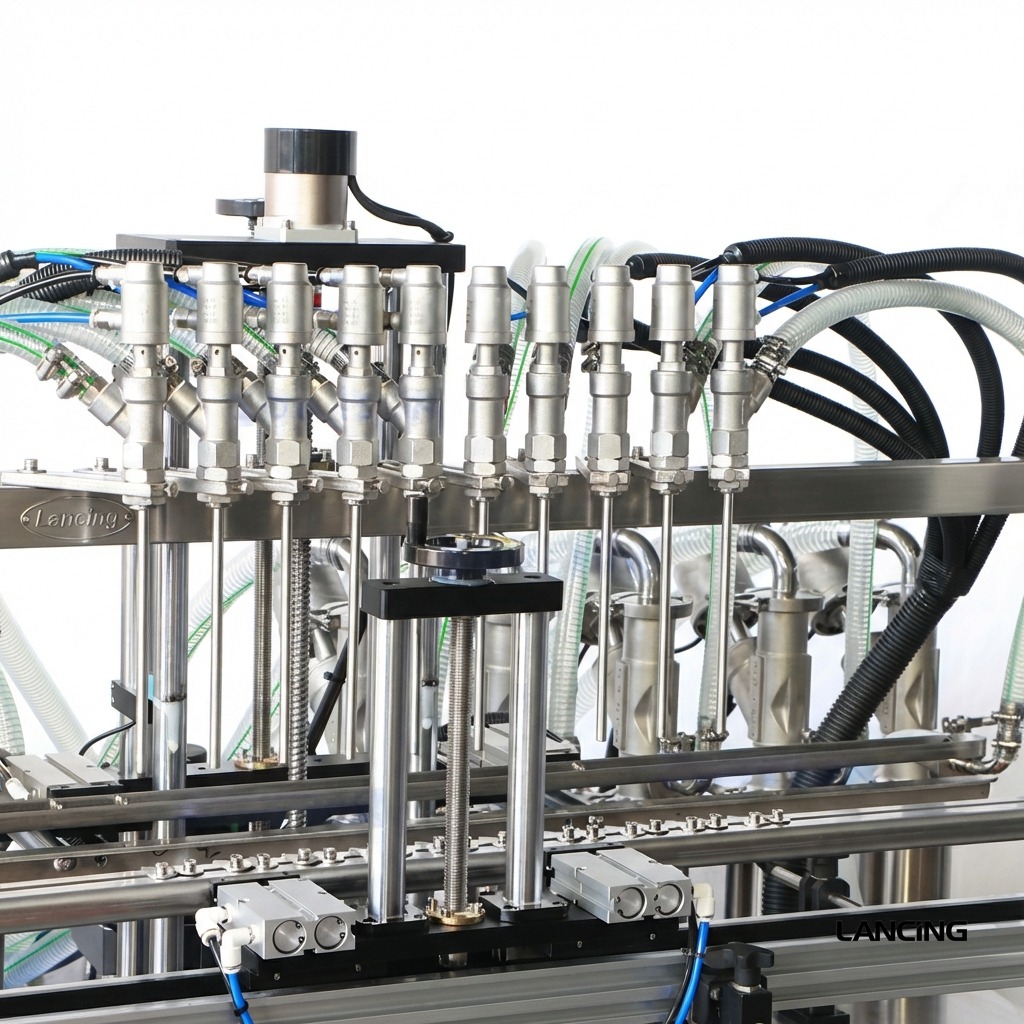

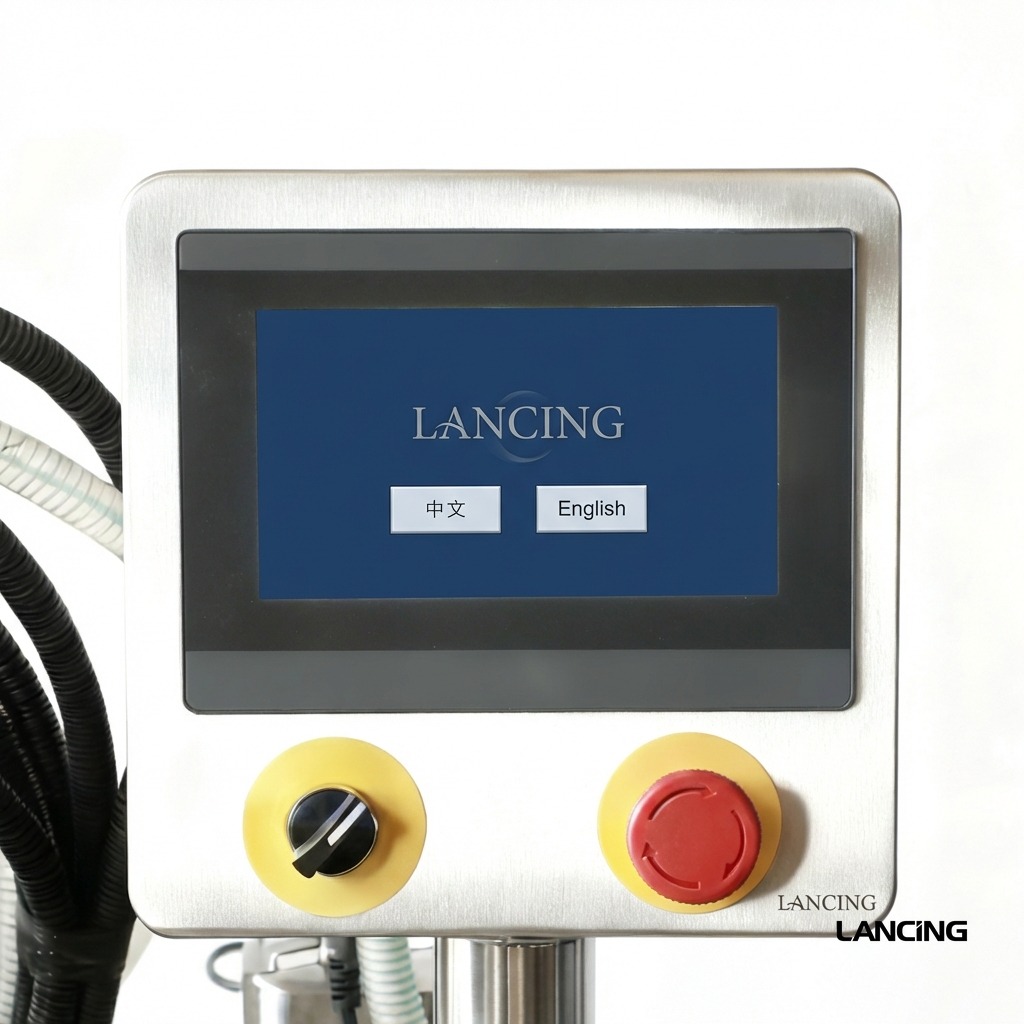

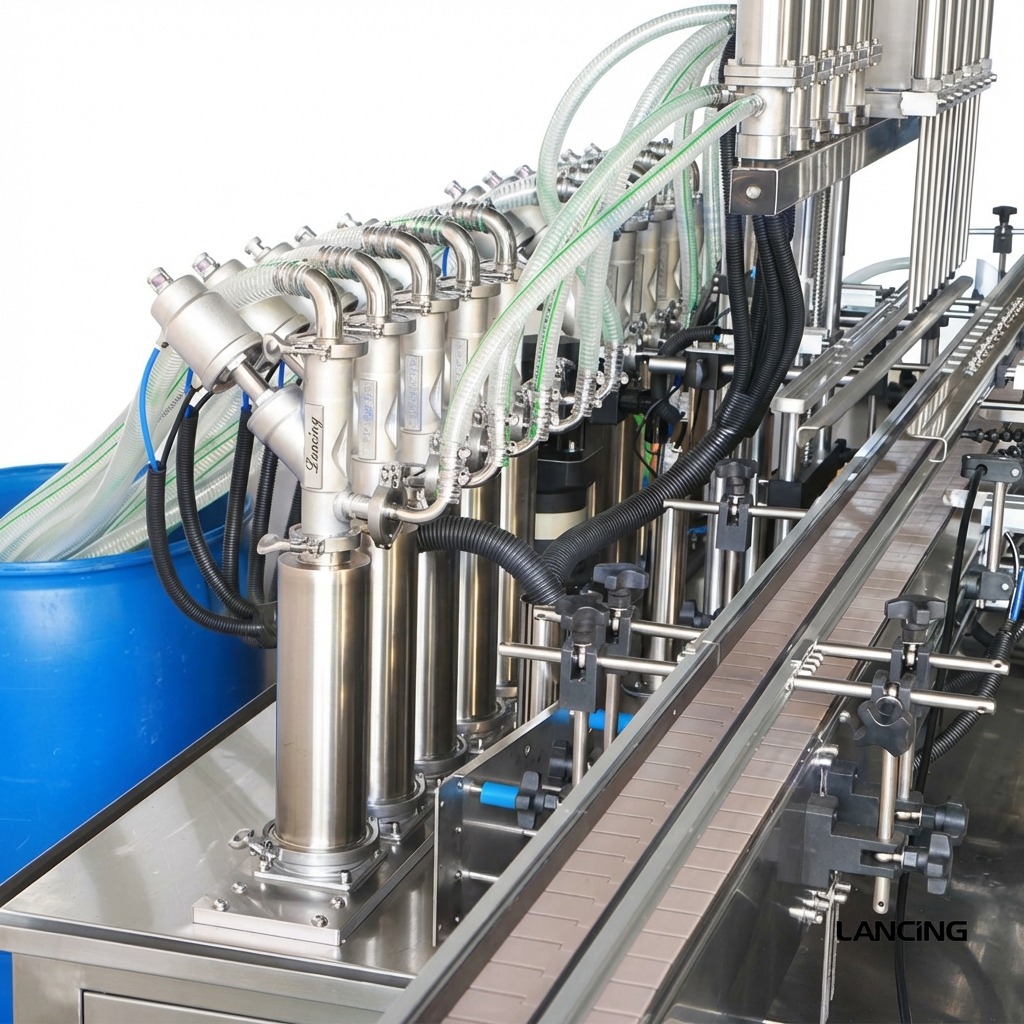

Machine views
Specifications
Reference details
| Model | LU-SV10HS |
|---|---|
| Voltage | 220V / 110V |
| Power Consumption | 4 kW |
| Filling Pump Type | Servo Piston Pump |
| Filling Nozzles | 10 heads (customizable) |
| Filling Speed | Approx. 30–80 bottles/min (depends on filling range and material) |
| Filling Range | 50–1000 ml (customizable) |
| Filling Accuracy | ±0.5% |
| Conveyor Dimensions (L × W) | 5000 × 114 mm |
| Air Pressure Requirement | 0.5–0.7 MPa |
| Machine Dimensions (L × W × H) | 5000 × 1020 × 1610 mm |
Quick answers
Buyer and engineer notes
What is Automatic Servo Piston Filling Machine used for?
Automatic Servo Piston Filling Machine 10-Head Paste Filler , sales and related technical services of modern high-tech enterprises. Opens in a new window.
What output can Automatic Servo Piston Filling Machine achieve?
This page lists output at Approx. 30–80 bottles/min (depends on filling range and material). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 220V / 110V; Power: 4 kW; Air pressure: 0.5–0.7 MPa
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
