Automatic Stretch Blow Molding Bottle Machine
Automatic Stretch Blow Molding Bottle Machine , sales and related technical services of modern high-tech enterprises. Opens in a new window. You may also like Customer Reviews
- Throughput: Configurable (confirm during quote)
- Format range: 1300bph
- Utilities: 380V / 50–60Hz
Gallery

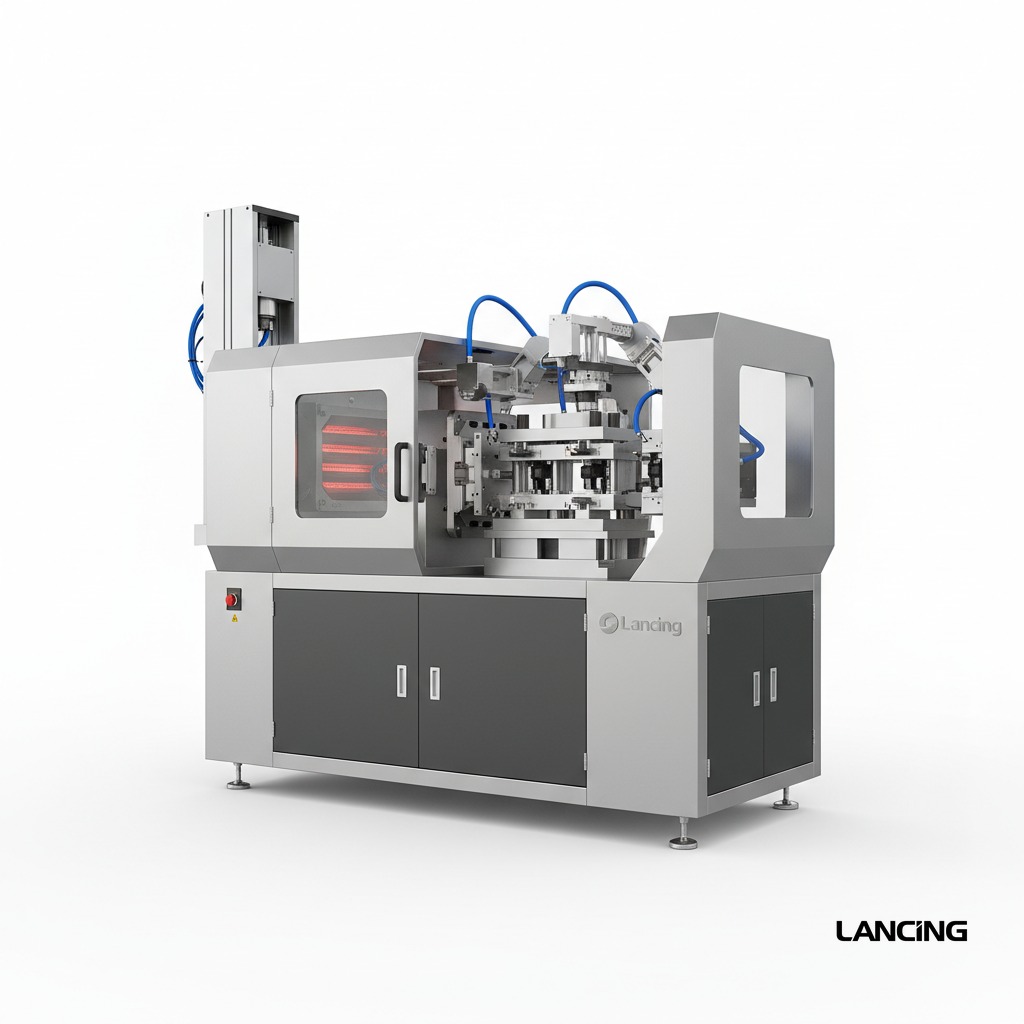

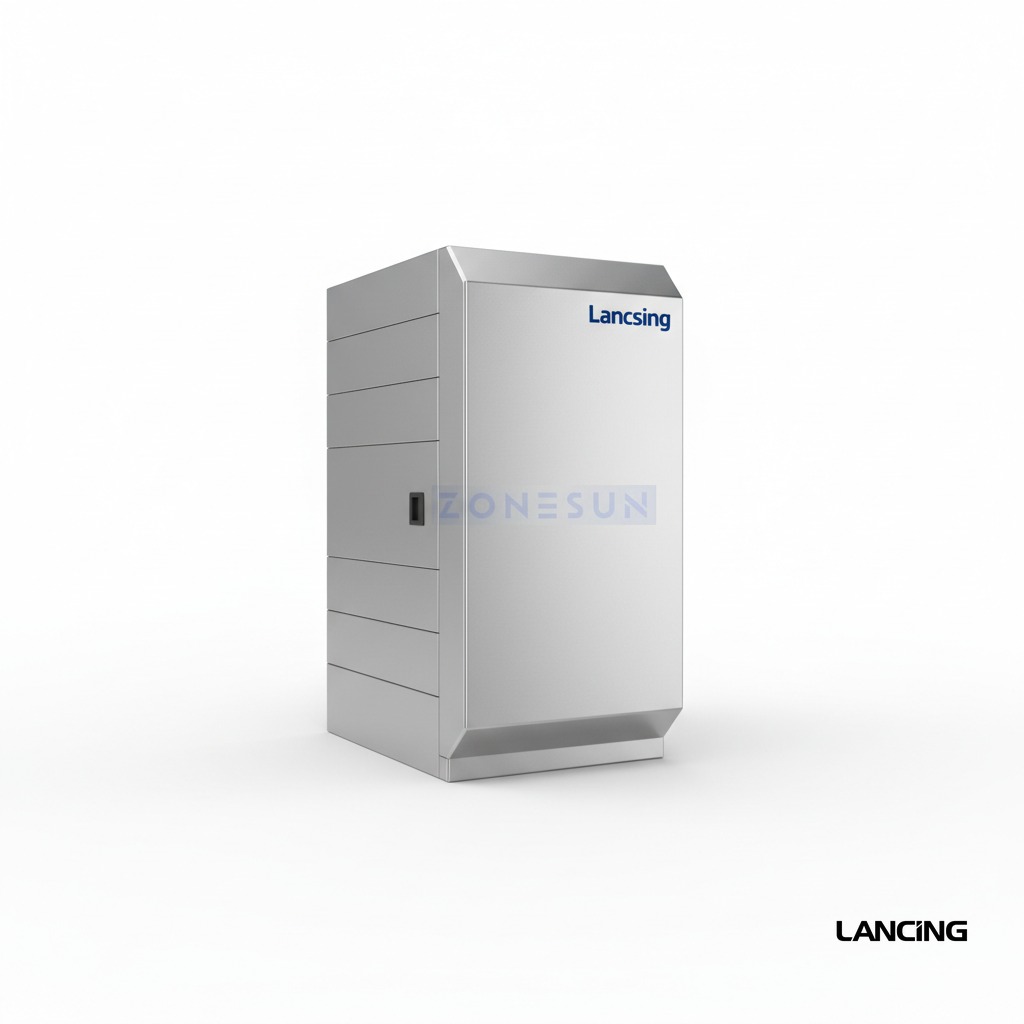

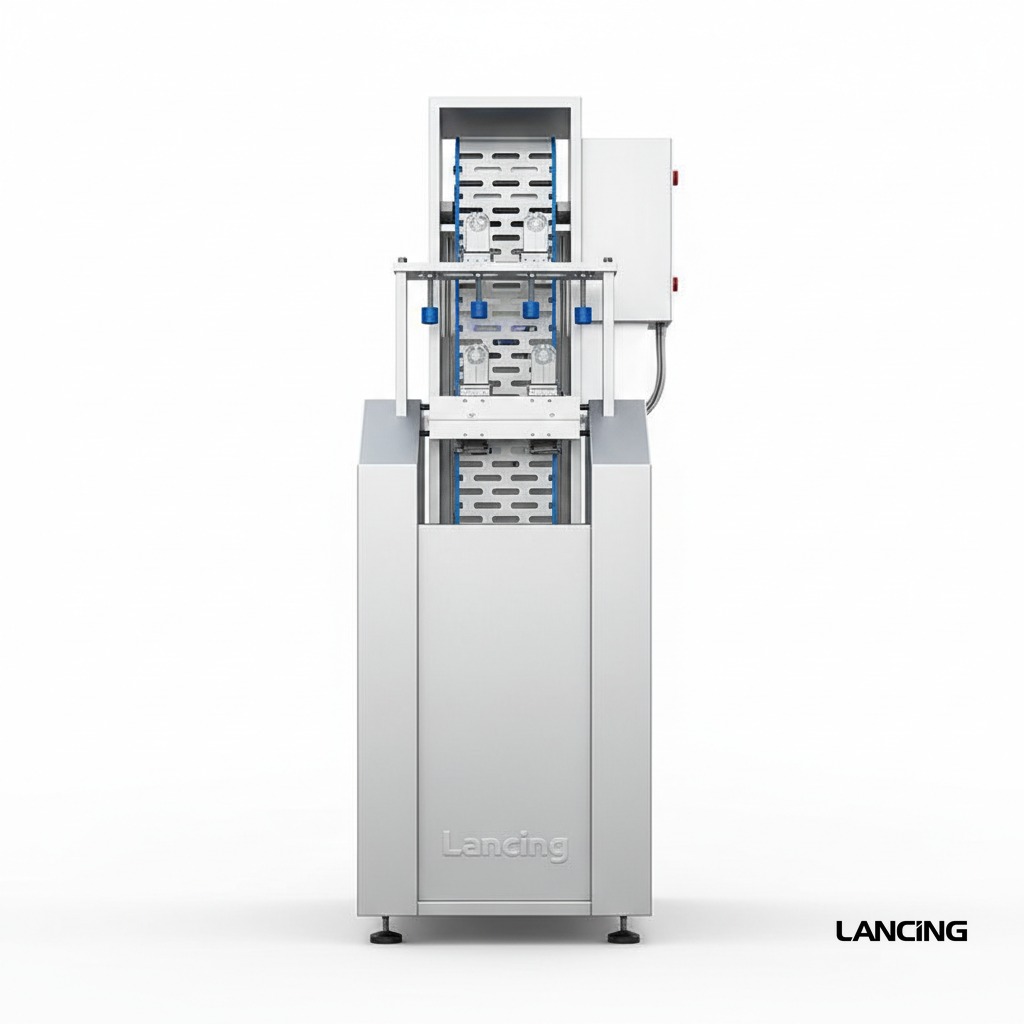

Machine views
Specifications
Reference details
| Parameter | LU-SBM32A1 |
|---|---|
| Cavity | 1 |
| Container Volume | 100–2000ml |
| Mold Opening Stroke | 180mm |
| Mold Thickness | 300mm |
| Stretching Stroke | 450mm |
| Capacity | 1300bph |
| Container Diameter | 50–105mm |
| Container Height | 80–280mm |
| Neck Range | 28–38mm |
| Voltage/Frequency | 380V / 50–60Hz |
| Heater Power | 7kW |
| Blowing Pressure | 8bar |
| Low Pressure | 8bar |
| Air Low Consumption | 1.0m³/min |
| High Air Consumption | 1.6m³/min |
| Water Consumption | 16–25L/min |
| Dimension (L×W×H) | 1.8×0.8×1.8m |
| Weight | 2000kg |
| Pass Rate | ≥99.8% |
Quick answers
Buyer and engineer notes
What is Automatic Stretch Blow Molding Bottle Machine used for?
Automatic Stretch Blow Molding Bottle Machine , sales and related technical services of modern high-tech enterprises. Opens in a new window.
What output can Automatic Stretch Blow Molding Bottle Machine achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Voltage: 380V / 50–60Hz; Power: 7kW; Air consumption: 1.0m³/min
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
