LU-CL6T High-Volume Liquid Filling Machine
The Lancing UK LU-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring s...
Product ranges
Pro Range
LU-CL6T High-Volume Liquid Filling Machine
The Lancing UK LU-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring six servo-driven magnetic pumps and a 320L storage tank with automatic level detection, it ensures consistent flow and accurate dosing. Bottles are positioned by a stopper and gripper system, while the servo-controlled filling heads descend for precise dispensing. A drip tray prevents spills, and the PLC interface allows easy adjustment of filling parameters. Ideal for chemical, cosmetic, and food-grade liquid packaging, this machine supports up to 42 bottles/min with ±1% accuracy.
- Throughput: Configurable (confirm during quote)
- Format range: 500–5000ml
- Utilities: Site utilities to be confirmed
Gallery

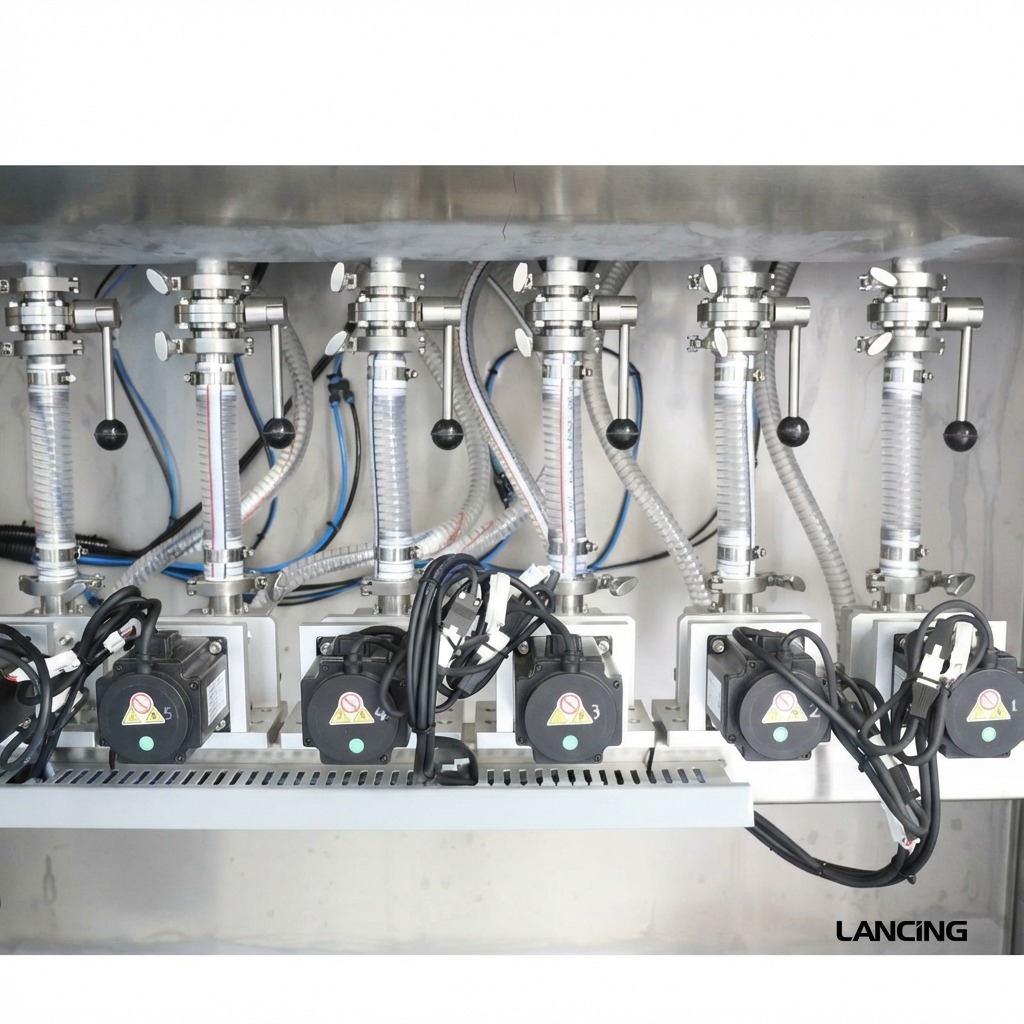

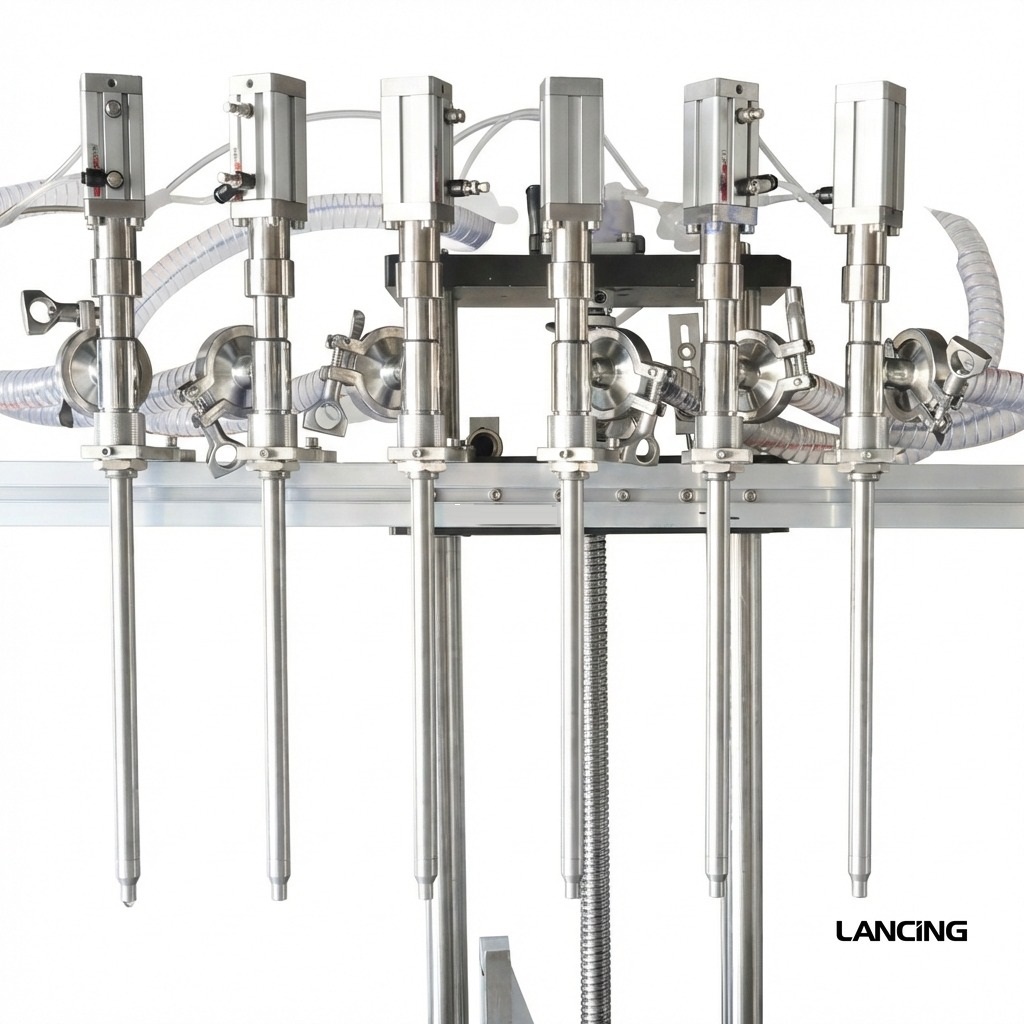

Machine views
Specifications
Reference details
| Model | LU-CL6T |
|---|---|
| Filling range | 500–5000ml |
| Filling head | Quantity: 6, Size: 8mm |
| Filling pump | Magnetic pump, 45L/min, servo motor driven |
| Capacity | Max 42 bottles/min (500ml) |
| Accuracy | ≤ ±1% |
| Applicable bottle | Height ≤ 330mm, Diameter ≤ 110mm |
| Lifting | Servo motor driven |
| Conveyor | Width: 114mm, Length: 2422mm |
| Storage tank | 320L |
| Size (L×W×H) | 2615×1621×2153mm |
| Weight | 752kg |
Quick answers
Buyer and engineer notes
What is LU-CL6T High-Volume Liquid Filling Machine used for?
The Lancing UK LU-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring six servo-driven magnetic pumps and a 320L storage tank with automatic level detection, it ensures consistent flow and accurate dosing.
What output can LU-CL6T High-Volume Liquid Filling Machine achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Footprint / size: 2615×1621×2153mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
