LU-CYGDP6 Automatic Round Bottle Label Applicator

This automatic labeling machine is a type of industrial machinery used to apply self-adhesive labels to a variety of cylindrical containers such as plas...

LU-CYGDP6 Automatic Round Bottle Label Applicator

Pro Range

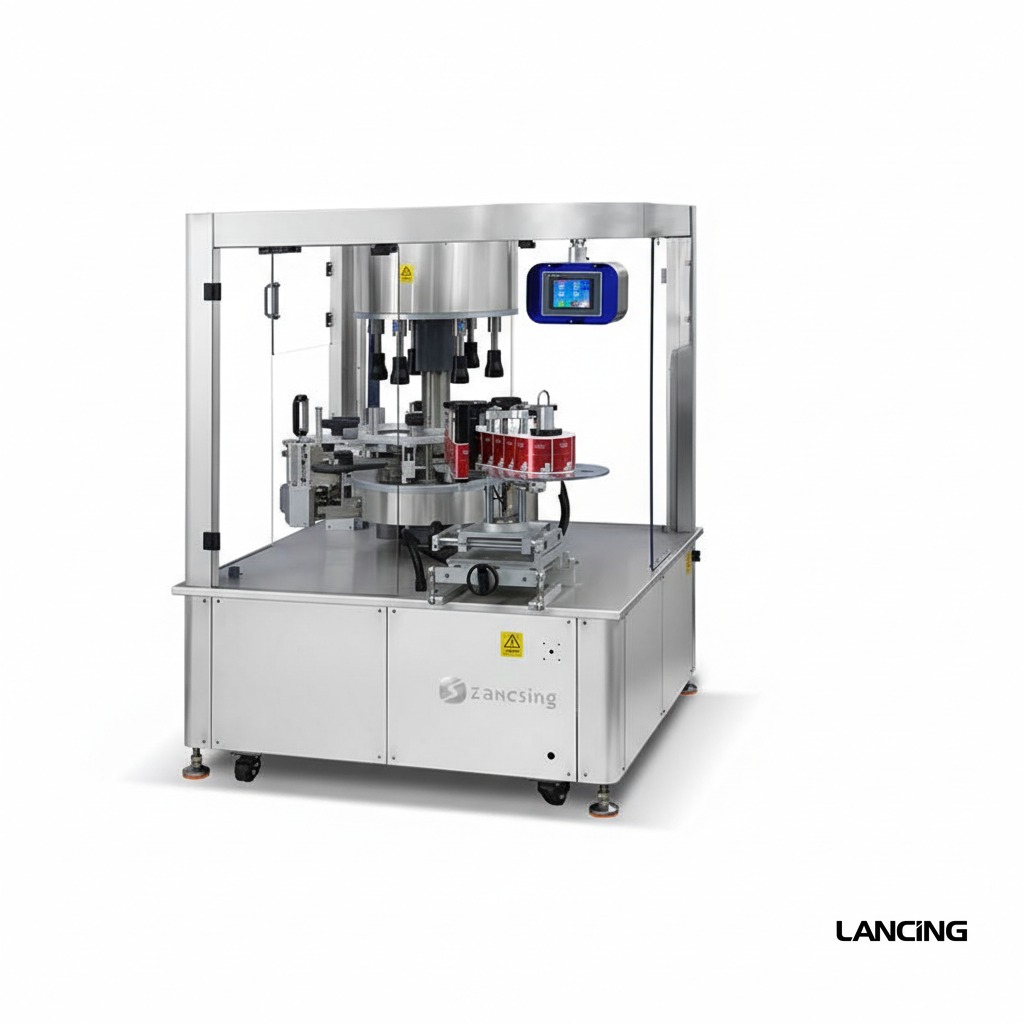

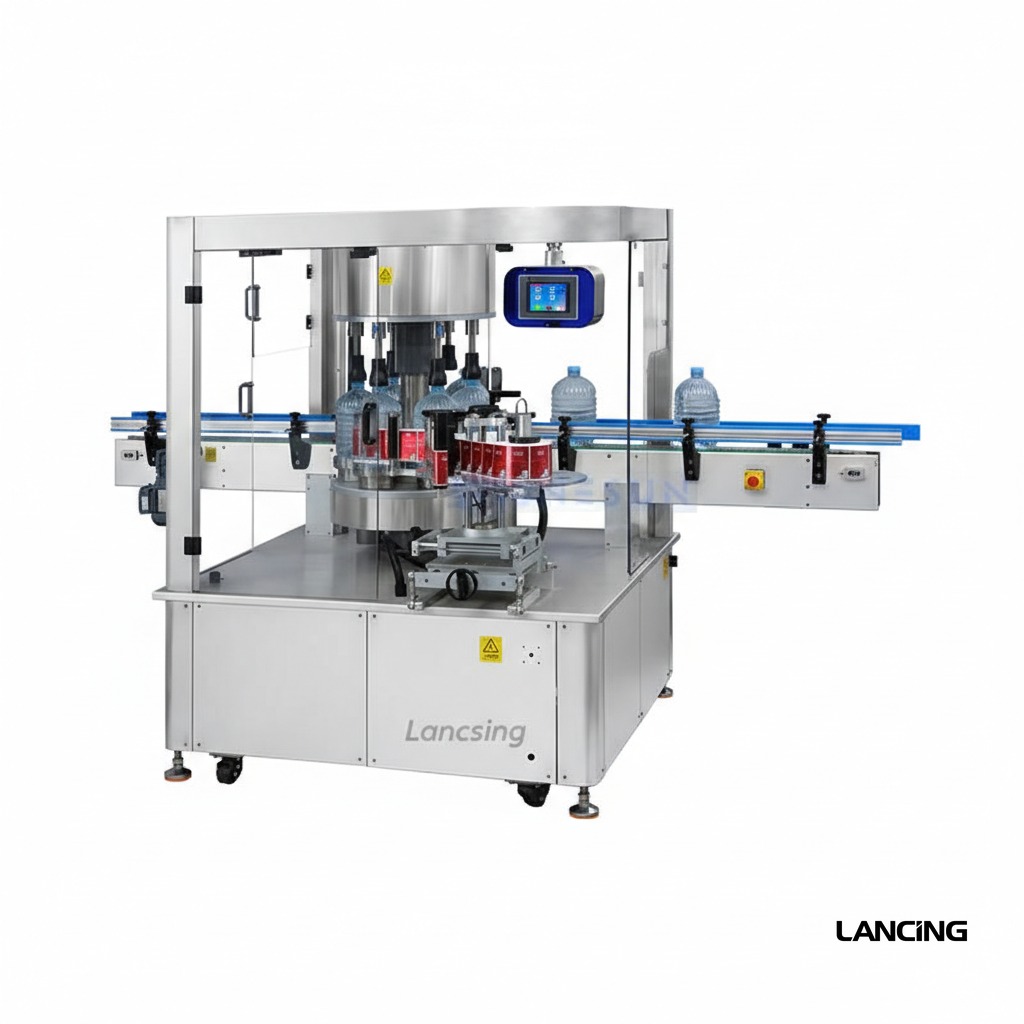

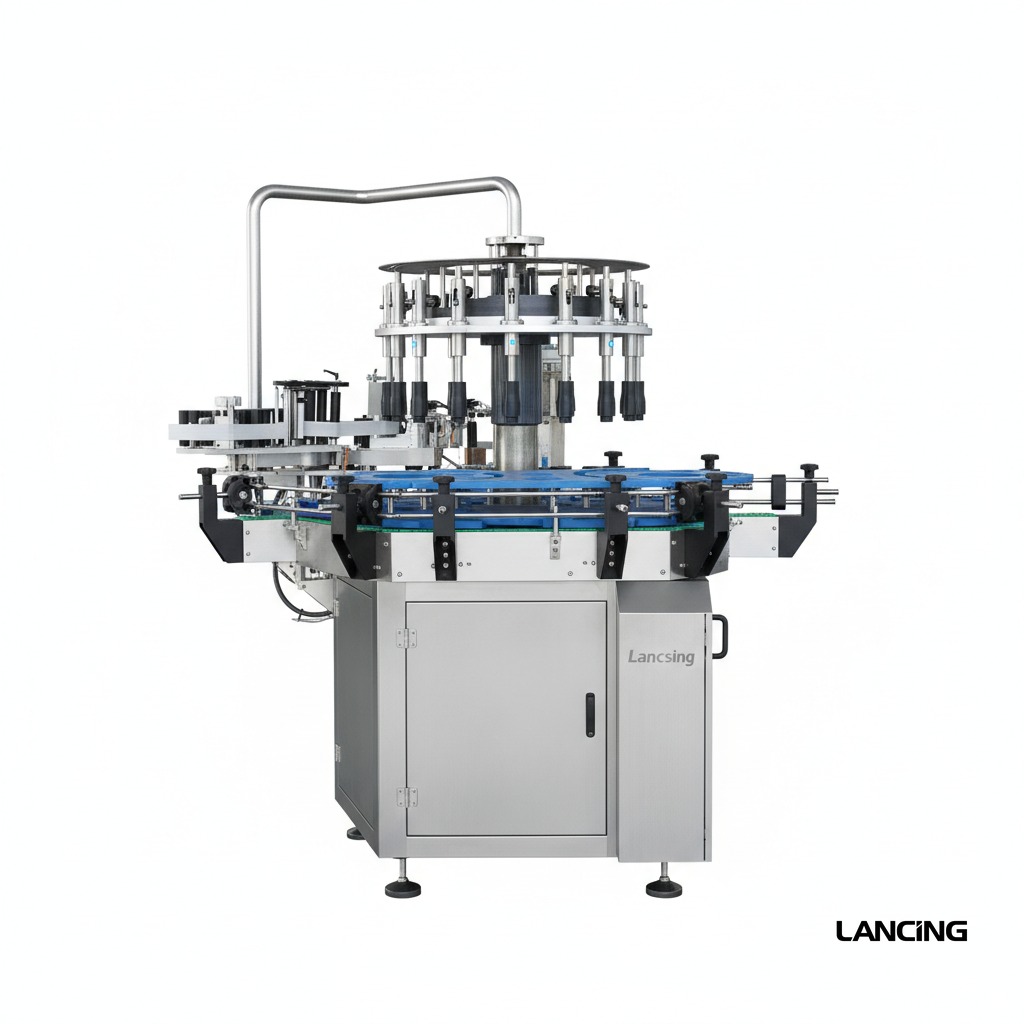

LU-CYGDP6 Automatic Round Bottle Label Applicator

This automatic labeling machine is a type of industrial machinery used to apply self-adhesive labels to a variety of cylindrical containers such as plastic bottles, glass bottles, and metal cans. This series of labeling machines is versatile and can be used for both single side and double side labeling of self-adhesive material labels. The machine works by automatically feeding the containers through a conveyor belt system, where they are positioned for labeling. The self-adhesive labels are then accurately applied to the containers, either on one side or both sides, depending on the requirements. These machines are designed to be efficient and reliable, with high accuracy and speed. They are widely used in industries such as food and beverage, pharmaceuticals, cosmetics, and more. With the ability to handle a wide range of container sizes and shapes, they offer a flexible solution for labeling needs. Whatever your packaging needs are, you can rely on Lancing UK.

  • Throughput: 15,000–18,000 bottles/hour
  • Format range: Formats adjustable (bottle/closure dependent)
  • Utilities: 3-phase 380V, 50Hz, 12kW

Specifications

Reference details

ModelLU-CYGDP6
Power Supply3-phase 380V, 50Hz, 12kW
Air Supply≥ 0.6 kg/cm²
Working Speed15,000–18,000 bottles/hour
Conveyor Speed0–30min, can be adjusted freely
Labeling Accuracy±1mm
Required Size of LabelsMax Width: 200mm / Max Length: 280mm
Required Size of Label RollsInner Diameter: 76mm / Outer Diameter: < 400mm
Applicable BottlesMax Diameter: 130mm / Height: 120–400mm
Gluing Temperature120–160°C
Machine Size(L)3300mm × (W)1400mm × (H)2140mm
Machine WeightApprox. 2,500KG

Quick answers

Buyer and engineer notes

What is LU-CYGDP6 Automatic Round Bottle Label Applicator used for?

This automatic labeling machine is a type of industrial machinery used to apply self-adhesive labels to a variety of cylindrical containers such as plastic bottles, glass bottles, and metal cans. This series of labeling machines is versatile and can be used for both single side and double side labeling of self-adhesive material labels.

What output can LU-CYGDP6 Automatic Round Bottle Label Applicator achieve?

This page lists output at 15,000–18,000 bottles/hour. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.

What utilities or site requirements should I plan for?

Power: 3-phase 380V, 50Hz, 12kW; Footprint / size: Max Width: 200mm / Max Length: 280mm

Can Lancing UK help match this machine to my product and container?

Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
