Perfume & Essential Oil Liquid Filling Machine
The Lancing UK LU-DTZL500 Liquid Surface Position Filling Machine is designed for precise filling of low-viscosity liquids such as perfume, eye drops, a...
Product ranges
Compact Range
Perfume & Essential Oil Liquid Filling Machine
The Lancing UK LU-DTZL500 Liquid Surface Position Filling Machine is designed for precise filling of low-viscosity liquids such as perfume, eye drops, and essential oils. Equipped with four nozzles and adjustable liquid surface control, it ensures consistent fill levels across a wide range of bottle sizes. With a compact desktop design and compatibility with automatic capping and labeling systems, it’s ideal for streamlined, automated production in cosmetic, pharmaceutical, and essential oil industries.
- Throughput: 20–40 bottles/min (4 nozzles, depends on bottle & liquid)
- Format range: 5–500ml
- Utilities: Approx. 80W
Gallery

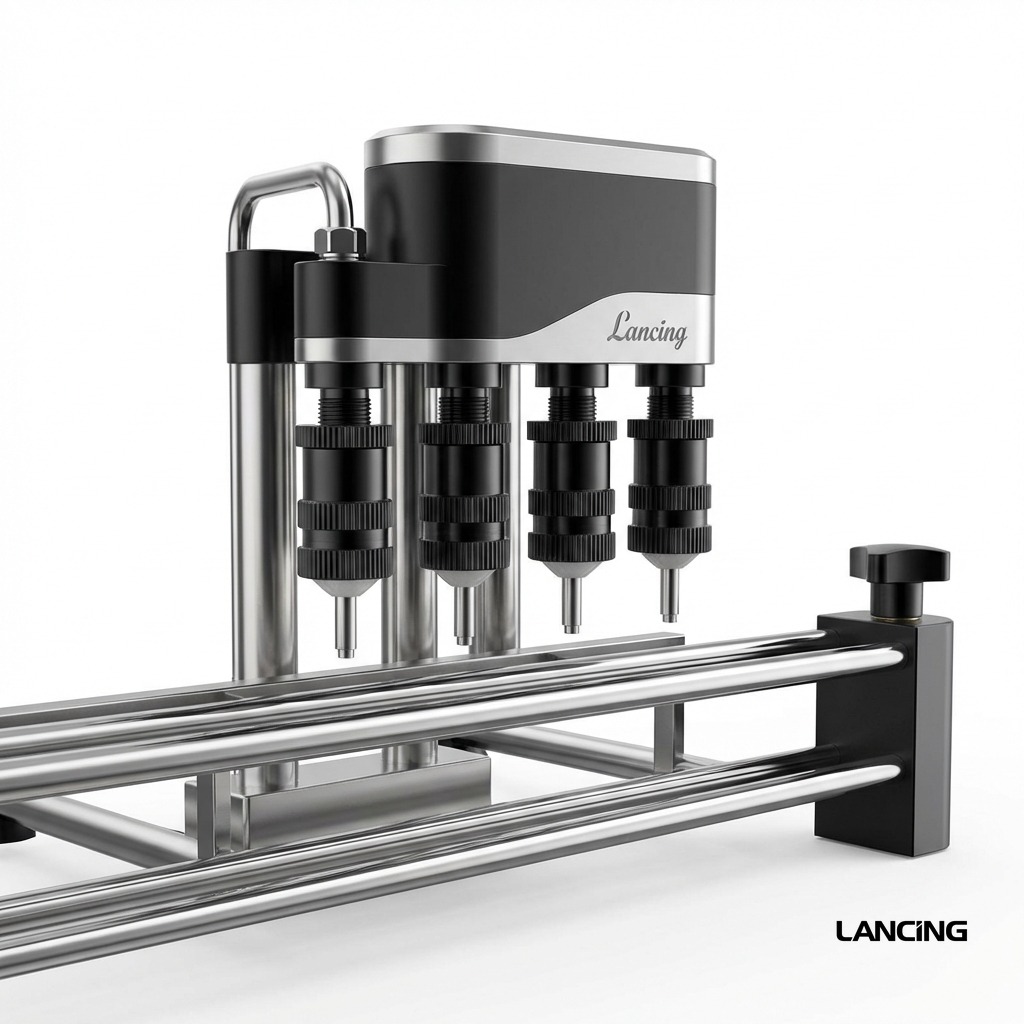

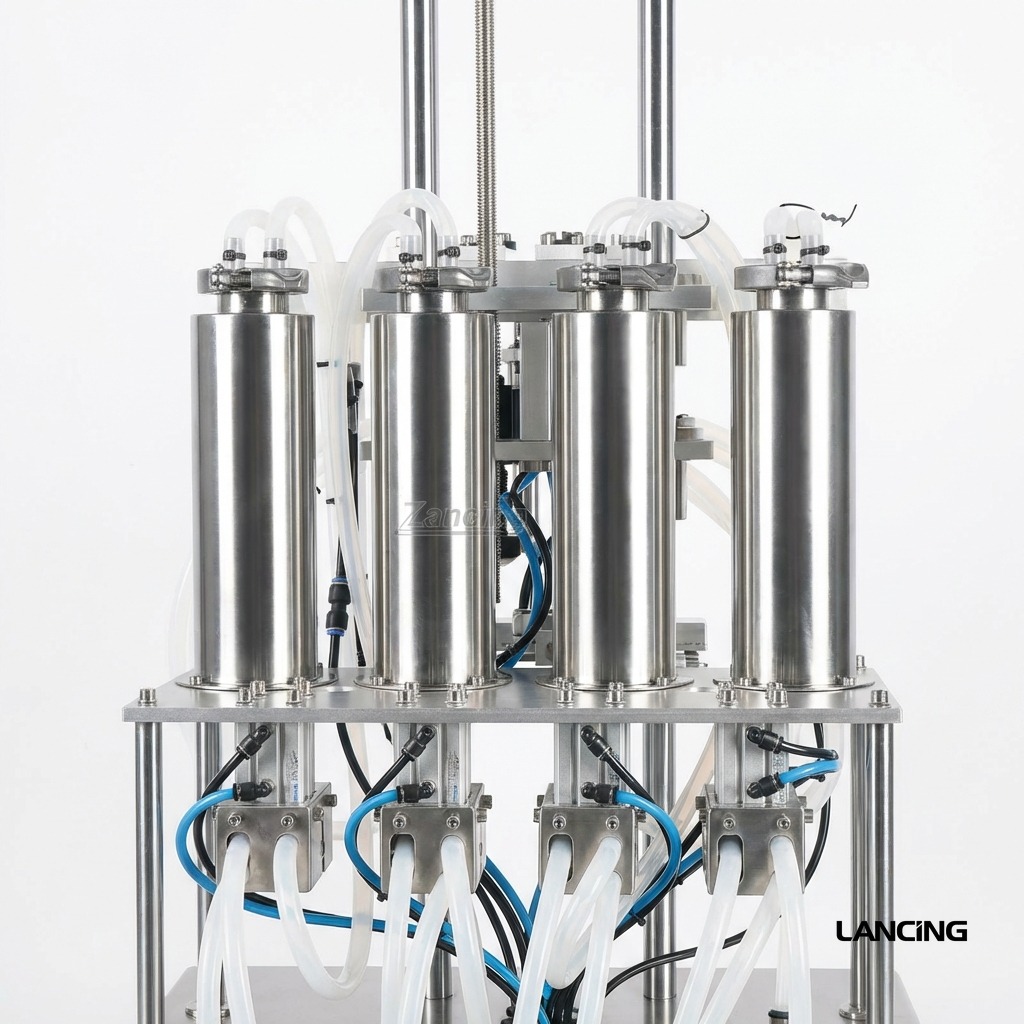

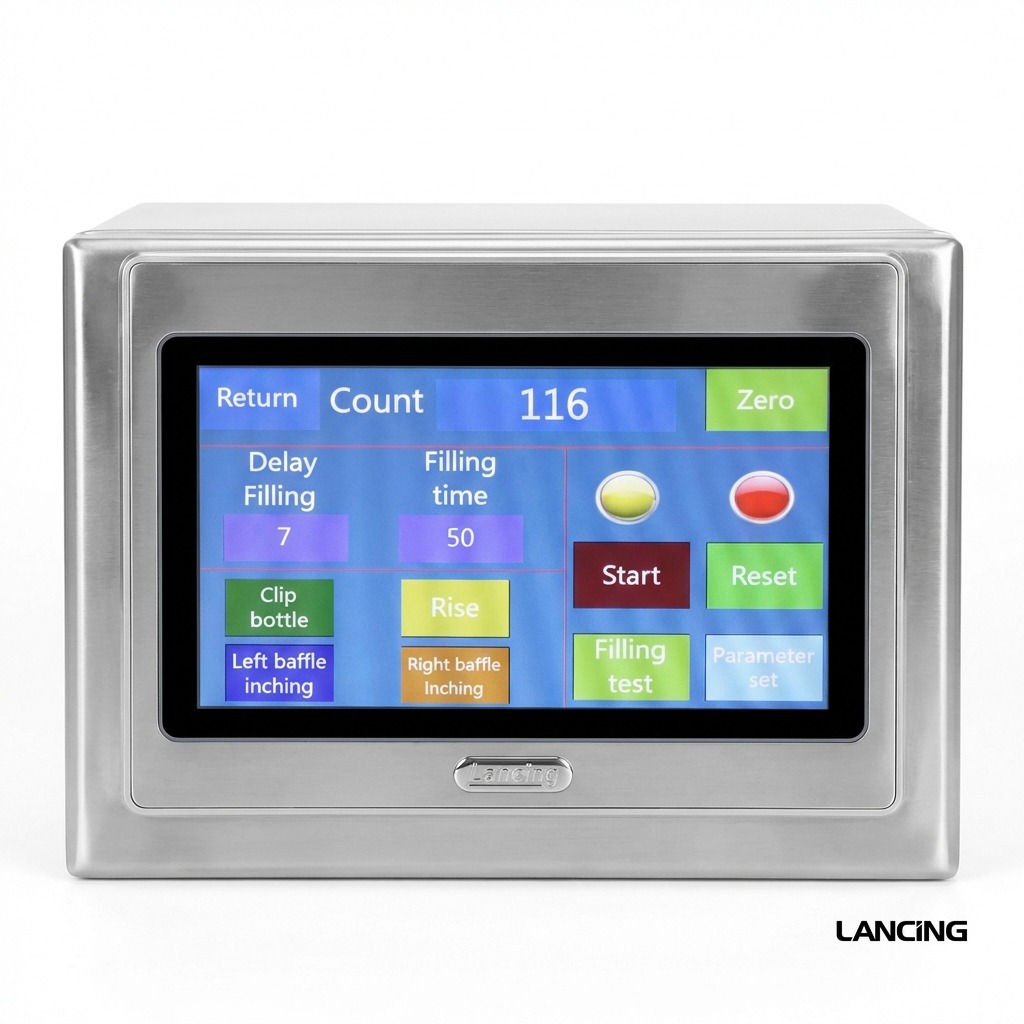

Machine views
Specifications
Reference details
| Machine Model | LU-DTZL500 |
|---|---|
| Power | Approx. 80W |
| Filling Range Approx. | 5–500ml |
| Filling Speed | 20–40 bottles/min (4 nozzles, depends on bottle & liquid) |
| Air Pressure Requirement | 0.4–0.8MPa |
| Applicable Bottle Height | <200mm |
| Filling Nozzle Diameter | 7mm |
| Bottle Mouth Diameter | <22mm |
| Minimum Applicable Bottle Diameter | 35 mm |
| Adjustable Liquid Surface Distance | 5–20mm |
| Suitable Bottle Diameter | <100mm |
| Machine Dimensions (L × W × H) Approx. | 1170 × 690 × 1180mm |
| Machine Weight Approx. | 71kg |
| Package Dimensions (L × W × H) Approx. | 1100 × 580 × 1090mm |
| Package Weight Approx. | 107kg |
Quick answers
Buyer and engineer notes
What is Perfume & Essential Oil Liquid Filling Machine used for?
The Lancing UK LU-DTZL500 Liquid Surface Position Filling Machine is designed for precise filling of low-viscosity liquids such as perfume, eye drops, and essential oils. Equipped with four nozzles and adjustable liquid surface control, it ensures consistent fill levels across a wide range of bottle sizes.
What output can Perfume & Essential Oil Liquid Filling Machine achieve?
This page lists output at 20–40 bottles/min (4 nozzles, depends on bottle & liquid). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Power: Approx. 80W; Air pressure: 0.4–0.8MPa; Footprint / size: 1170 × 690 × 1180mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
