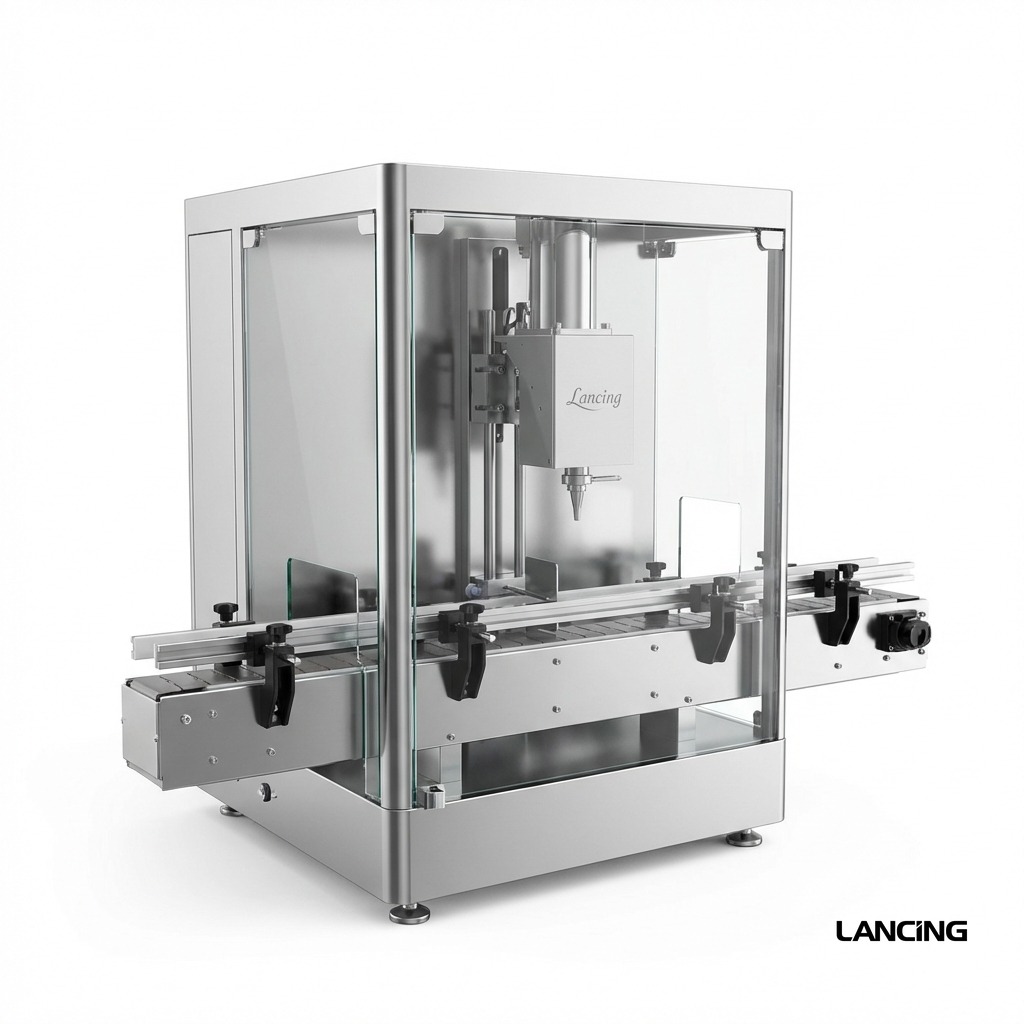

LU-DTMP4AL Magnetic Pump Liquid Filling Machine

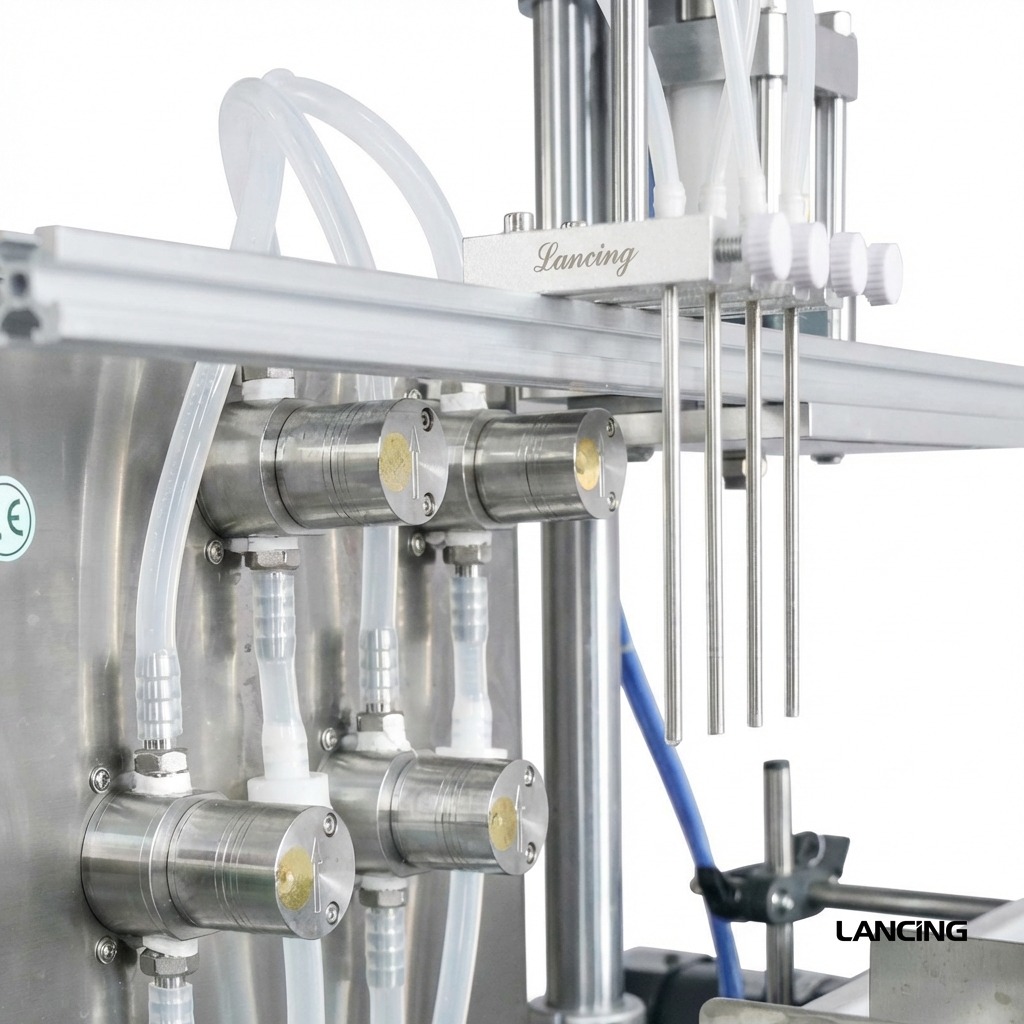

The Lancing UK LU-DTMP4AL is a tabletop automatic liquid filling machine equipped with magnetic pumps for high-precision filling. Designed for small bottles, it is ideal for foamy liquids, essential oils, perfumes, and beverages. The integrated chain conveyor offers strong load capacity and smooth transport, making it suitable for heavier products. This machine can be paired with tabletop capping and labeling machines to form a compact automated production line, significantly improving operational efficiency in cosmetic, pharmaceutical, and food industries. LU-DTMP4AL Liquid Filling Machine – Technical Specifications Parameter Specification Model LU-DTMP4AL Power Supply 110/220V, 50–60Hz, 300W Max Flow Rate 6L/min (based on water) Working Speed 20–30 bottles/min Air Pressure 0.3–0.4MPa Filling Accuracy 99% (for water) Nozzle Diameter 6mm / 8mm Count Range 1–99999 Filling Volume 3–1000ml Air Compressor Connector OD 8mm Conveyor Load ≤12kg Machine Size About 1100 × 580 × 1110mm Package Size About 1150 × 640 × 850mm Net Weight About 74kg Gross Weight About 91kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
