Compact Range

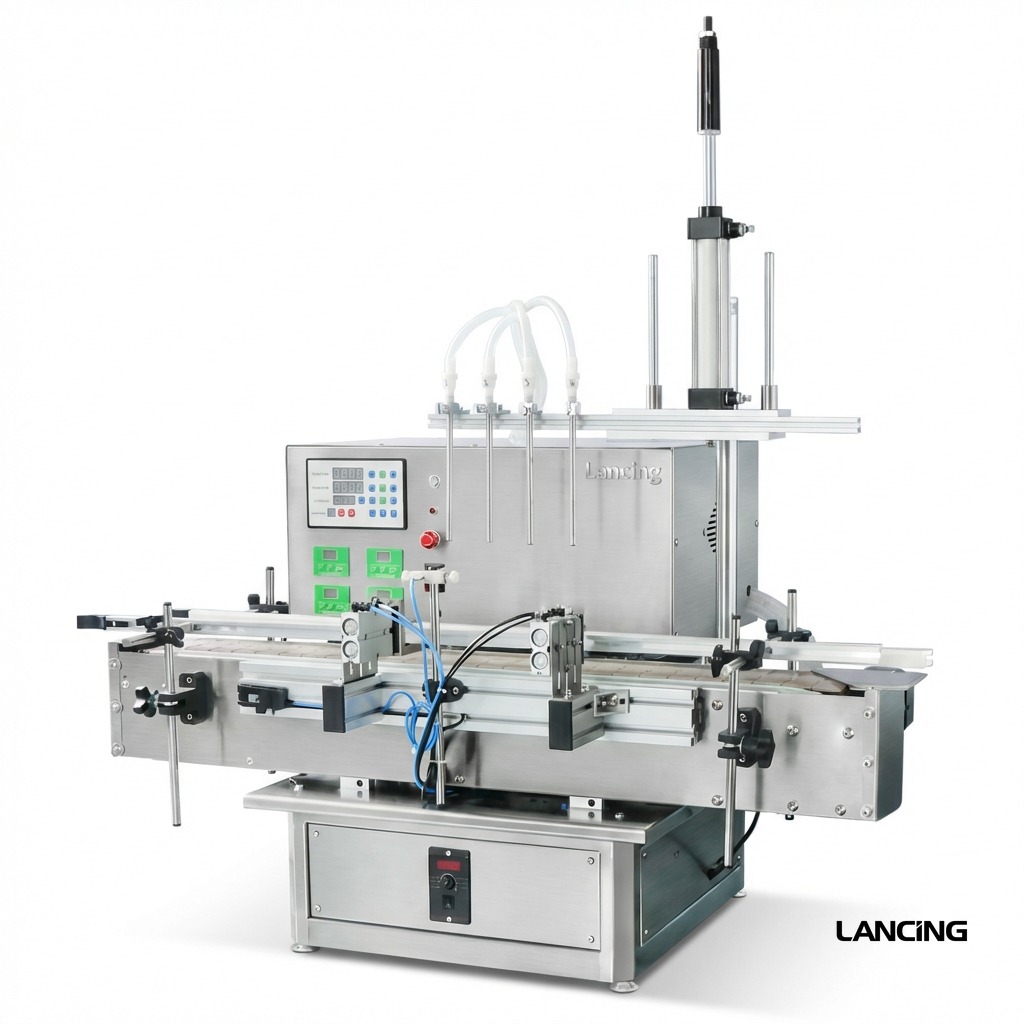

LU-DTTP4D Desktop Liquid Filling Machine

The LU-DTTP4D Liquid Filling Machine is a compact, high-efficiency desktop solution designed for precise filling of low-viscosity and foamy liquids. Equipped with four independently controlled peristaltic pump nozzles, it ensures hygienic operation by preventing liquid contact with the pump interior. An integrated electric eye enables intelligent bottle detection, while the durable conveyor belt guarantees stable transport. Ideal for small-scale automated production, this machine seamlessly integrates with desktop capping and labeling systems. Perfect for use in cosmetics, beverages, pharmaceuticals, and essential oil packaging. LU-DTTP4D Liquid Filling Machine – Technical Specification Item Specification Machine Model LU-DTTP4D Power Supply AC 110V/220V, 50–60Hz, 60W (per pump) Filling Range Up to 2500mL/min Max Flow (per nozzle) 2500mL/min (based on water) Filling Nozzles 4 (customizable based on user requirements) Working Speed 30–50 bottles/min (depends on bottle & liquid type) Air Pressure 0.3–0.4MPa Filling Accuracy ≤±1% (based on water) Filling Nozzle Diameter 6mm / 8mm Delay Range 0.01–999.9s Conveyor Belt Length 1m Air Compressor Connector Size OD 8mm Package Dimensions Approx. 1150mm × 770mm × 840mm Package Weight Approx. 110kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
