Semi Automatic

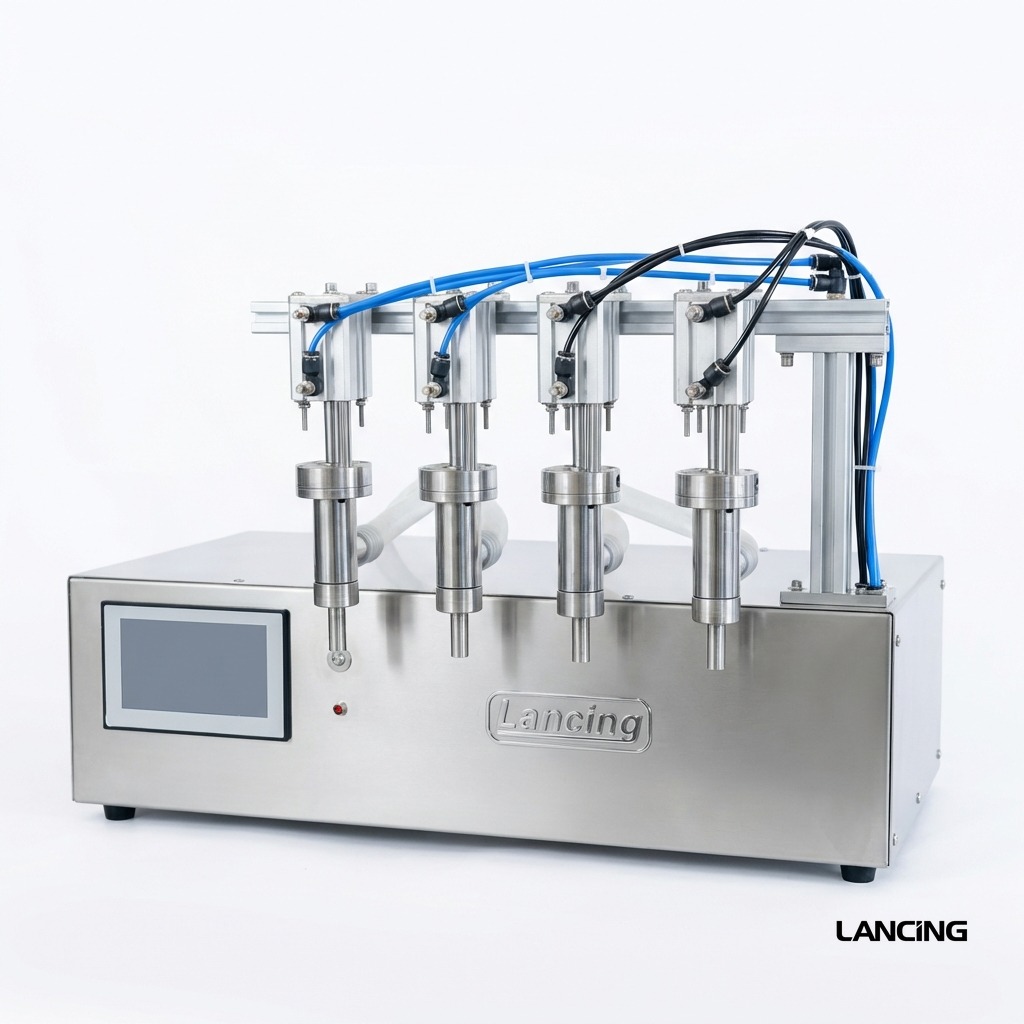

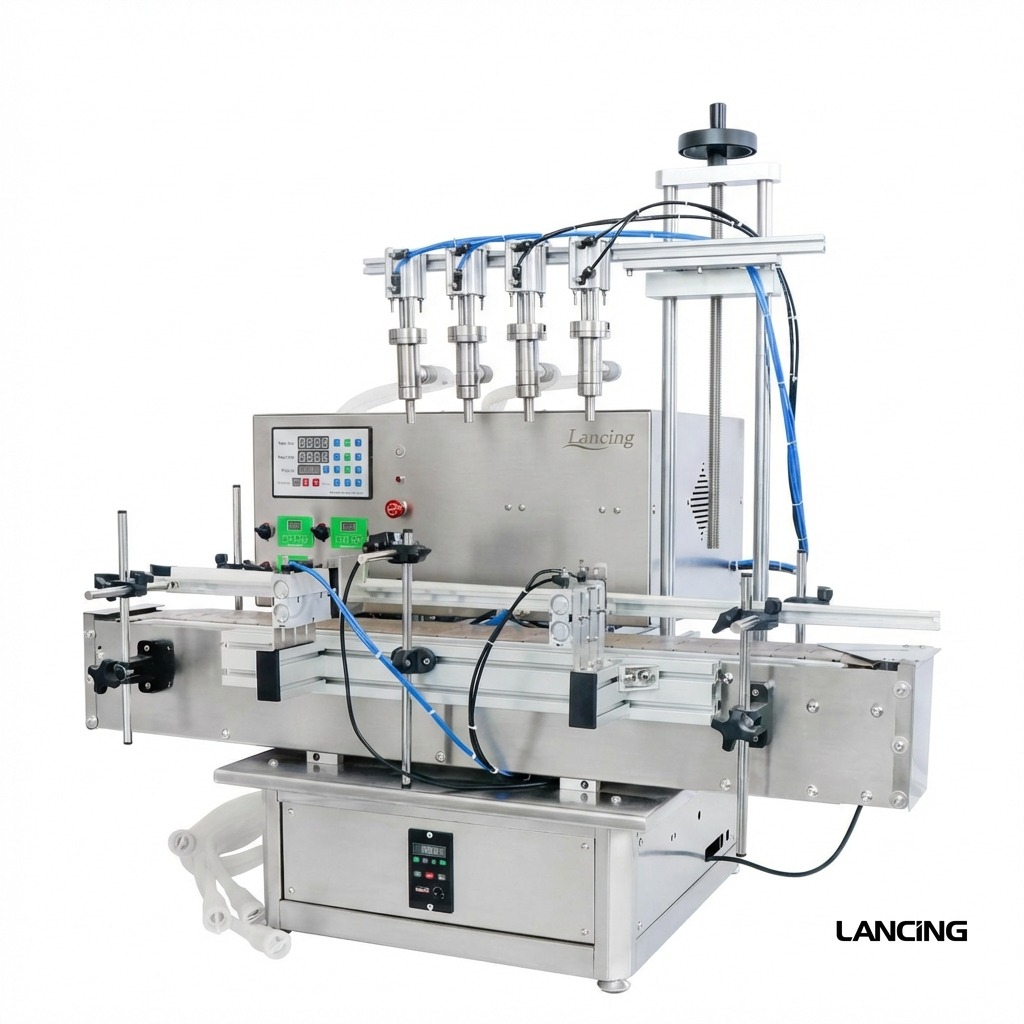

LU-DTPP4E 4-Nozzle Pneumatic Peristaltic Liquid Filling Machine

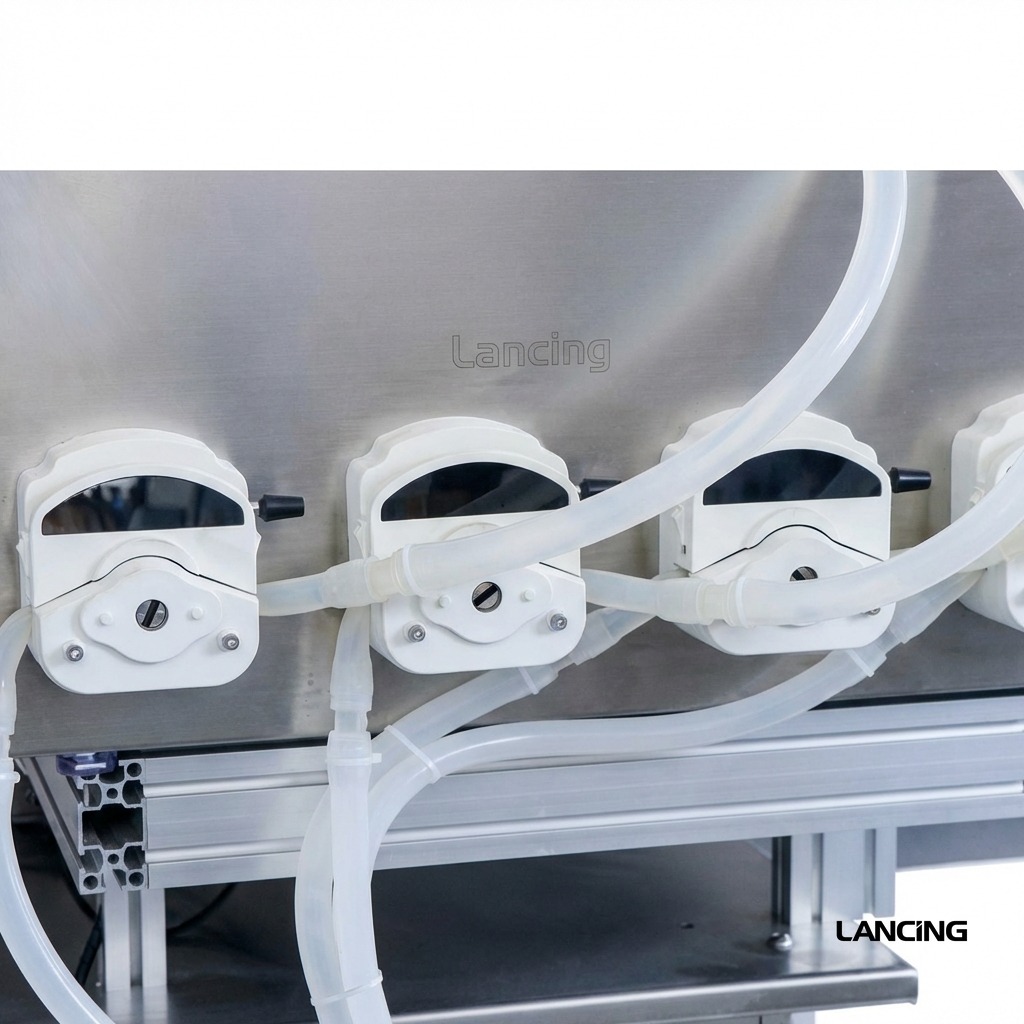

The Lancing UK LU-DTPP4E is a high-performance liquid filling machine equipped with four pneumatic peristaltic pump nozzles for precise, hygienic dispensing. Designed for low-viscosity liquids such as juice, essential oils, ink, and even gels, it supports customizable bottle heights and nozzle configurations. With a digital control panel, adjustable filling parameters, and compatibility with automatic capping and labeling machines, it enables seamless integration into full production lines. Ideal for cosmetic, beverage, and daily chemical industries, this machine delivers speed, accuracy, and automation in a compact footprint. Liquid Filling Machine Specifications – Model LU-DTPP4E Specification Details Model LU-DTPP4E Voltage AC 110V / 220V, 50–60Hz Power 60W per pump Recommended Filling Volume 10–1000 ml (≤100 ml recommended for 1 ml) Max Flow Rate 4000 ml/min per nozzle (based on water) Number of Filling Nozzles 4 (customizable) Working Speed 30–50 bottles/min (depends on bottle & liquid) Air Pressure 0.3–0.4 MPa Filling Accuracy ±1% (for water) Filling Range 0.1–999.9 ml Delay Range 0.01–999.9 s Belt Length 1.0 m Air Compressor Connector OD 8 mm Suitable Bottle Height <220 mm (customizable, max 300 mm) Machine Size (L×W×H) Approx. 1100 × 580 × 1070 mm Conveyor Size (L×W) Approx. 1100 × 115 mm

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
