Pro Range

LU-FKR4T Heat Sealing Machine

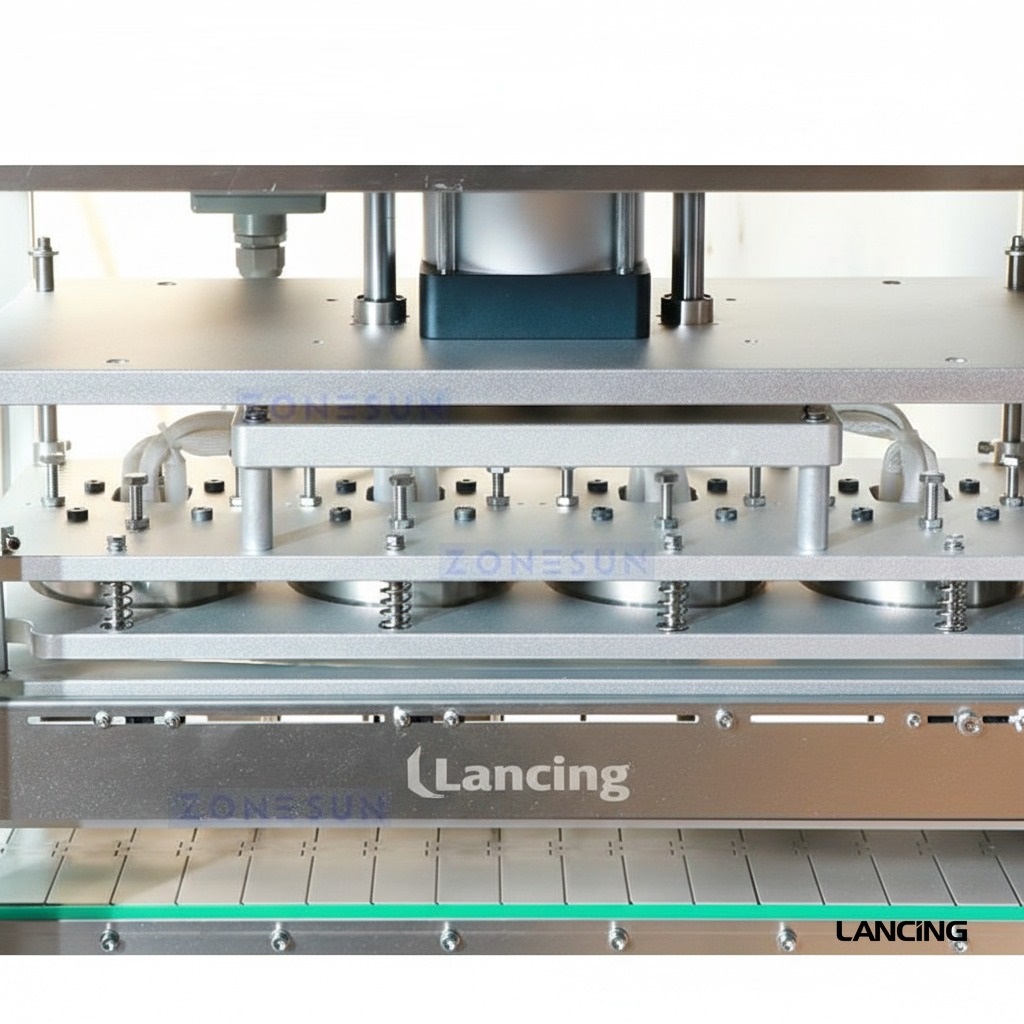

LU-FKR4T is a high-efficiency automatic heat sealing machine designed for secure bottle packaging. Equipped with four sealing heads, it uses a top film roll and bottom conveyor to streamline the sealing process. An electric eye and stopper ensure precise bottle positioning, while the heated heads apply consistent pressure for airtight seals. Ideal for PP, PE, PET, PS, and foil films, this system boosts productivity and packaging integrity across food, chemical, and cosmetic industries. Technical Specifications – LU-FKR4T Four-Head Sealing Machine Parameter Specification Model LU-FKR4T Power Supply 110/220V, 50/60Hz Power Consumption 0.5–1 kW Sealing Heads 4 heads Sealing Speed 1200–1600 bottles per hour Working Speed Adjustable Heating Temperature 0–300°C Sealing Diameter 50–250 mm (round or square, customizable) Film Size Requirement 2–3 mm larger than bottle mouth Compatible Film Material PP / PE / PET / PS / Aluminum foil Air Pressure Requirement 4–8 kg/cm² Machine Dimensions Approx. 2400 × 870 × 1700 mm Package Dimensions Approx. 2450 × 830 × 2040 mm Package Weight Approx. 450 kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
