Diaphragm Pump Water Oil Liquid Filling Machine
1.This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine...
Product ranges
Pro Range

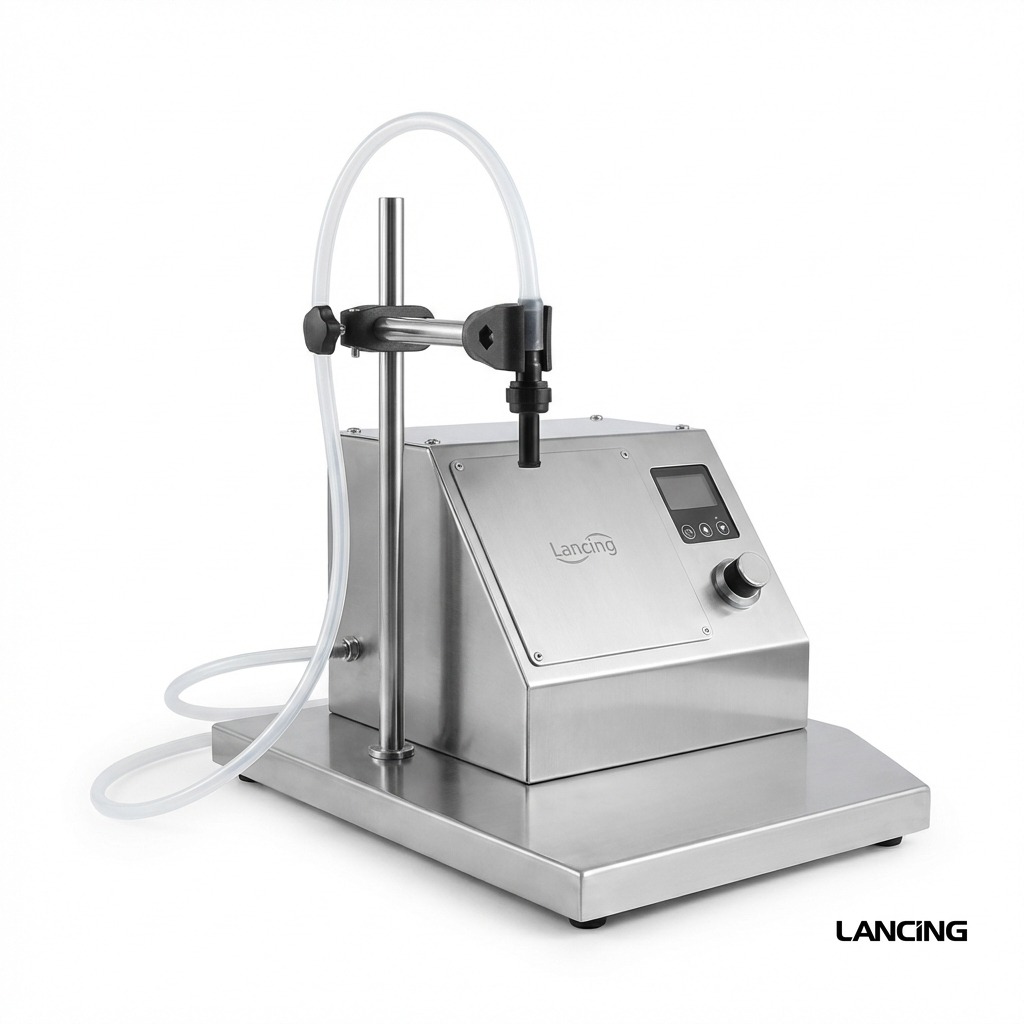

Diaphragm Pump Water Oil Liquid Filling Machine
1.This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the nozzle. It can be used to fill many different types of clear thin liquid,including water, olive oil, fuel, drinks, vinegar, milk etc. 2.Liquid suitable: low viscous liquid like water, wine, solutions etc. Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles. ATTENTION 1. Different liquid needs to choose different material of tube. The tube provided by us is silicone tube. 2.We will test all of the filling machine before send out , so it’s normal that the machine pump and tube with water inside when you receive it.
- Throughput: Configurable (confirm during quote)
- Format range: ≤500ml Maximum Flow Rate: 3.1L/min (water)
- Utilities: AC 220V / 110V, 50/60Hz, 40W
Gallery
Machine views
Specifications
Reference details
| Model | LU-GFK160 |
|---|---|
| Voltage Power | AC 220V / 110V, 50/60Hz, 40W |
| Recommended Filling Range | ≤500ml Maximum Flow Rate: 3.1L/min (water) |
| Filling Nozzle Diameter | Φ8mm |
| Maximum Suction Distance | 2m Filling Accuracy: ± ≤0.5% |
| Anti-Dripping Function | Included |
| Power-Off Memory Function | Included |
| Compatible Tubing | Model 17# (Inner Diameter: 6.4mm, Wall Thickness: 1.6mm) |
| Packing Size | 325 × 275 × 180 mm |
| Gross Weight | 2.75kg |
Quick answers
Buyer and engineer notes
What is Diaphragm Pump Water Oil Liquid Filling Machine used for?
1.This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean.
What output can Diaphragm Pump Water Oil Liquid Filling Machine achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Voltage: AC 220V / 110V, 50/60Hz, 40W; Power: AC 220V / 110V, 50/60Hz, 40W; Footprint / size: 325 × 275 × 180 mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
