LU-GPSV1 Servo Gear Pump Filling Machine

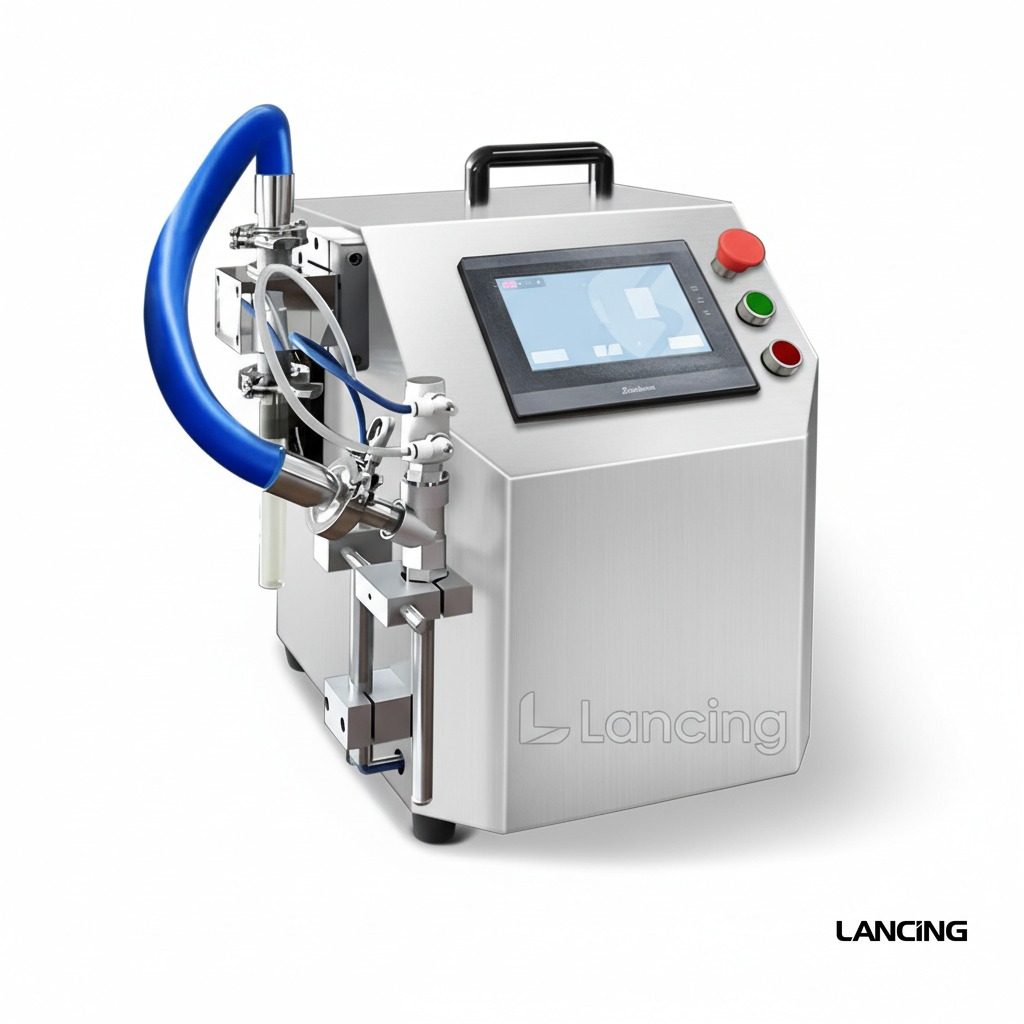

This semi-automatic filling machine features a handheld nozzle designed like a fuel dispenser, enabling smooth, precise, and user-friendly operation. It is equipped with a servo-driven gear pump , ideal for filling a wide range of viscous and fluid materials —including creams, lotions, sauces, oils, and other flowable, particle-free liquids. Designed to handle both thick pastes and runny liquids, the machine supports large filling volumes and ensures consistent, accurate output. Its compact design saves space, making it a practical solution for small to medium-scale production in food, cosmetic, chemical, and household product industries. Note: Not suitable for materials containing solid particles.
- Throughput: Configurable (confirm during quote)
- Format range: Formats adjustable (bottle/closure dependent)
- Utilities: Site utilities to be confirmed
Gallery
Machine views
Specifications
Reference details
| Model | LU-GPSV1 Machine voltage: 110/220V 50-60HZ Filling range: 10-200ml / 200ml-3L / 3L-10L / 10-25L Filling pump: Gear Pump Filling nozzle: Regular Fixed Nozzle & Handheld Nozzle Suitable bottle size: Customizable Filling accuracy: ±1% Working capacity: 900-1000 BPH (based on 300ml) Machine casing: SUS304 |
|---|---|
| Gear pumps are commonly used for transferring | Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil) Fuels (e.g., diesel, heavy oil, light oil) Chemical liquids (e.g., resin, paint, additives) Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump Polymers and viscous materials (e.g., glue, bitumen) 👉 If you need a food-grade filling machine, feel free to contact us for customized solutions! |
| NOTE | Note: 110V machine needs to be connected to a transformer |
Quick answers
Buyer and engineer notes
What is LU-GPSV1 Servo Gear Pump Filling Machine used for?
This semi-automatic filling machine features a handheld nozzle designed like a fuel dispenser, enabling smooth, precise, and user-friendly operation. It is equipped with a servo-driven gear pump , ideal for filling a wide range of viscous and fluid materials —including creams, lotions, sauces, oils, and other flowable, particle-free liquids.
What output can LU-GPSV1 Servo Gear Pump Filling Machine achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Add “Voltage / Power / Air / Size” specs to show requirements here.
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
