LU-GPSV2 Servo Gear Pump Filling Machine
This state-of-the-art automatic filling machine utilizes servo-driven gear pumps to provide precise, consistent fills. Featuring 2 pneumatic filling hea...
Product ranges
Pro Range
LU-GPSV2 Servo Gear Pump Filling Machine

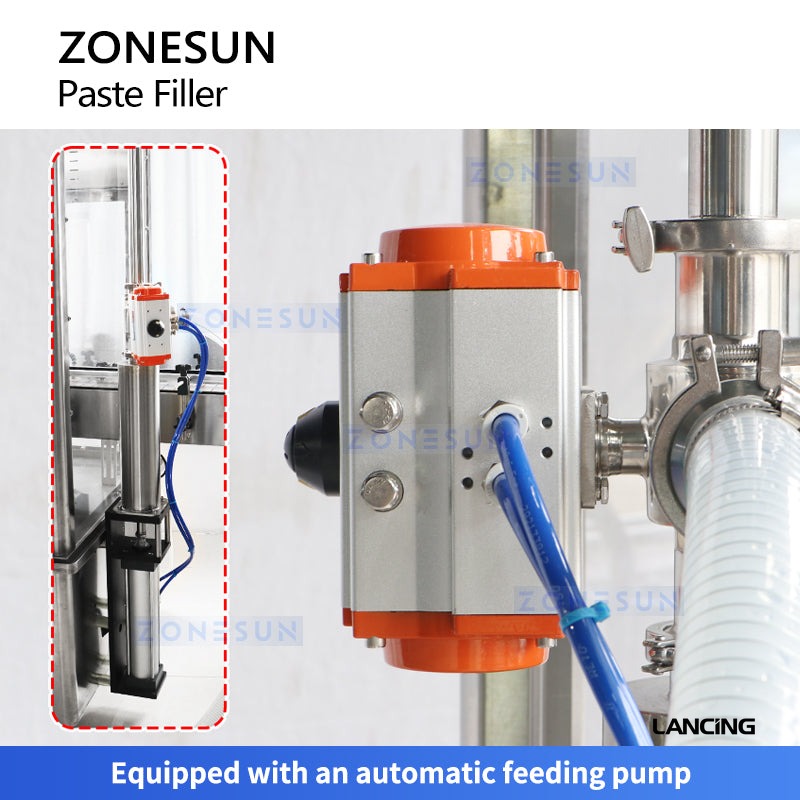

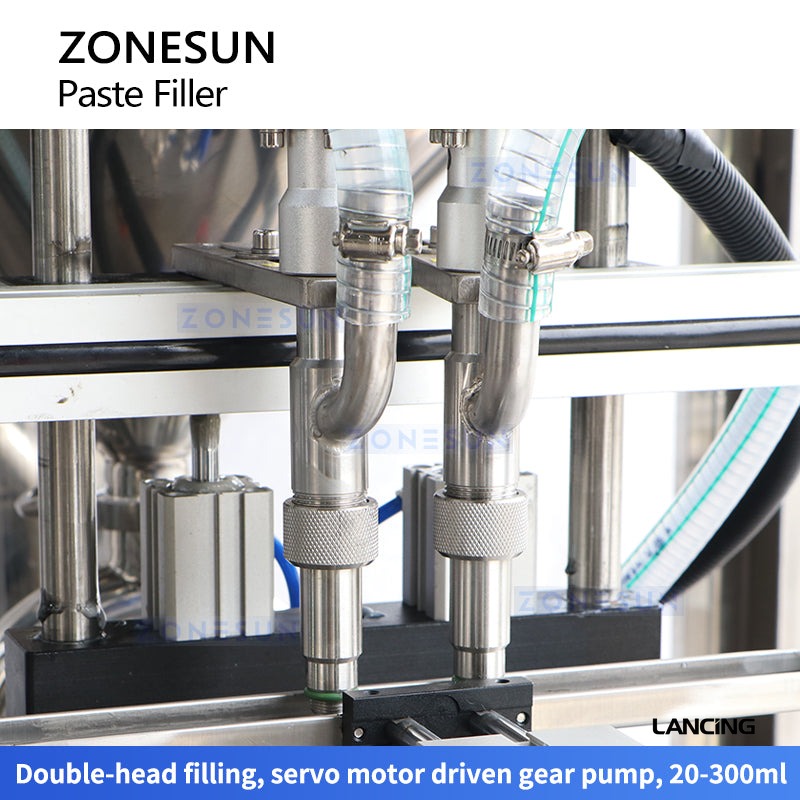

This state-of-the-art automatic filling machine utilizes servo-driven gear pumps to provide precise, consistent fills. Featuring 2 pneumatic filling heads, and an integrated hopper and feed pump, the machine automates the entire filling process. A level sensor ensures continuous, hands-free operation. The articulated sensor and dual-pin bottle indexing system provide exceptional bottle handling, while the dust cover protects the machine from contaminants. Engineered for reliability and efficiency, this filling system is an ideal solution for a wide range of liquid filling applications.
- Throughput: About 30–70BPM
- Format range: 20–300ml
- Utilities: 110/220V 50–60Hz 2KW
Gallery
Machine views
Specifications
Reference details
| Machine Model | LU-GPSV2 |
|---|---|
| Machine Voltage | 110/220V 50–60Hz 2KW |
| Filling Pump | Gear pump |
| Filling Range | 20–300ml |
| Filling Accuracy | ±1% |
| Filling Speed | About 30–70BPM |
| Machine Size | About 2000 × 1035 × 1800mm |
| Package Size | About 2080 × 1000 × 1980mm |
Quick answers
Buyer and engineer notes
What is LU-GPSV2 Servo Gear Pump Filling Machine used for?
This state-of-the-art automatic filling machine utilizes servo-driven gear pumps to provide precise, consistent fills. Featuring 2 pneumatic filling heads, and an integrated hopper and feed pump, the machine automates the entire filling process.
What output can LU-GPSV2 Servo Gear Pump Filling Machine achieve?
This page lists output at About 30–70BPM. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110/220V 50–60Hz 2KW; Footprint / size: About 2000 × 1035 × 1800mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
