LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine
The LU-GPW1 is a precision liquid filling machine designed for high-flow applications. Equipped with a gear pump, it delivers up to 36L/min and supports...
Product ranges
Pro Range
LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine
The LU-GPW1 is a precision liquid filling machine designed for high-flow applications. Equipped with a gear pump, it delivers up to 36L/min and supports weight-based filling for enhanced accuracy. Ideal for oils, fuels, chemicals, and food-grade liquids, it features anti-splash control for clean operation. Customization available for food-grade us Gear pumps are commonly used for transferring: Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil) Fuels (e.g., diesel, heavy oil, light oil) Chemical liquids (e.g., resin, paint, additives) Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump Polymers and viscous materials (e.g., glue, bitumen) 👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
- Throughput: Configurable (confirm during quote)
- Format range: 50g-50kg
- Utilities: AC110/220V 50-30Hz 200W
Gallery

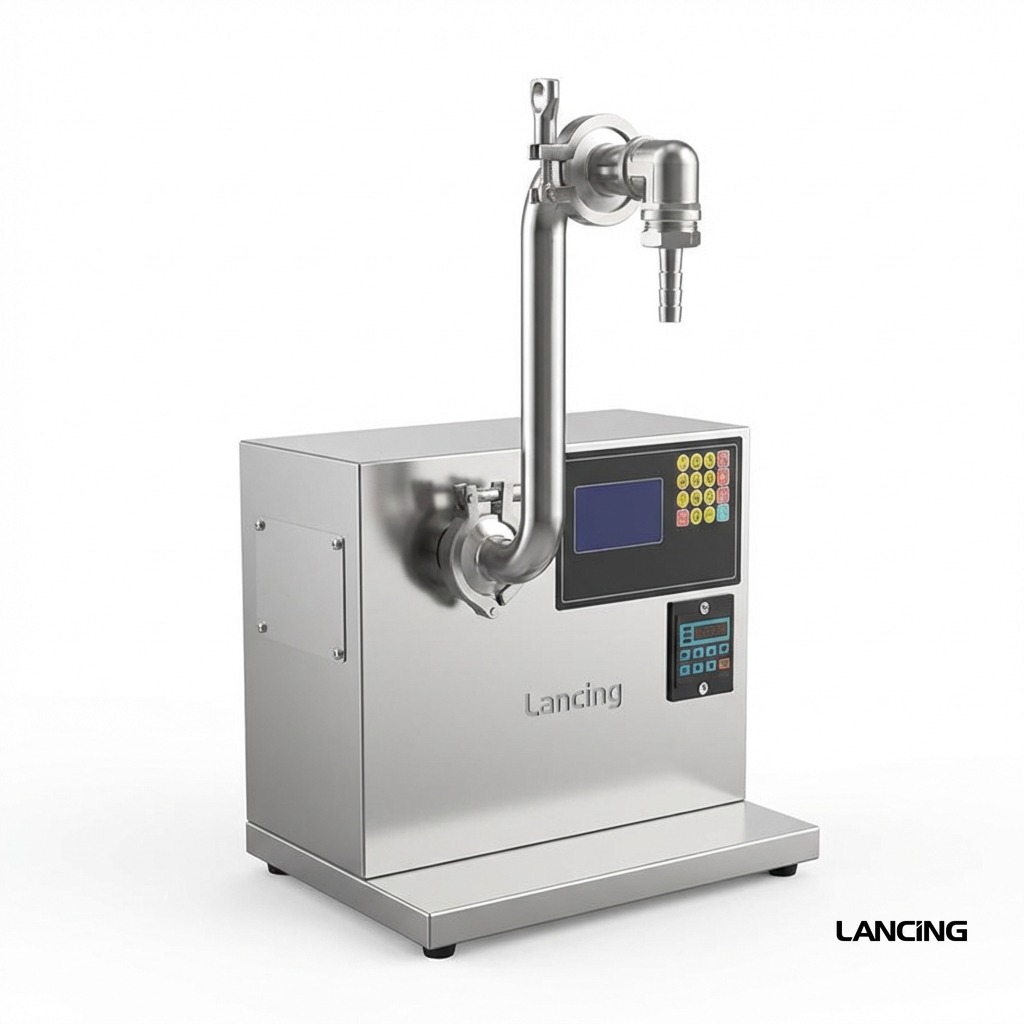

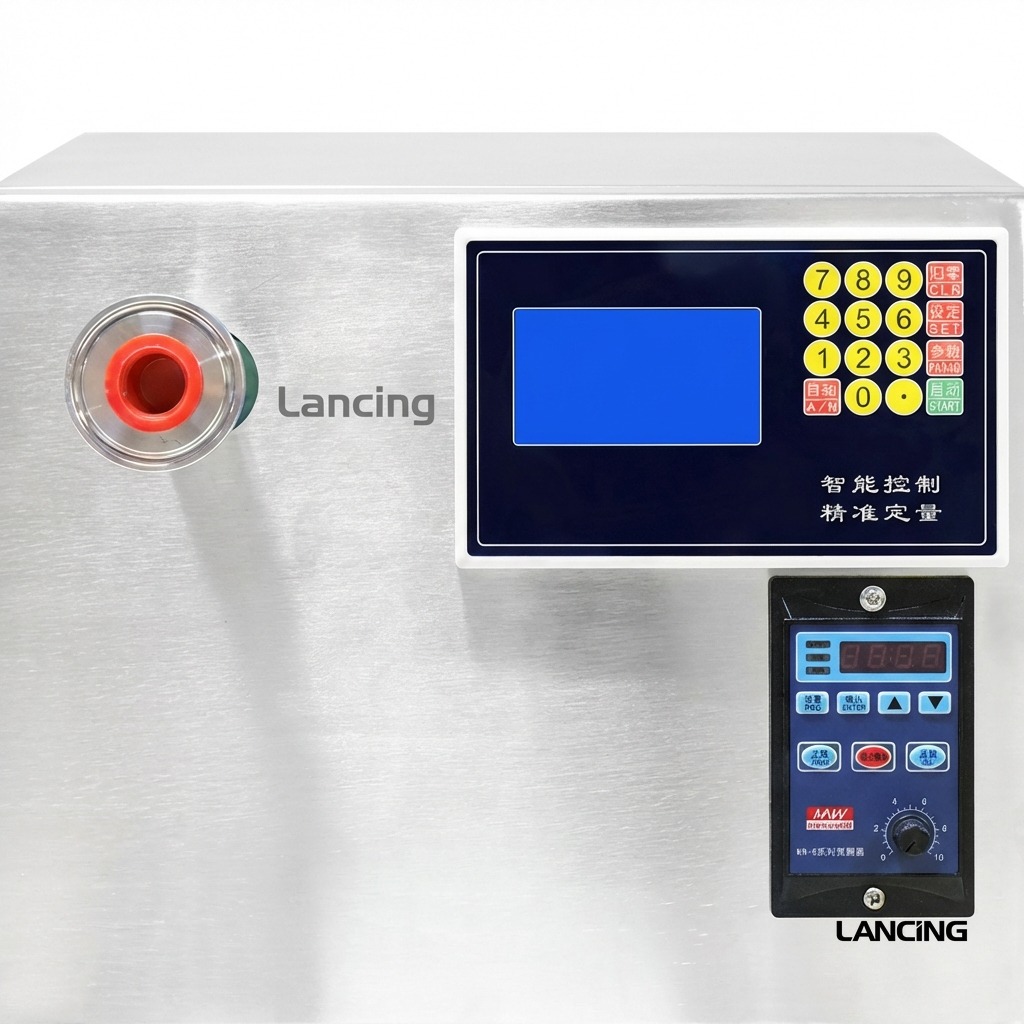

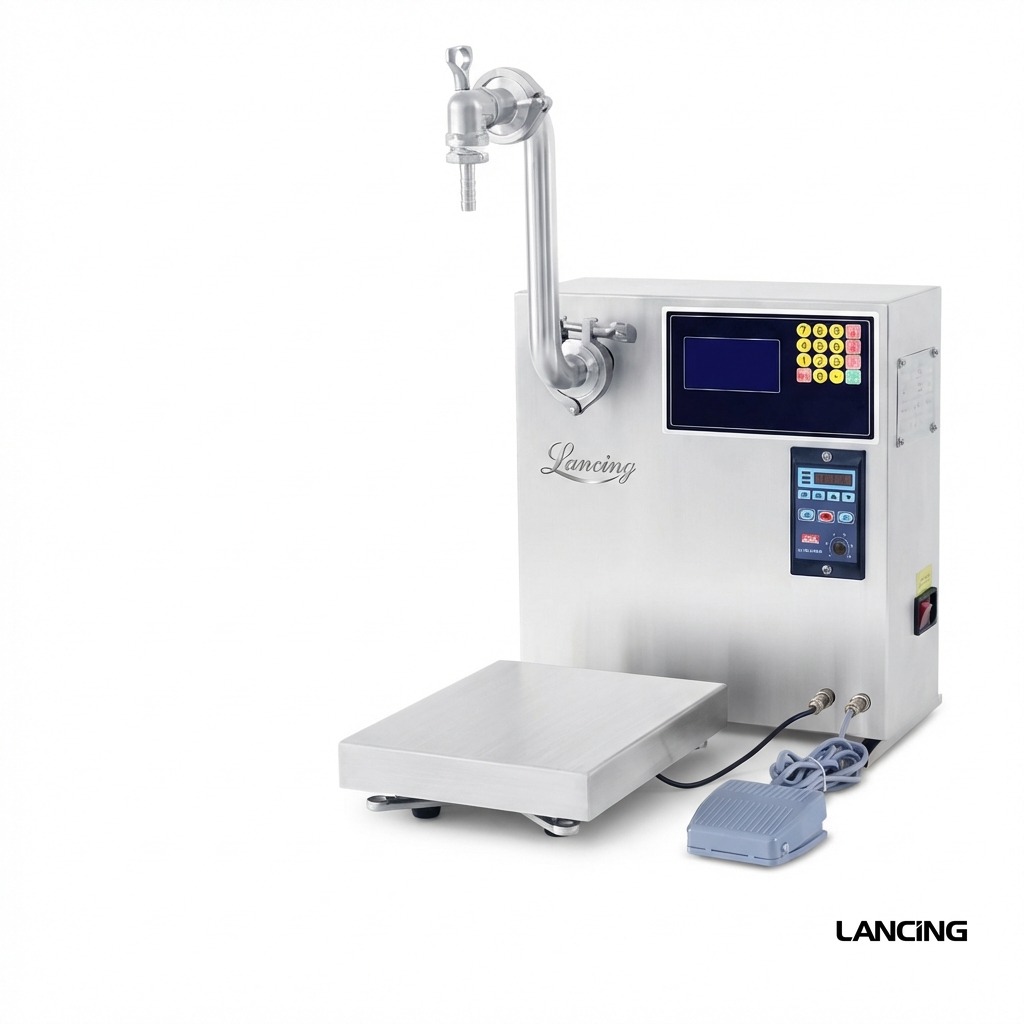

Machine views
Specifications
Reference details
| Machine Model | LU-GPW1 |
|---|---|
| Power supply | AC110/220V 50-30Hz 200W |
| Maximum flow rate | 36L/min |
| Weighing range | 50g-50kg |
| Filling pump | Gear Pump |
| Max bottle height | 370mm |
| Margin of error | 1-5g |
| Packaging size | About 330220360mm |
| Packaging weight | About 16kg |
Quick answers
Buyer and engineer notes
What is LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine used for?
The LU-GPW1 is a precision liquid filling machine designed for high-flow applications. Equipped with a gear pump, it delivers up to 36L/min and supports weight-based filling for enhanced accuracy.
What output can LU-GPW1 High Flow Gear Pump Liquid Weighing Filling Machine achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Power: AC110/220V 50-30Hz 200W; Footprint / size: About 330220360mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
