Semi Automatic

LU-GT1V Pneumatic Paste Liquid Filling Machine

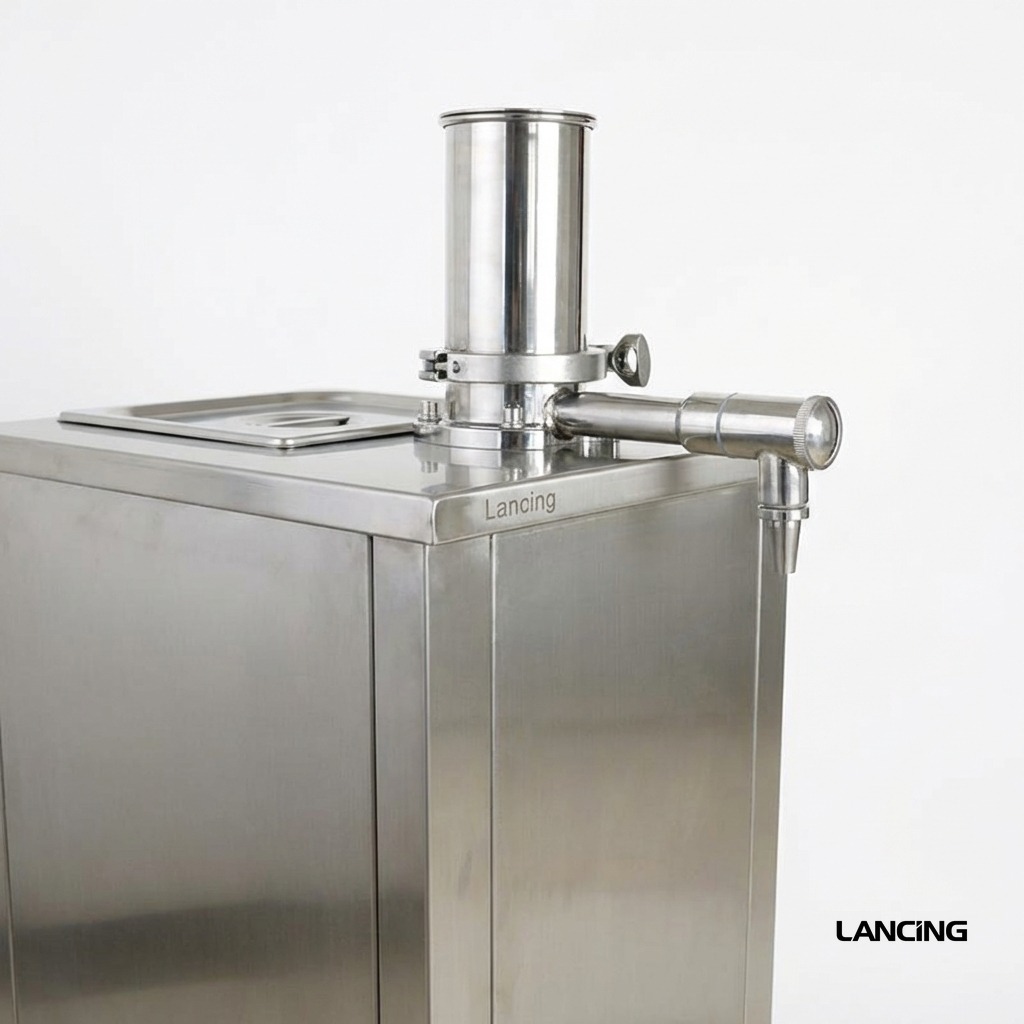

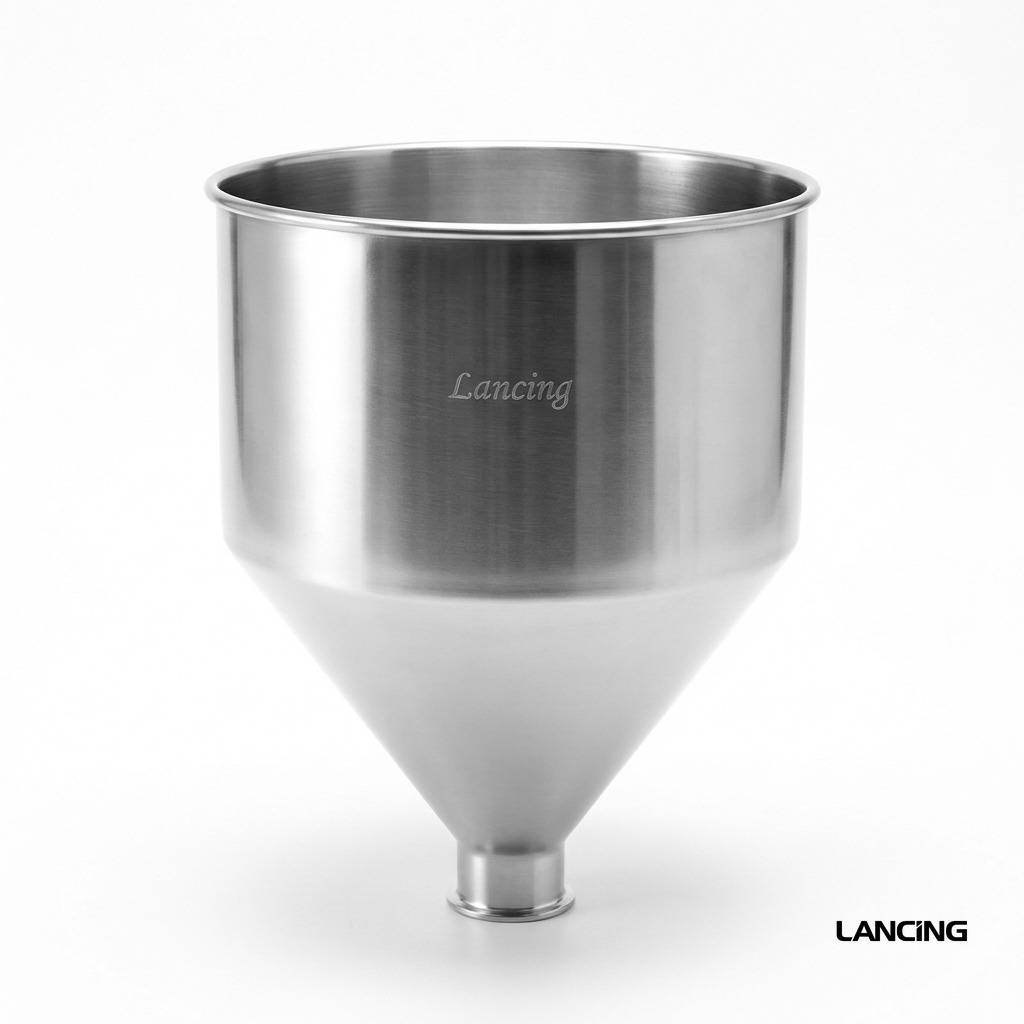

The Lancing UK LU-GT1V is a fully pneumatic filling machine designed for precise dispensing of paste and liquid products such as gel, alcohol, and detergent. With a 30L hopper and adjustable filling range from 5ml to 1000ml, it accommodates a wide variety of container sizes and viscosities. Operating at up to 25 bottles per minute, it’s ideal for daily chemical, beverage, and pharmaceutical industries. The machine features ±1% filling accuracy and requires an external air compressor (sold separately), making it a reliable solution for semi-automatic production environments. LU-GT1V Fully Pneumatic Paste/Liquid Filling Machine – Technical Specification Item Specification Machine Name Fully Pneumatic Paste/Liquid Filling Machine Machine Model LU-GT1V Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml Filling Speed Approx. 1–25 bottles/min (depends on bottle & material) Filling Nozzle Diameter OD 8mm Hopper Capacity 30L Filling Accuracy ±1% Air Pressure Requirement 0.4–0.6MPa Air Compressor Connector OD 8mm Machine Dimensions (L×W×H) 300mm × 320mm × 1555mm Machine Weight Approx. 32kg Package Dimensions 1595mm × 450mm × 460mm Package Weight Approx. 46kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
