LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine
This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine...
Product ranges
Semi Automatic
LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine

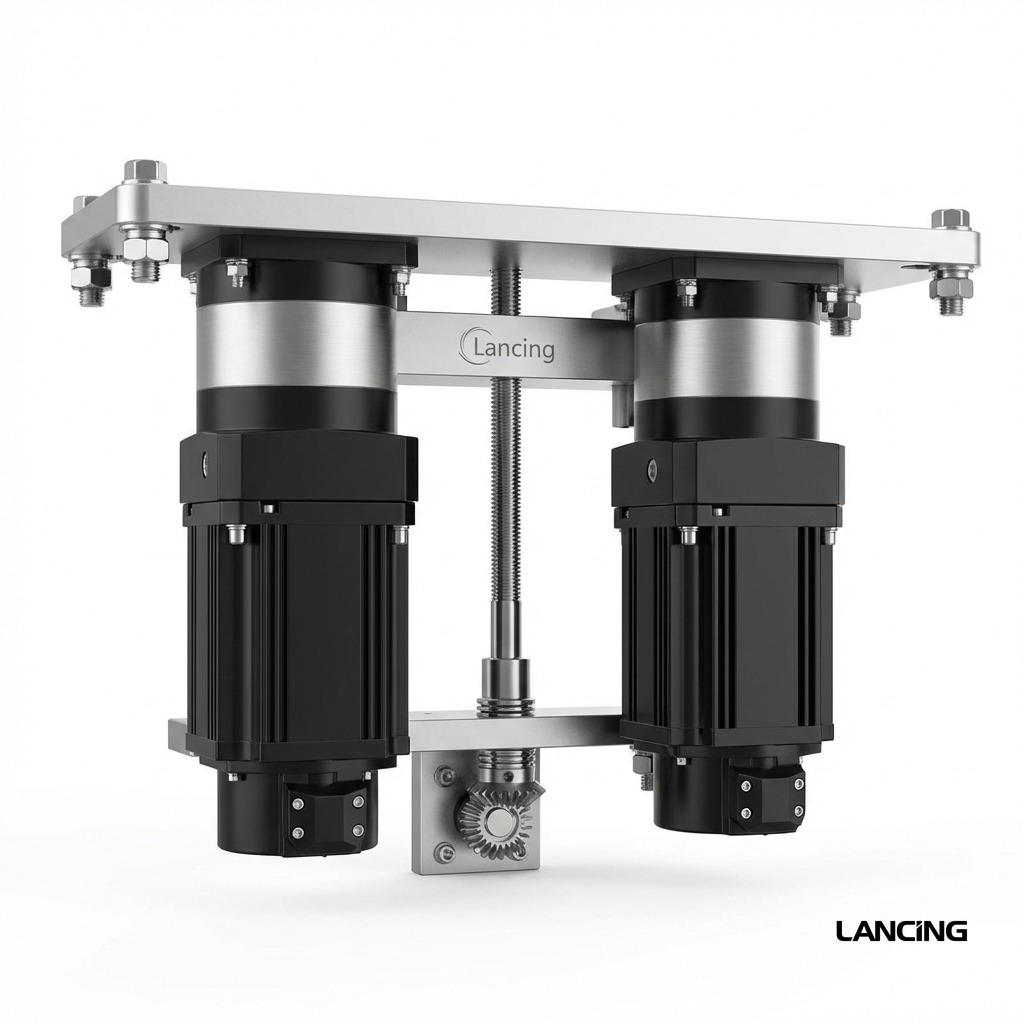

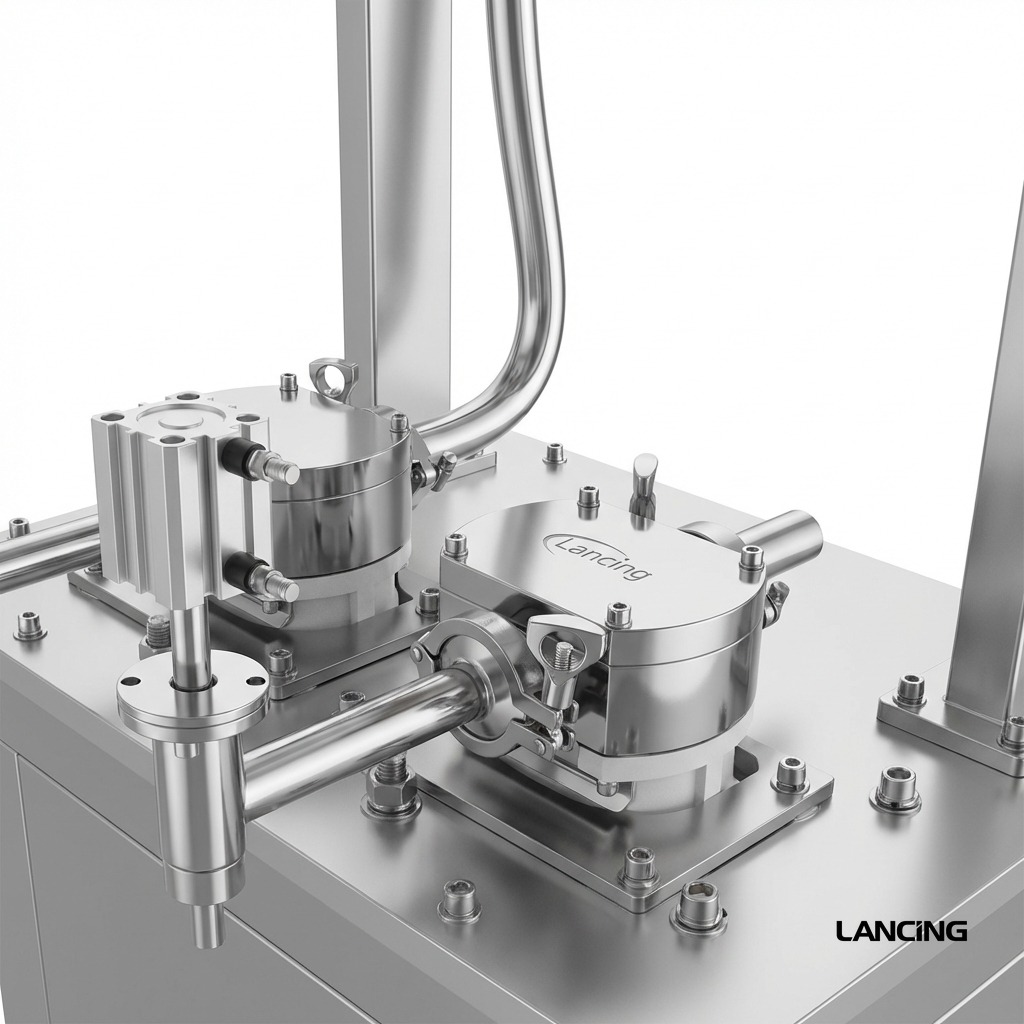

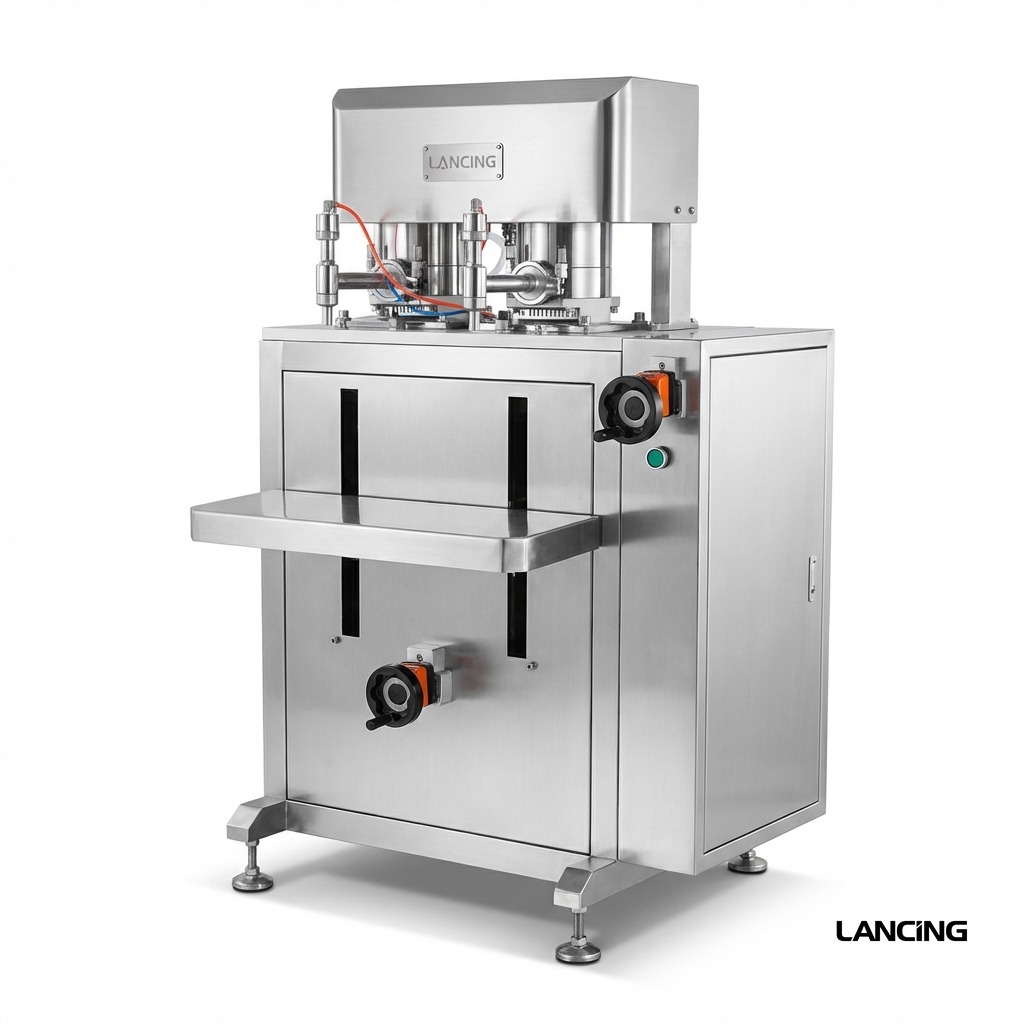

This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine has a 60L capacity hopper on the top with an air-powered filling nozzle. It features a vertical design with a lift table to place bottles for filling. The PLC control system with a touch screen interface allows for easy operation and precise filling adjustment. The machine also comes with a calibration function to ensure accurate filling every time. Whatever your packaging needs are, you can rely on Lancing UK.
- Throughput: About 30 bottles/min (1L)
- Format range: Formats adjustable (bottle/closure dependent)
- Utilities: 110/220V, 50-60HZ, 2kW
Gallery
Machine views
Specifications
Reference details
| Machine Model | LU-GTRP2 |
|---|---|
| Voltage | 110/220V, 50-60HZ, 2kW |
| Filling Pump | Rotor pump2 |
| Filling Drive | Servo motor2, 3000rpm |
| Recommend Filling Volume | 5-5000ml |
| Filling Accuracy | ≤ ±1% |
| Filling Nozzle Size | Φ8mm |
| Hopper Size | 600 360 400mm(L W H) / 60L |
| Working Speed | About 30 bottles/min (1L) |
| Machine Size | About 820 620 1700mm(L W H) |
| Machine Weight | About 128kg |
Quick answers
Buyer and engineer notes
What is LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine used for?
This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine has a 60L capacity hopper on the top with an air-powered filling nozzle.
What output can LU-GTRP2 Semi-automatic 2 Nozzles Rotor Pump Thick Liquid Filling Machine achieve?
This page lists output at About 30 bottles/min (1L). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110/220V, 50-60HZ, 2kW; Footprint / size: Φ8mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
