LU-GY1C Pneumatic Paste & Liquid Filling Machine
The LU-GY1C filling machine is designed for efficient, semi-automatic filling of liquids and pastes such as water, lotion, honey, and cream. Equipped wi...
Product ranges
Compact Range
LU-GY1C Pneumatic Paste & Liquid Filling Machine
The LU-GY1C filling machine is designed for efficient, semi-automatic filling of liquids and pastes such as water, lotion, honey, and cream. Equipped with a 2-meter conveyor belt, it integrates seamlessly with automatic capping and labeling machines, making it ideal for streamlined production lines in cosmetics, food, pharmaceuticals, and daily chemical industries.
- Throughput: 10–20 bottles/min
- Format range: 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml (optional)
- Utilities: 220V / 110V, 50/60Hz
Gallery

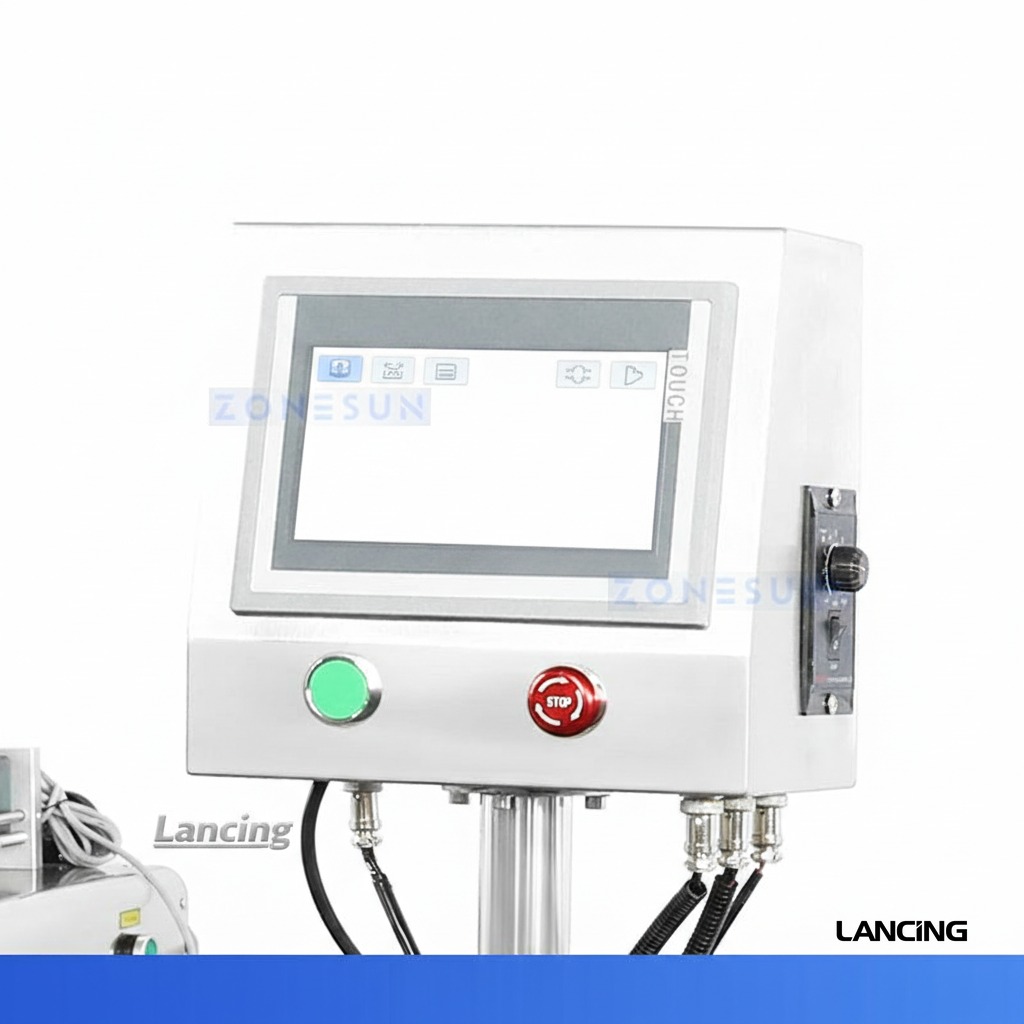

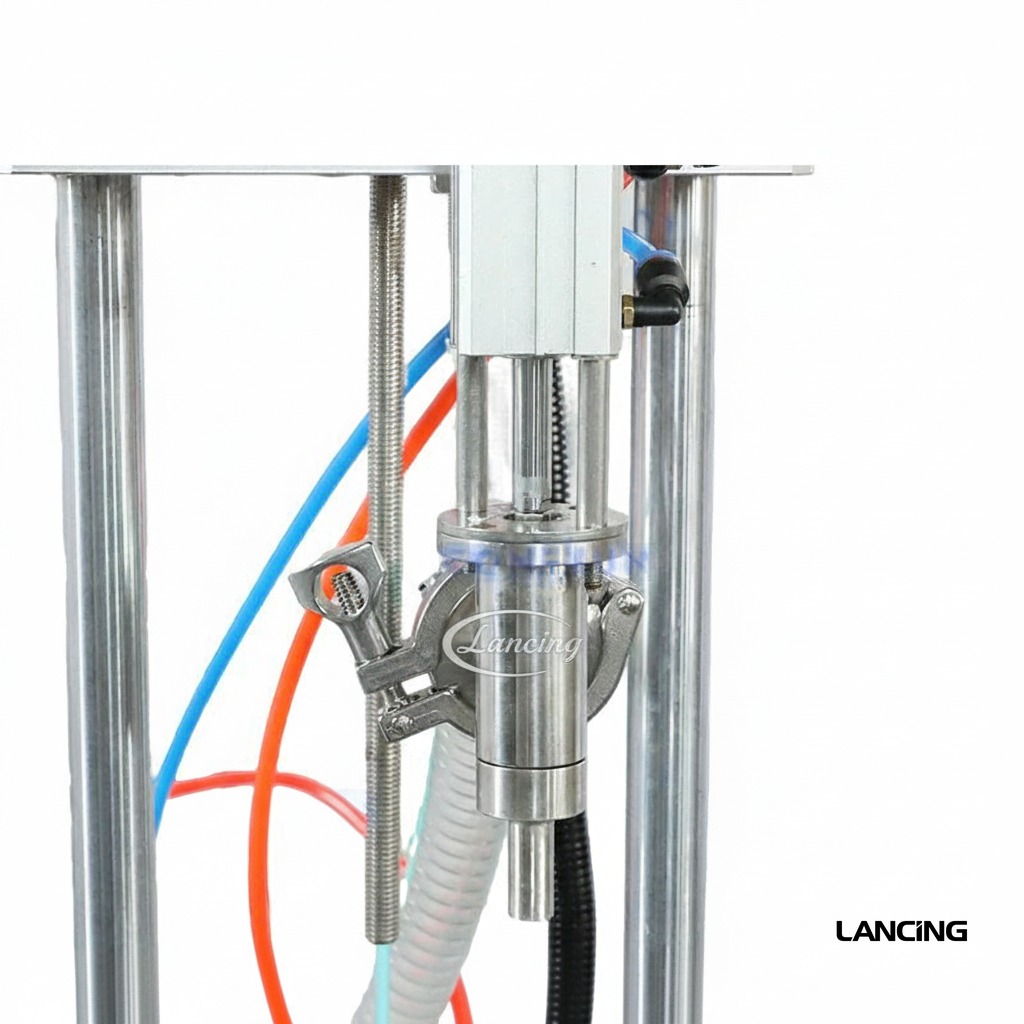

Machine views
Specifications
Reference details
| Model | LU-GY1C |
|---|---|
| Power Supply | 220V / 110V, 50/60Hz |
| Power | 130 W |
| Filling Accuracy | ≤ ±0.5% |
| Filling Speed | 10–20 bottles/min |
| Filling Volume Range | 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml / 500–3000 ml / 1000–5000 ml (optional) |
| Conveyor Size (L×W) | 2000 × 100 mm |
| Filling Nozzle Diameter | Φ10 mm |
| Required Air Pressure | 0.4–0.6 MPa |
| Air Connector Size | OD 8 mm |
| Air Consumption | ≥ 0.1 m³/min |
| Machine Weight | 24 kg (filling machine) + 4 kg (hopper) + 61 kg (conveyor) |
| Packing Weight | 30 kg (filling machine) + 5.5 kg (hopper) + 89 kg (conveyor) |
| Packing Size | 113 × 35 × 30.5 cm (filling machine) / 46.5 × 47 × 52 cm (hopper) / 210 × 62 × 53 cm (conveyor) |
Quick answers
Buyer and engineer notes
What is LU-GY1C Pneumatic Paste & Liquid Filling Machine used for?
The LU-GY1C filling machine is designed for efficient, semi-automatic filling of liquids and pastes such as water, lotion, honey, and cream. Equipped with a 2-meter conveyor belt, it integrates seamlessly with automatic capping and labeling machines, making it ideal for streamlined production lines in cosmetics, food, pharmaceuticals, and daily chemical industries.
What output can LU-GY1C Pneumatic Paste & Liquid Filling Machine achieve?
This page lists output at 10–20 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Power: 220V / 110V, 50/60Hz; Air pressure: 0.4–0.6 MPa; Air consumption: ≥ 0.1 m³/min
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
