LU-GYCR4A Automatic Corrosive Acids Disinfectants Liquid Filling Machine

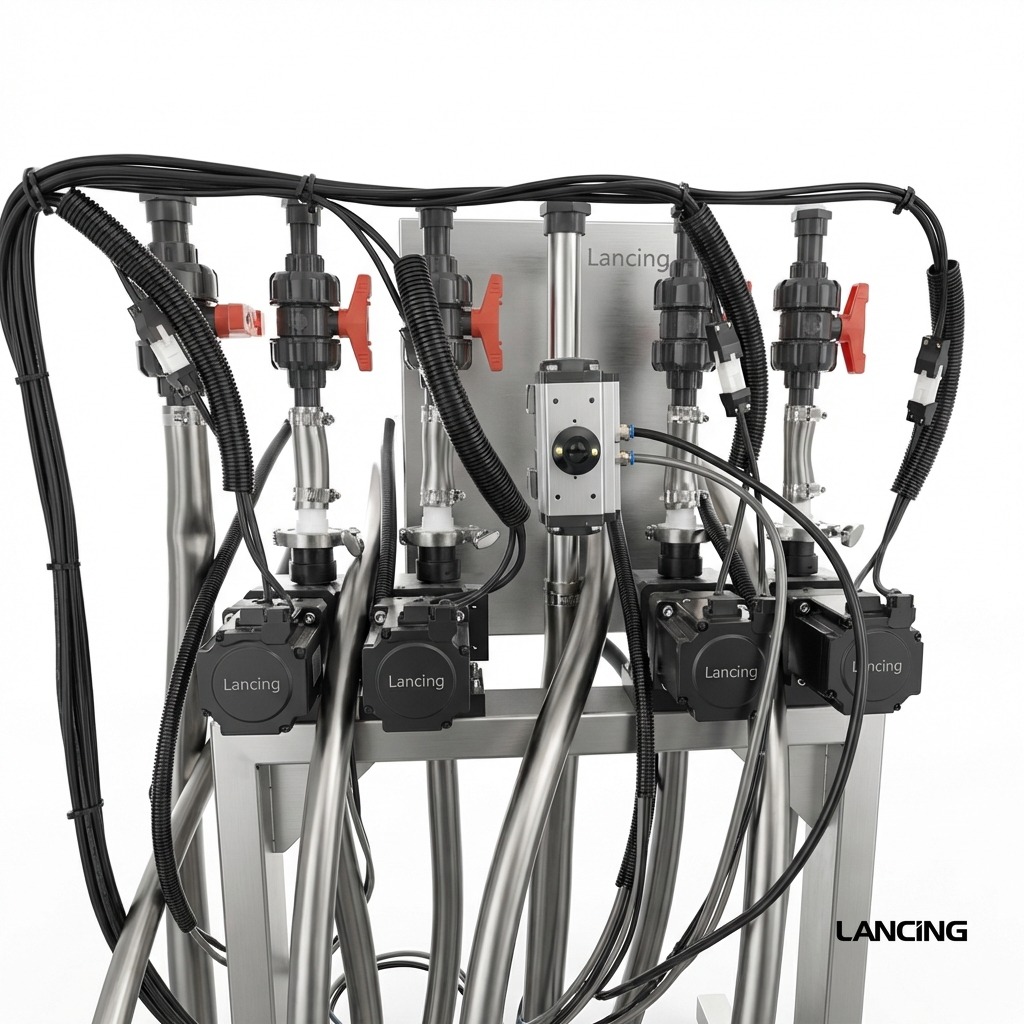

The Lancing UK LU-GYCR4A is an automatic 4-head servo-driven filling machine designed for corrosive liquids. Running at 200–2500 bottles per hour , it uses a corrosion-resistant PVDF magnetic pump for precise, stable, and leak-free filling. With adjustable filling heads, customizable anti-drip nozzles , a storage tank, a PP machine housing , and a corrosion-resistant conveyor system , it performs reliably in harsh chemical environments. Ideal for small to medium-scale production lines, it is suitable for filling acids, alkalis, bleach, disinfectants, detergents, fertilizer solutions, automotive chemicals, and other corrosive liquids.
- Throughput: 200–2500 BPH (based on filling volume)
- Format range: About 120 L
- Utilities: 110V / 220V, 50–60 Hz, 5000 W
Gallery
Machine views
Specifications
Reference details
| Machine Model | LU-GYCR4A |
|---|---|
| Voltage / Power | 110V / 220V, 50–60 Hz, 5000 W |
| Air Pressure Requirement | 0.4–0.7 MPa |
| Suitable Bottle Diameter | φ60–φ120 mm |
| Suitable Bottle Height | 60–300 mm |
| Hopper Capacity | About 120 L |
| Filling Range | 300 ml – 20 L |
| Filling Speed | 200–2500 BPH (based on filling volume) |
| Machine Dimensions (L×W×H) | About 2000 × 1300 × 1900 mm |
| Machine Weight | About 280 kg |
Quick answers
Buyer and engineer notes
What is LU-GYCR4A Automatic Corrosive Acids Disinfectants Liquid Filling Machine used for?
The Lancing UK LU-GYCR4A is an automatic 4-head servo-driven filling machine designed for corrosive liquids. Running at 200–2500 bottles per hour , it uses a corrosion-resistant PVDF magnetic pump for precise, stable, and leak-free filling.
What output can LU-GYCR4A Automatic Corrosive Acids Disinfectants Liquid Filling Machine achieve?
This page lists output at 200–2500 BPH (based on filling volume). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110V / 220V, 50–60 Hz, 5000 W; Power: 110V / 220V, 50–60 Hz, 5000 W; Air pressure: 0.4–0.7 MPa
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
