Servo Peristaltic Pump Juice Beverage Liquid Liquid Filling Machine
This Lancing UK LU-SVPP80C automatic filling machine is designed for efficiency and precision . Featuring four filling heads , each powered by a perista...
Product ranges
Pro Range
Servo Peristaltic Pump Juice Beverage Liquid Liquid Filling Machine

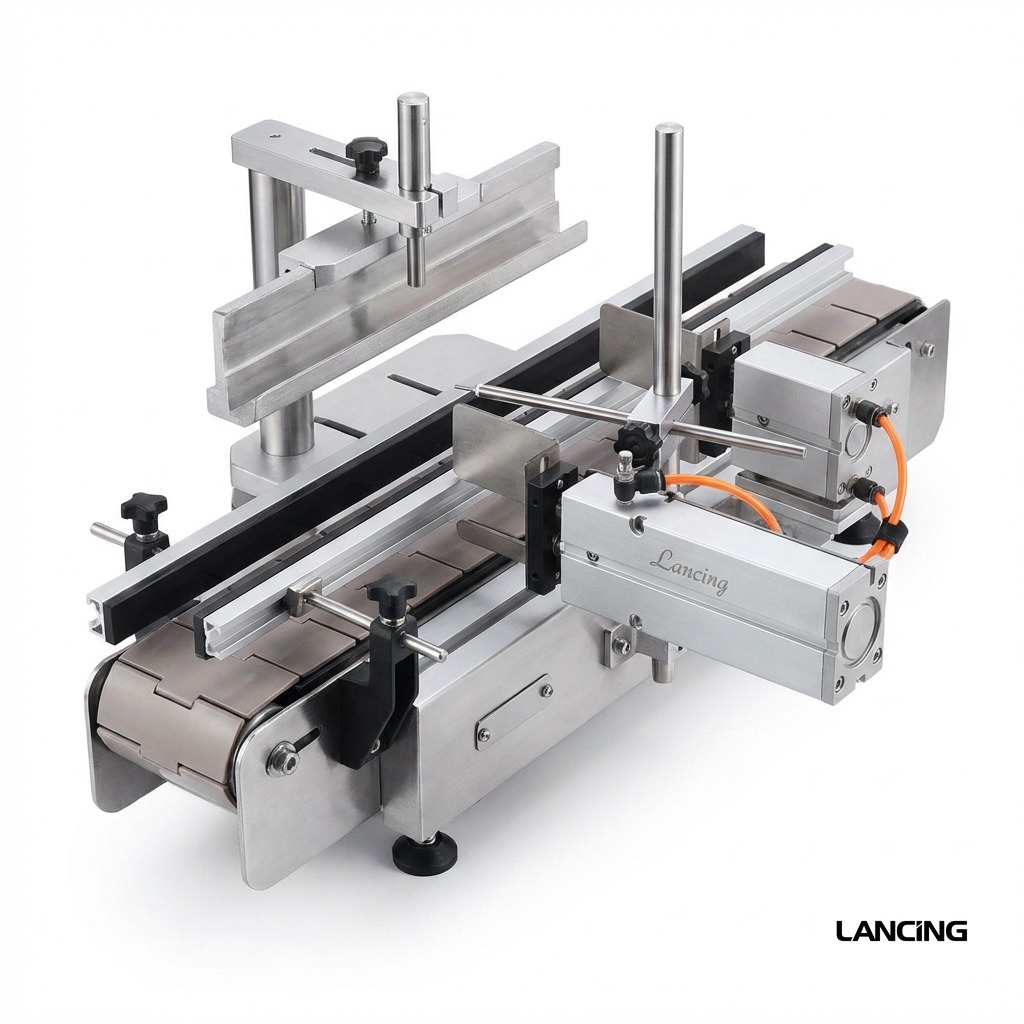

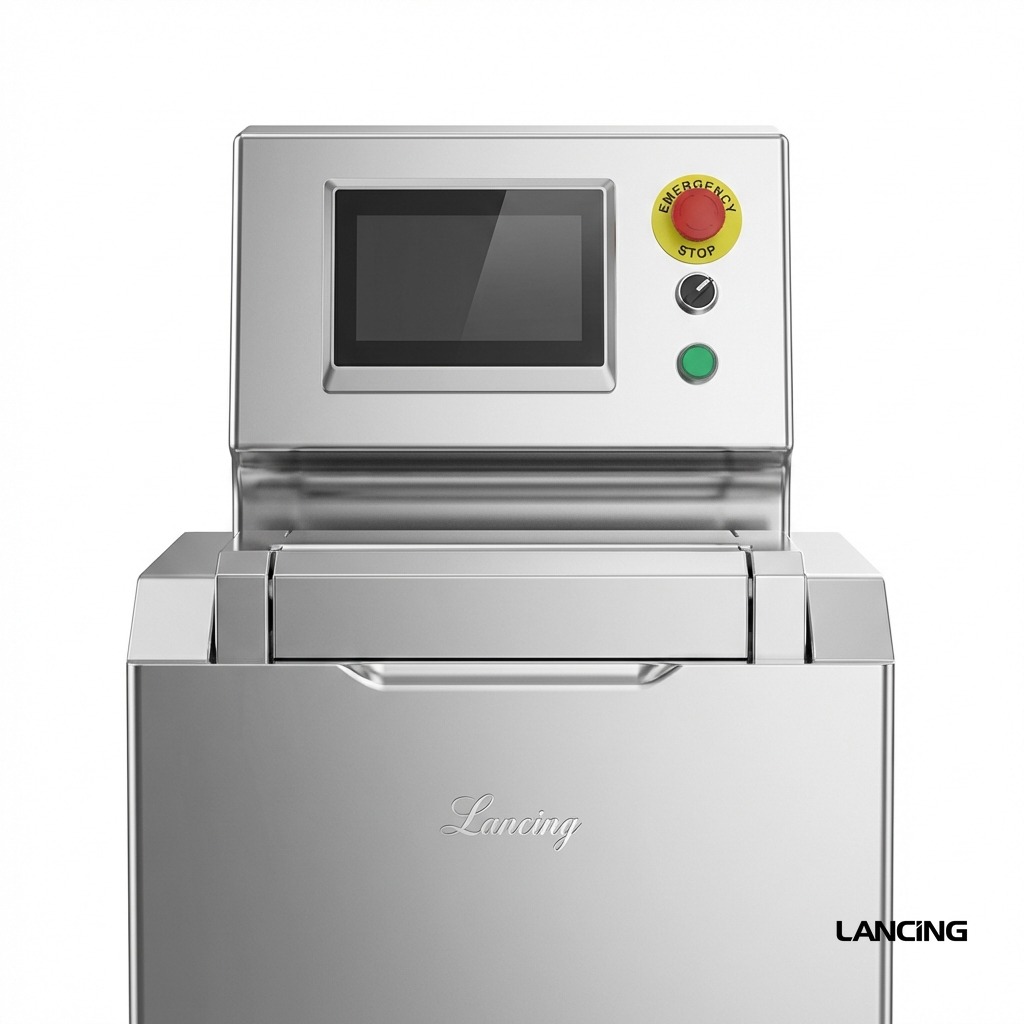

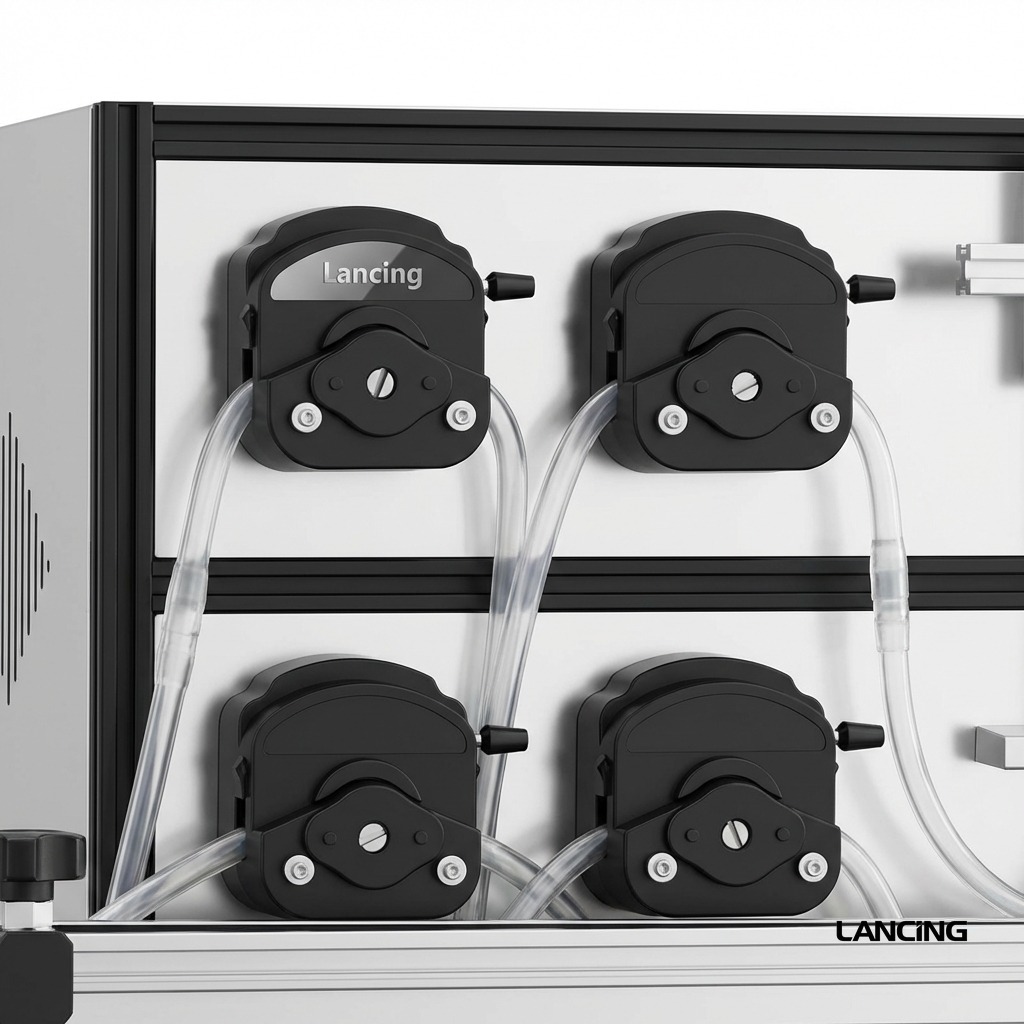

This Lancing UK LU-SVPP80C automatic filling machine is designed for efficiency and precision . Featuring four filling heads , each powered by a peristaltic pump and driven by a servo motor , it ensures accurate and consistent filling volumes. The filling heads are equipped with a pneumatic lifting mechanism , and a pneumatic anti-drip bar prevents leaks after filling. The user-friendly touch screen interface allows for easy operation and adjustments, making it ideal for various liquid filling applications.
- Throughput: Configurable (confirm during quote)
- Format range: About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.)
- Utilities: 110/220V 50-60HZ 2KW
Gallery
Machine views
Specifications
Reference details
| Model | LU-SVPP80C |
|---|---|
| Voltage | 110/220V 50-60HZ 2KW |
| Filling pump | Peristaltic pump |
| Max flow rate | 2.4L/min4 |
| Container size | Φ20-100mm H50-300mm |
| Recommend filling range | About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.) |
| Working capacity | About 10-20BPM (based on 100ml water, this depends on filling range and filling material) |
| Size of air compressor connector | OD8mm |
| Machine size | About 2000×800×1800mm |
| Package size | About 2070×800×1740mm |
| Package weight | About 251kg. |
Quick answers
Buyer and engineer notes
What is Servo Peristaltic Pump Juice Beverage Liquid Liquid Filling Machine used for?
This Lancing UK LU-SVPP80C automatic filling machine is designed for efficiency and precision . Featuring four filling heads , each powered by a peristaltic pump and driven by a servo motor , it ensures accurate and consistent filling volumes.
What output can Servo Peristaltic Pump Juice Beverage Liquid Liquid Filling Machine achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Voltage: 110/220V 50-60HZ 2KW; Air pressure: OD8mm; Footprint / size: Φ20-100mm H50-300mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
