LU‑DPYT3000 Single Head Heat Resistant Liquid Filling Machine
The Lancing UK LU‑DPYT3000 Single Head Liquid Filling Machine offers precision, efficiency, and versatility for small‑scale production. Its anti‑drip no...
Product ranges
Compact Range
LU‑DPYT3000 Single Head Heat Resistant Liquid Filling Machine
The Lancing UK LU‑DPYT3000 Single Head Liquid Filling Machine offers precision, efficiency, and versatility for small‑scale production. Its anti‑drip nozzle ensures clean, accurate fills, while the intelligent eye sensor streamlines operation. Heat‑resistant design allows filling of liquids up to 100 °C, and detachable inlet/outlet tubes make cleaning and maintenance simple. A microcomputer control system provides timing accuracy down to 0.1 second, making it ideal for water, beverages, sauces, juices, soybean milk, toner, and other low‑viscosity, particle‑free, non‑foaming liquids.
- Throughput: Adjustable
- Format range: Formats adjustable (bottle/closure dependent)
- Utilities: AC 110‑220 V 50‑60 Hz, Output voltage DC 12 V
Gallery

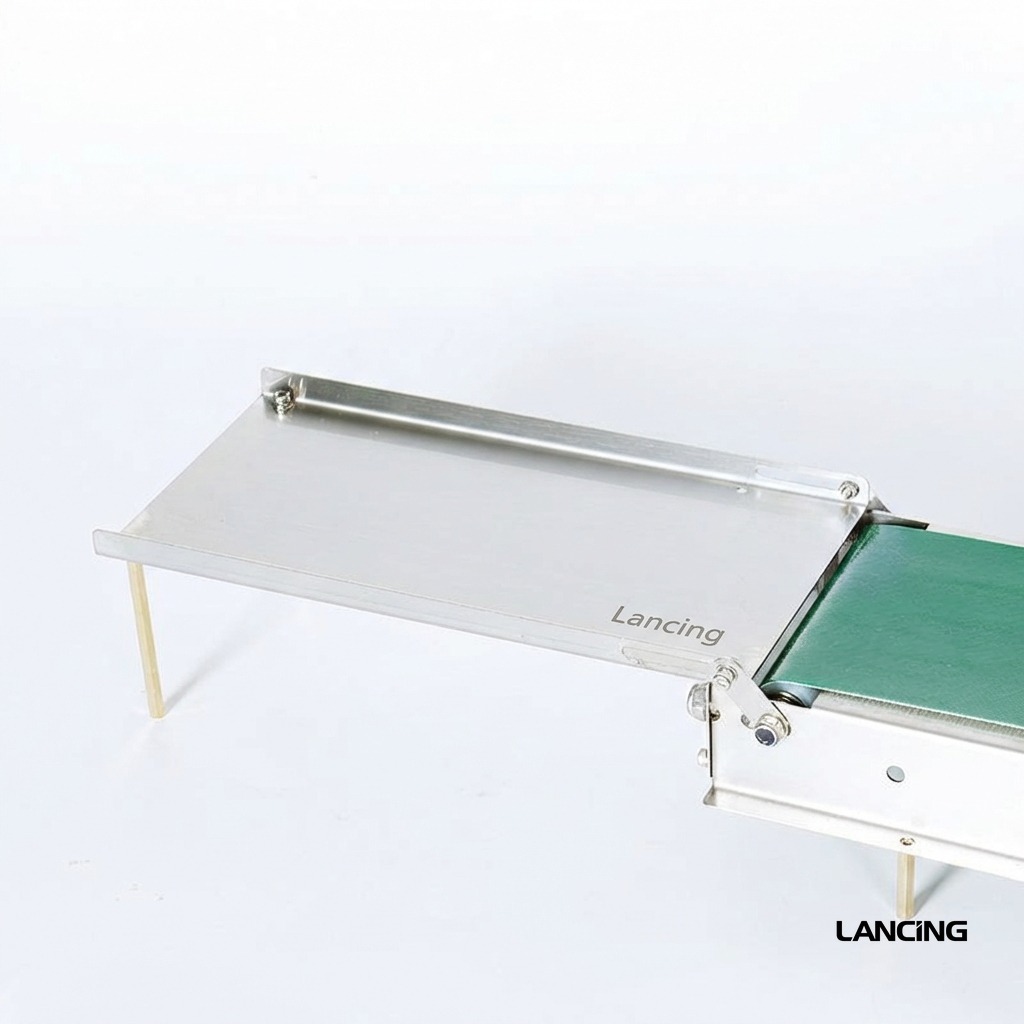

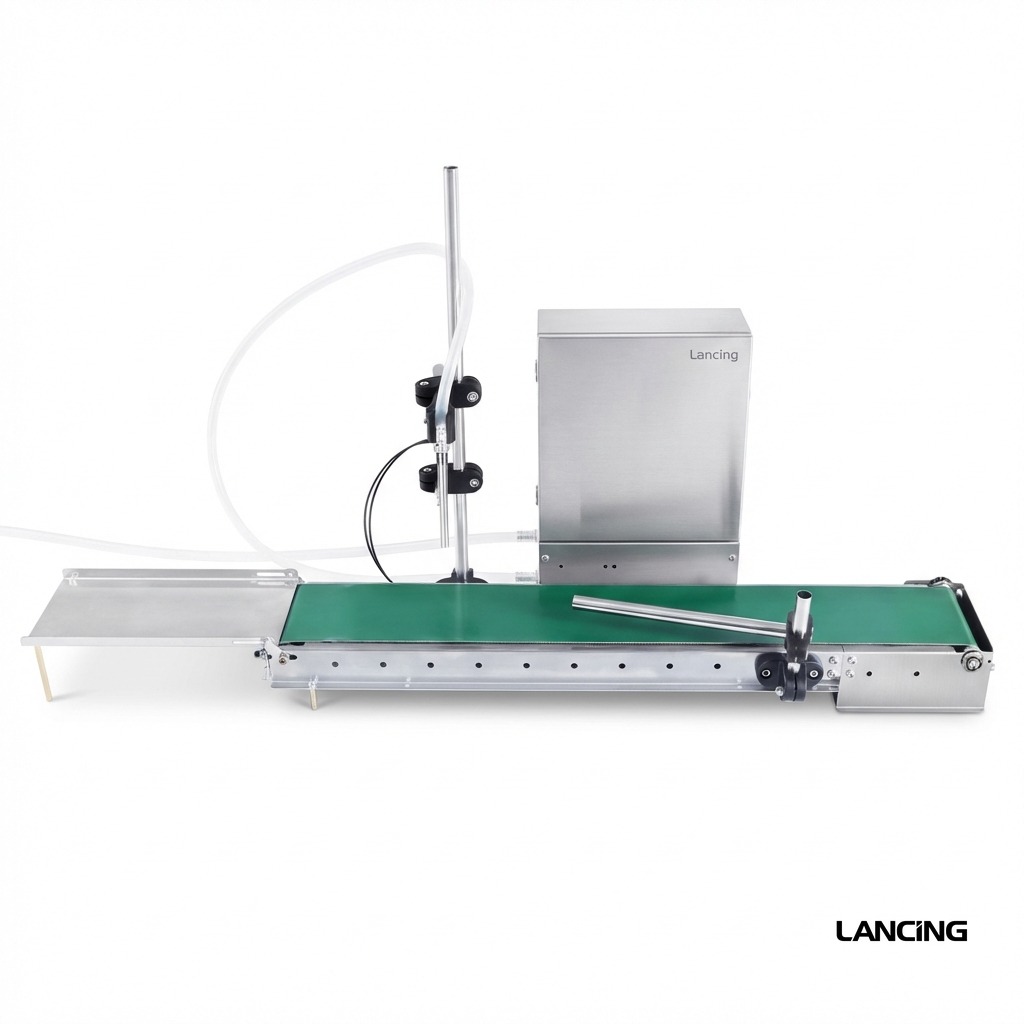

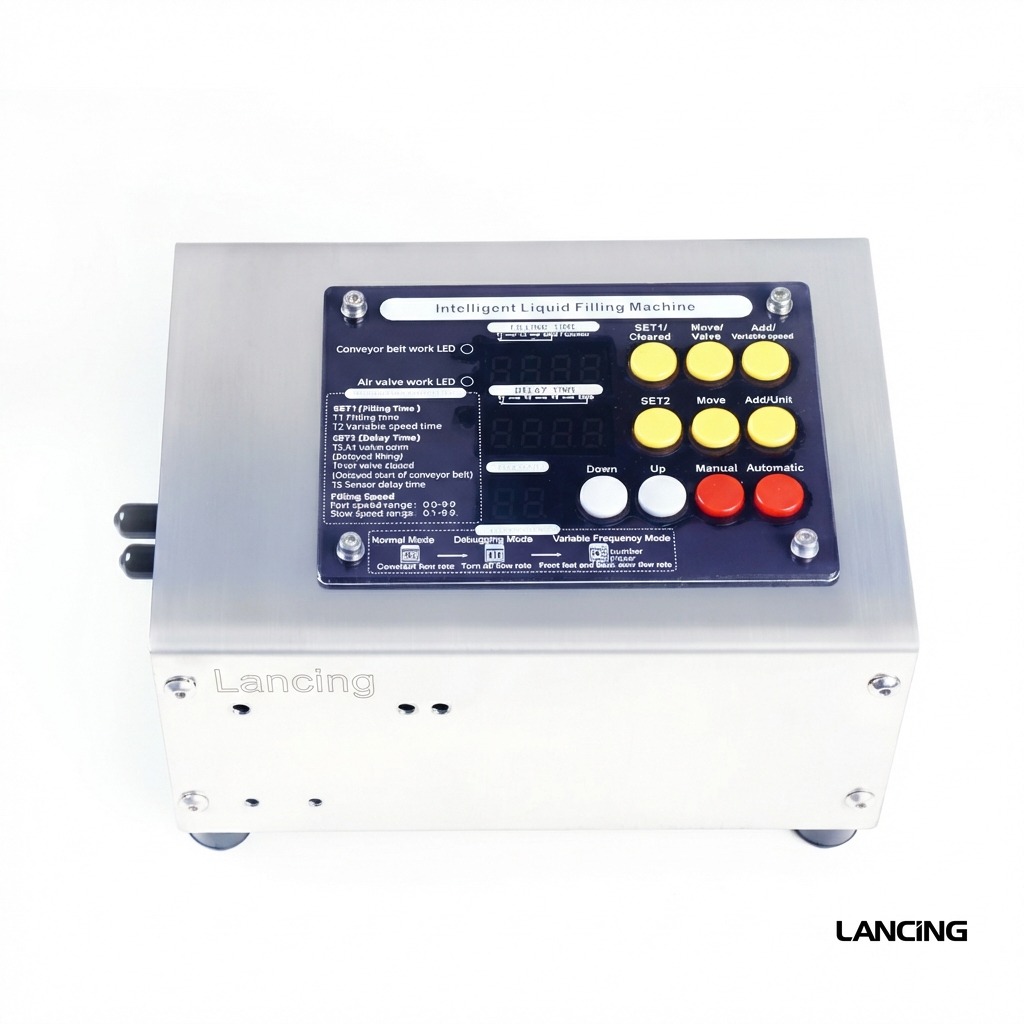

Machine views
Specifications
Reference details
| Item | LU‑DPYT3000 |
|---|---|
| Model | LU‑DPYT3000 |
| Pump Type | Diaphragm pump |
| Max. Temp. | 5 – 50 °C |
| Min. Fill Rate | 10 ml |
| Recommended Fill Rate | 10 – 500 ml |
| Max. Flow Rate | 3000 ml/min |
| Nozzle Diameter | 9 mm |
| Machine Size | 636 × 166 × 179 mm |
| Voltage | AC 110‑220 V 50‑60 Hz, Output voltage DC 12 V |
| Filling Speed | Adjustable |
| Filling Counter | Counting range: 1‑9999 |
| Inlet/Outlet Tube | Inlet: 1.5 m / Outlet: 0.8 m |
| Working Mode | Manual, automatic, intelligent induction |
| Memory Function | Available |
| Package Size | 650 × 170 × 180 mm |
Quick answers
Buyer and engineer notes
What is LU‑DPYT3000 Single Head Heat Resistant Liquid Filling Machine used for?
The Lancing UK LU‑DPYT3000 Single Head Liquid Filling Machine offers precision, efficiency, and versatility for small‑scale production. Its anti‑drip nozzle ensures clean, accurate fills, while the intelligent eye sensor streamlines operation.
What output can LU‑DPYT3000 Single Head Heat Resistant Liquid Filling Machine achieve?
This page lists output at Adjustable. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: AC 110‑220 V 50‑60 Hz, Output voltage DC 12 V; Footprint / size: 636 × 166 × 179 mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
