LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine
This pneumatic paste filling machine is suitable for filling thick liquid like gel,shampoo,soybean sauce,honey,pepper sauce etc.The filling range and sp...
Product ranges
Semi Automatic
LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine
This pneumatic paste filling machine is suitable for filling thick liquid like gel,shampoo,soybean sauce,honey,pepper sauce etc.The filling range and speed is adjustable according to production needs.It is widely used in food,cosmetics,beverage industries. Machine Model: LU-GT1 Paste Filling Machine
- Throughput: 5–20 bottles/min
- Format range: Formats adjustable (bottle/closure dependent)
- Utilities: 220V / 110V, 50–60Hz
Gallery

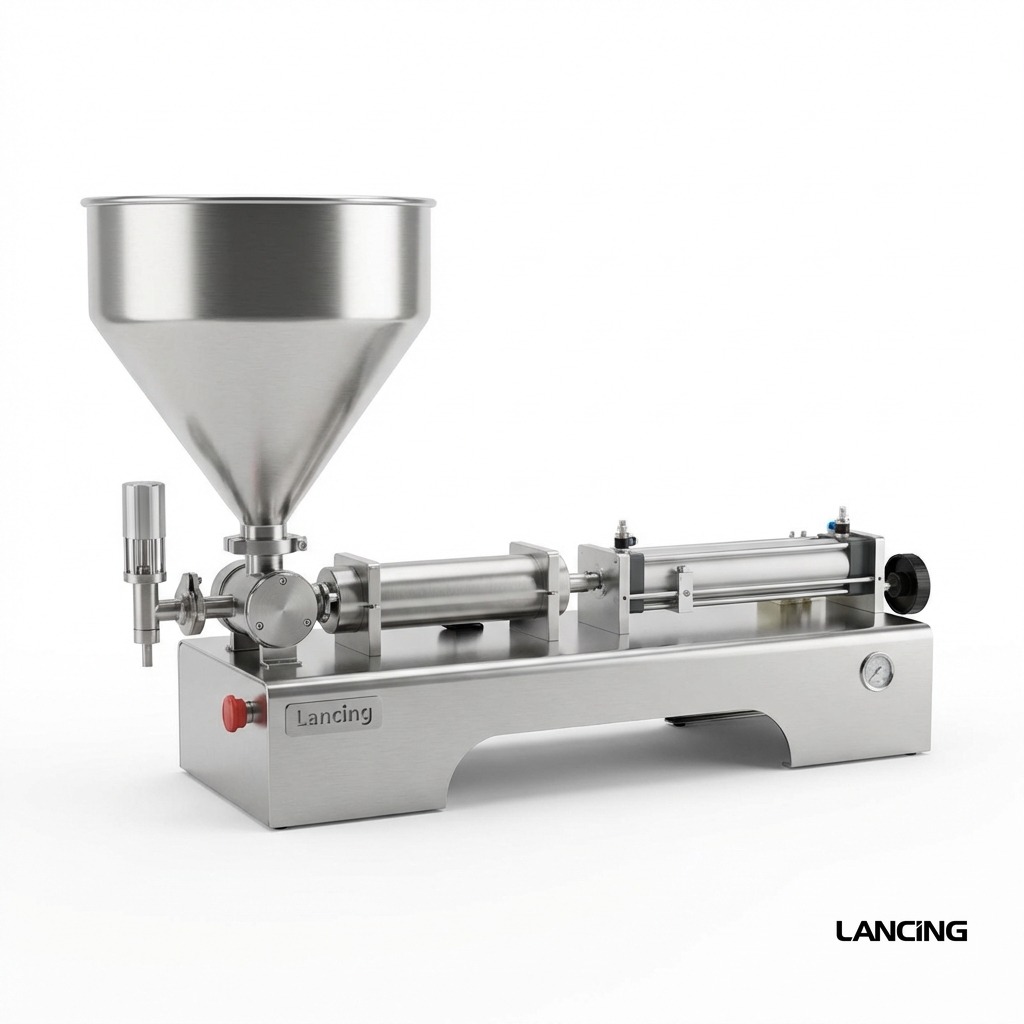

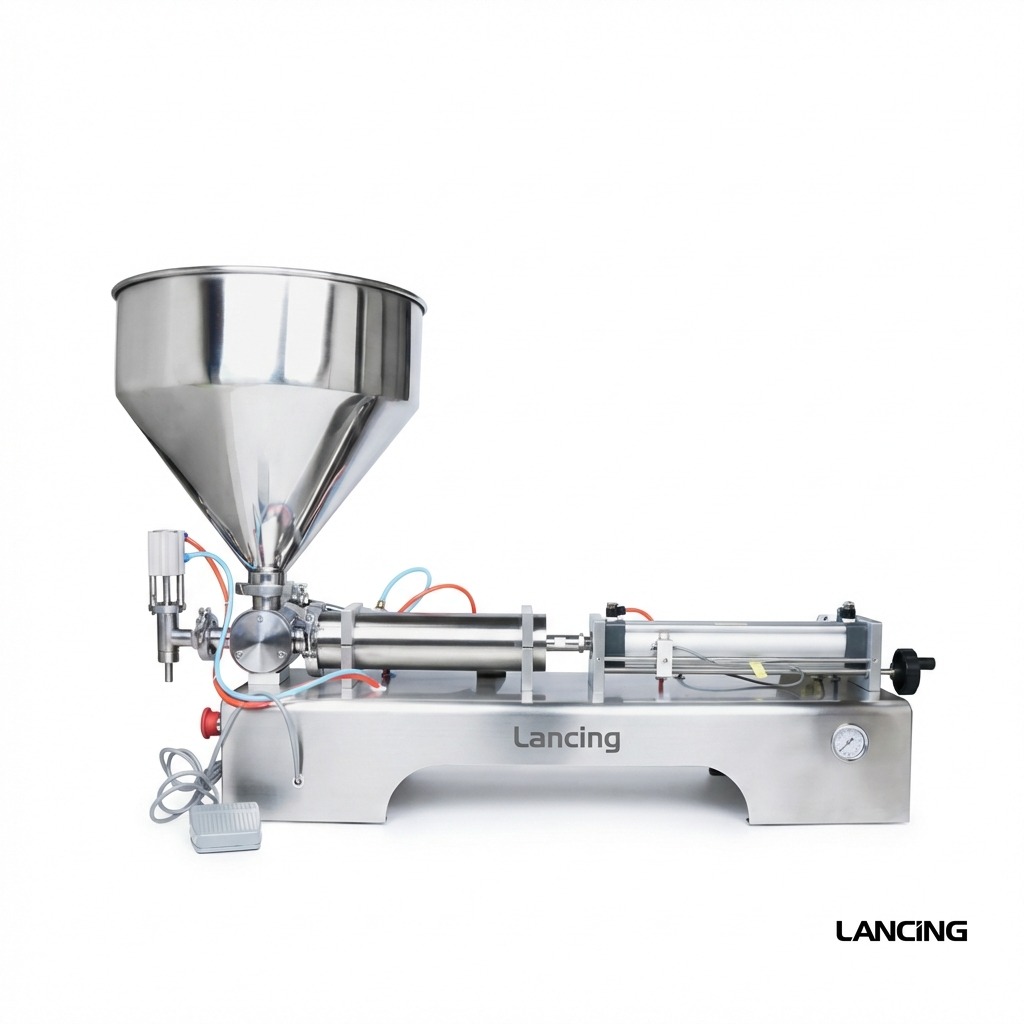

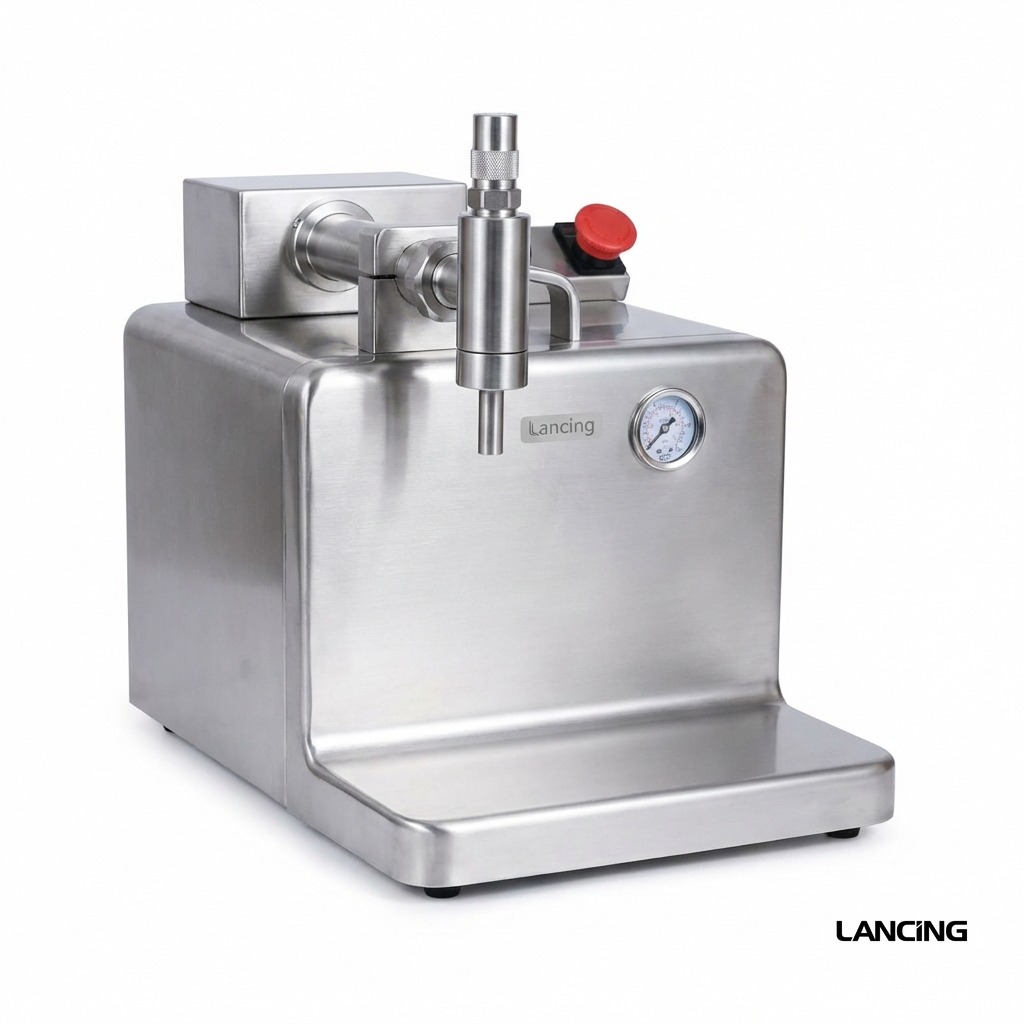

Machine views
Specifications
Reference details
| Voltage Supply | 220V / 110V, 50–60Hz |
|---|---|
| Power | 10W |
| Filling Accuracy | ≤ ±0.5% |
| Filling Speed | 5–20 bottles/min |
| Filling Volume Options | 10–100ml / 10–200ml / 30–300ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml |
| Working Air Pressure | 0.4–0.6MPa |
| Air Compressor Connector Size | Outer Diameter 8mm |
| Air Consumption | ≥ 0.1m³/min |
| Machine Model | LU-GT1 Paste Filling Machine |
Quick answers
Buyer and engineer notes
What is LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine used for?
This pneumatic paste filling machine is suitable for filling thick liquid like gel,shampoo,soybean sauce,honey,pepper sauce etc.The filling range and speed is adjustable according to production needs.It is widely used in food,cosmetics,beverage industries. Machine Model: LU-GT1 Paste Filling Machine
What output can LU-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine achieve?
This page lists output at 5–20 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 220V / 110V, 50–60Hz; Power: 10W; Air pressure: 0.4–0.6MPa
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
