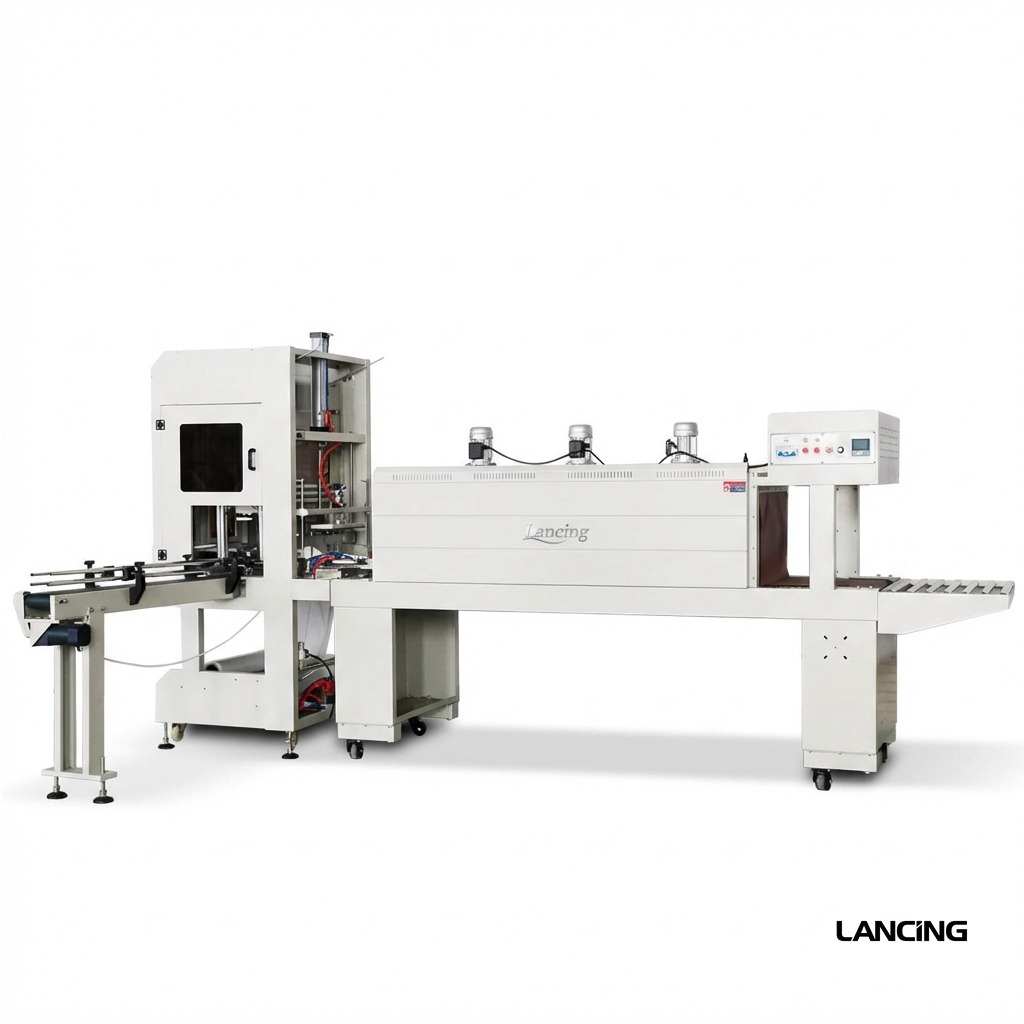

LU-SPL4 Automatic Bottle Wrapping & Shrinking System
The Lancing UK LU-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designe...
Product ranges
Pro Range
LU-SPL4 Automatic Bottle Wrapping & Shrinking System
The Lancing UK LU-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designed to wrap and seal shrink film around bottled water, soft drinks, or similar products, it integrates seamlessly with fillers, cap sealers, and label applicators to form a fully automated production line. The LU-QZD7040S handles precise film wrapping using PE shrink film, while the LU-BSPN6040 shrink tunnel ensures a tight, professional finish with adjustable speed and multi-film compatibility. Built for industrial performance, this system delivers speed, consistency, and reliability. LU-QZD7040S PE Film Wrapping Machine Model： LU-QZD7040S
- Throughput: 0–6 packs per minute
- Format range: 60–120 mm
- Utilities: 220V, 50–60Hz
Gallery
Machine views
Specifications
Reference details
| Voltage | 220V, 50–60Hz |
|---|---|
| Power Consumption | 2 kW |
| Packing Speed | 0–6 packs per minute |
| Bottle Size Range Diameter | 60–120 mm |
| Height | 100–330 mm |
| Max Package Size | 400 × 120 × 330 mm |
| Min Package Size | 240 × 120 × 100 mm |
| Payload Capacity | Up to 20 kg |
| Film Roll Width | Max 560 mm |
| Film Thickness | 0.03–0.25 mm |
| Applicable Film Type | PE shrink film only |
| Machine Dimensions Approx. | 2150 × 1200 × 2020 mm |
| Machine Weight Approx. | 350 kg |
| Model | LU-BSPN6040 |
| Tunnel Dimensions | Approx. 1800 × 600 × 400 mm |
| Conveying Speed | 0–15 meters per minute |
| Applicable Shrink Film | PVC / POF / PE |
| Package Dimensions | Approx. 2880 × 930 × 1500 mm |
| Package Weight Approx. | 350 kg |
Quick answers
Buyer and engineer notes
What is LU-SPL4 Automatic Bottle Wrapping & Shrinking System used for?
The Lancing UK LU-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designed to wrap and seal shrink film around bottled water, soft drinks, or similar products, it integrates seamlessly with fillers, cap sealers, and label applicators to form a fully automated production line.
What output can LU-SPL4 Automatic Bottle Wrapping & Shrinking System achieve?
This page lists output at 0–6 packs per minute. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 220V, 50–60Hz; Power: 2 kW; Footprint / size: 60–120 mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
