Pro Range

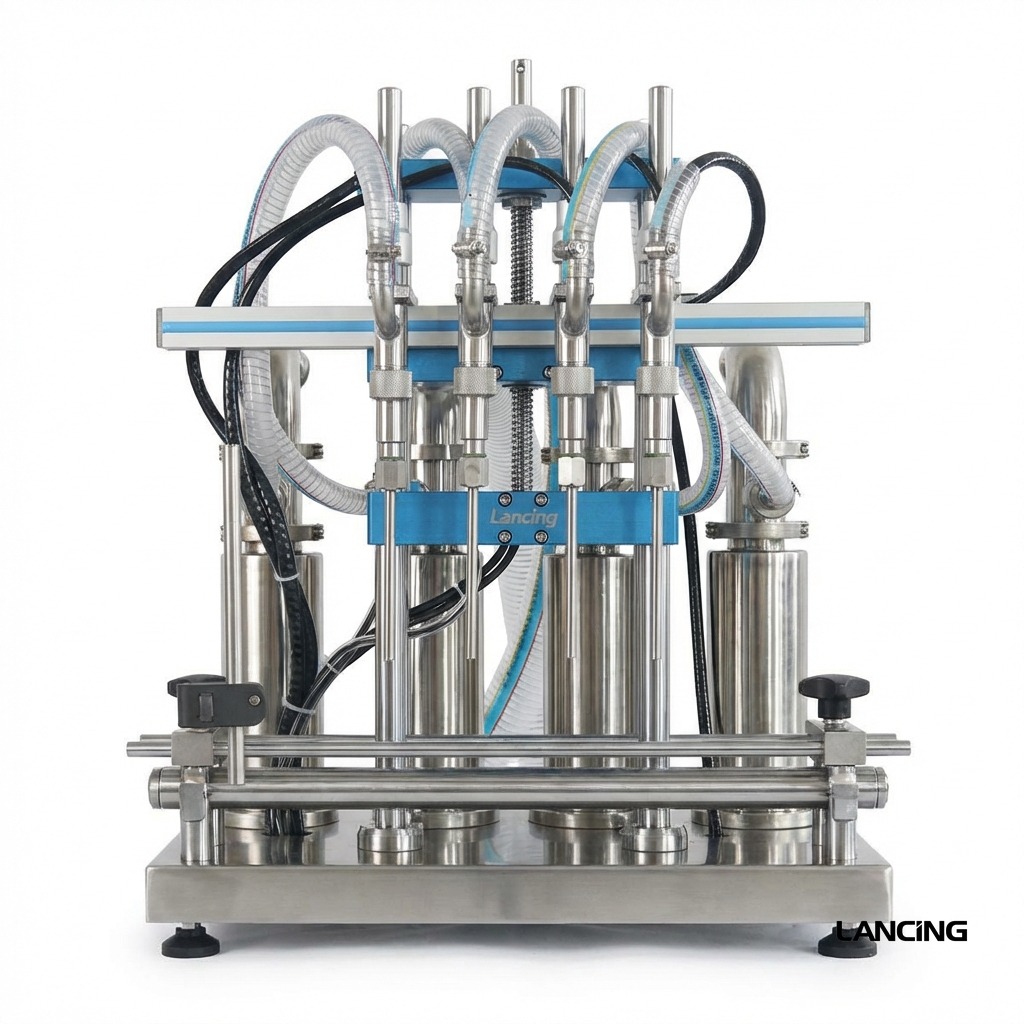

LU‑SV4HS 4‑Head Servo Piston Liquid Filling Machine

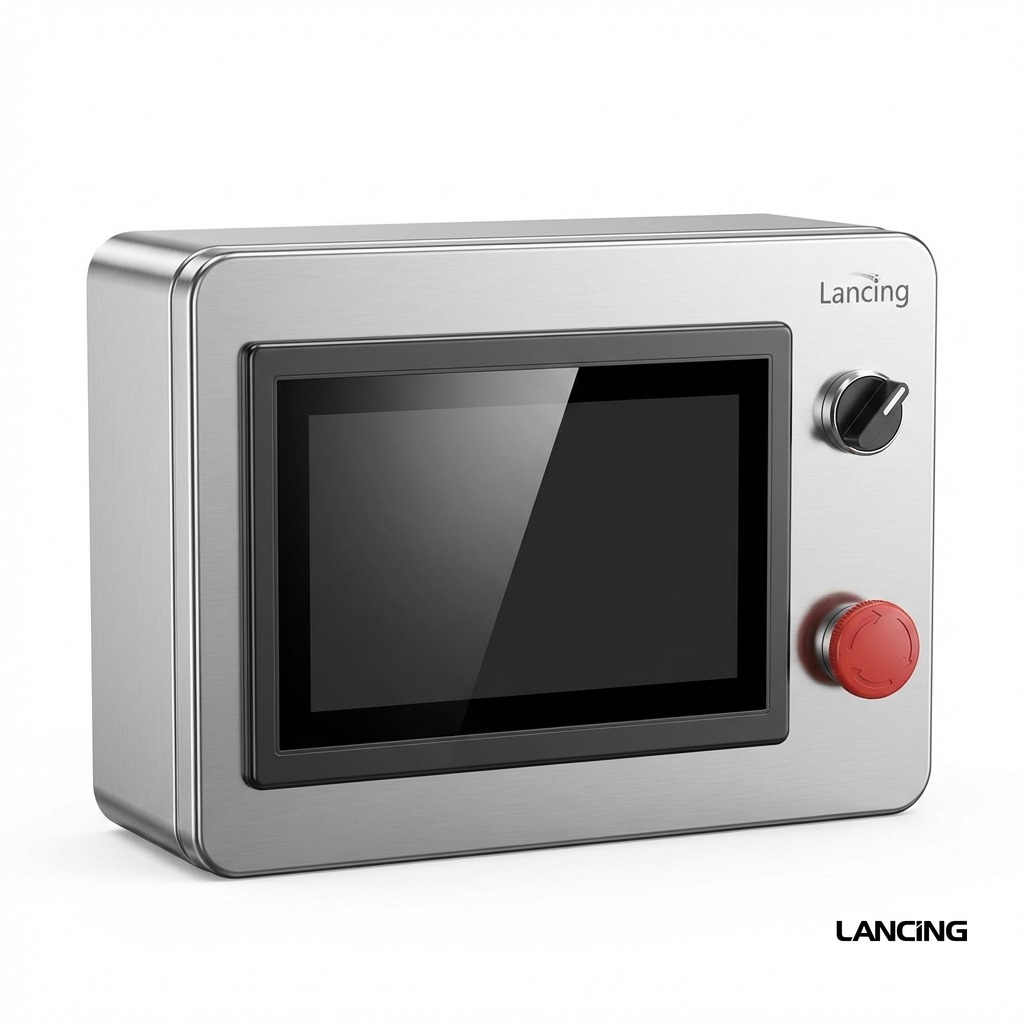

The Lancing UK LU‑SV4HS is a high‑precision 4‑head liquid filling machine powered by a servo motor for exceptional accuracy. Controlled by a PLC system, it offers smooth, reliable operation and can be tailored to meet diverse production needs. Ideal for food, cosmetics, and daily chemical industries, it handles a wide range of liquid products with consistent, efficient performance. Machine Specifications — Model LU‑SV4HS Parameter Details Model LU‑SV4HS Machine Voltage 110 V / 220 V, 50–60 Hz Power Approx. 6 kW Filling Range 100 – 1000 ml (customizable) Filling Speed Approx. 15 – 30 bottles/min (varies by bottle size & material) Filling Accuracy Approx. ±0.5 % Air Pressure 0.5 – 0.8 MPa Conveyor Belt Size Approx. 114 × 2000 mm (W × L) Machine Weight Approx. 130 kg Package Size Approx. 2070 × 760 × 1670 mm Package Weight Approx. 275 kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
