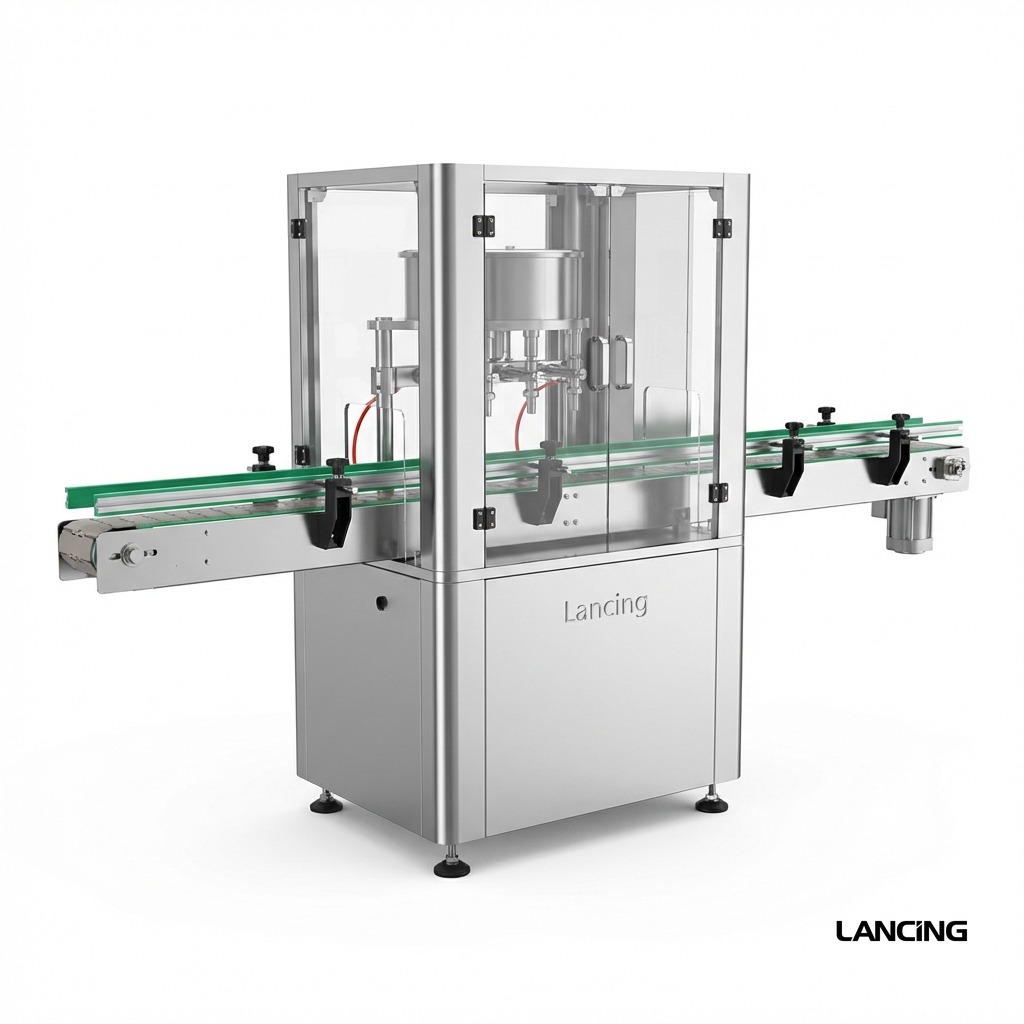

LU-SV4P Servo Paste Filling Machine

The LU-SV4P is a high-precision filling machine designed for viscous liquids like honey, syrup, lotion, and cream. Equipped with a servo motor, it allows users to set exact filling volumes for consistent, efficient operation. Ideal for small to medium-scale production, this machine combines speed, accuracy, and versatility in one compact system. Lancing UK LU-SV4P Liquid Filling Machine – Technical Specifications Parameter Details Model LU-SV4P Machine Voltage 110V / 220V, 50–60Hz Power Consumption Approx. 3000W Filling Heads 4 Heads (customizable) Filling Speed Approx. 24 bottles/min (based on 290ml water) Filling Range Options 100–1000ml / 500–3000ml / 1000–5000ml Suitable Bottle Diameter 40–110mm Suitable Bottle Height ≤230mm Filling Accuracy ≤ ±2% Conveyor Belt Size Approx. 2450 × 112mm (L × W) Package Weight Approx. 586.5kg Package Dimensions Approx. 2450 × 900 × 2190mm

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
