LU-SV6X High Speed Continuous Motion Liquid Filling Machine
Introducing the revolutionary high-speed continuous motion filling machine! This cutting-edge system boasts unparalleled efficiency, achieving an impres...
Product ranges
Pro Range
LU-SV6X High Speed Continuous Motion Liquid Filling Machine
Introducing the revolutionary high-speed continuous motion filling machine! This cutting-edge system boasts unparalleled efficiency, achieving an impressive output of 4800 bottles per hour. Bottles are smoothly conveyed on a continuous belt, precisely gripped by our advanced clamping mechanism as they reach the filling station. Six independent filling heads descend simultaneously for rapid, accurate dispensing while the bottles continue their uninterrupted movement along the conveyor. This continuous motion design eliminates downtime associated with intermittent systems, maximizing your production and ROI.
- Throughput: 40-80 bottles/min
- Format range: 5-100ml / 10-300ml / 50-500ml / 100-1000ml
- Utilities: 110/220V 50-60HZ
Gallery

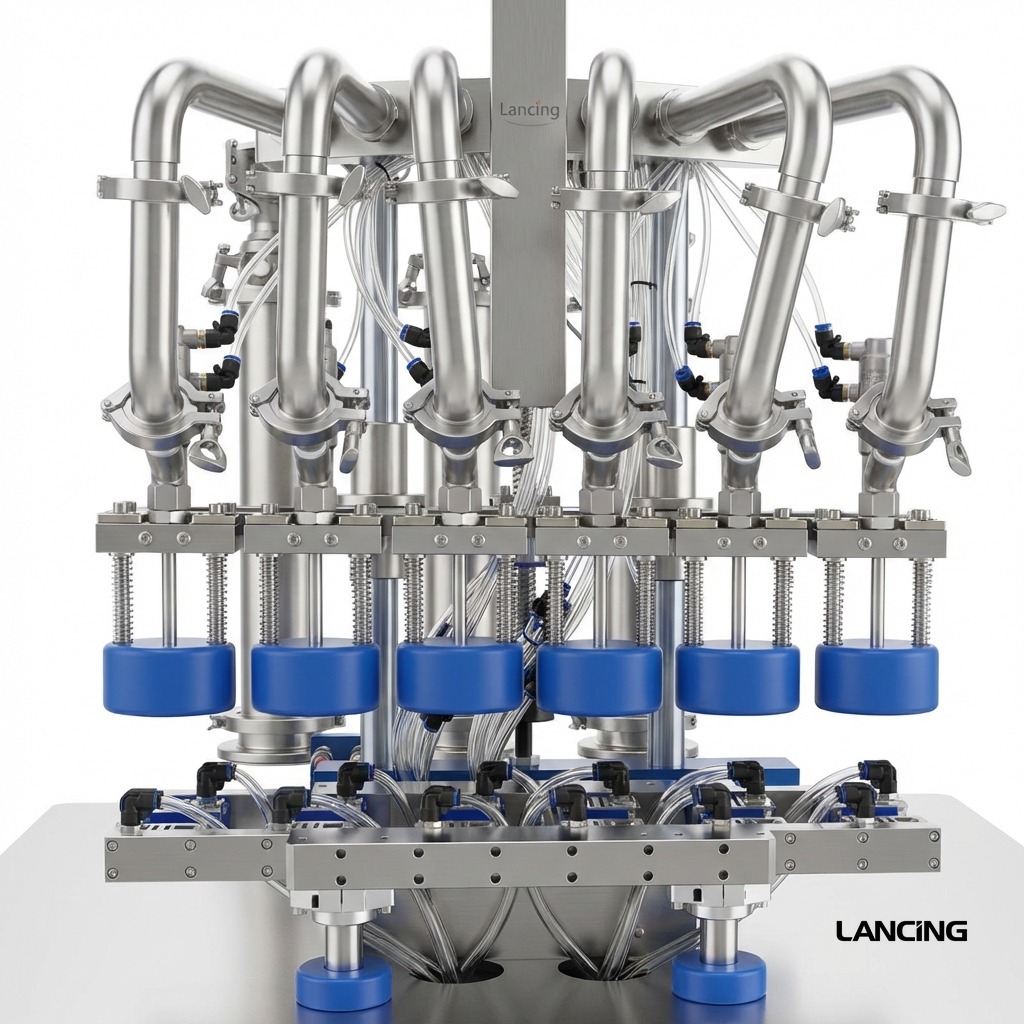

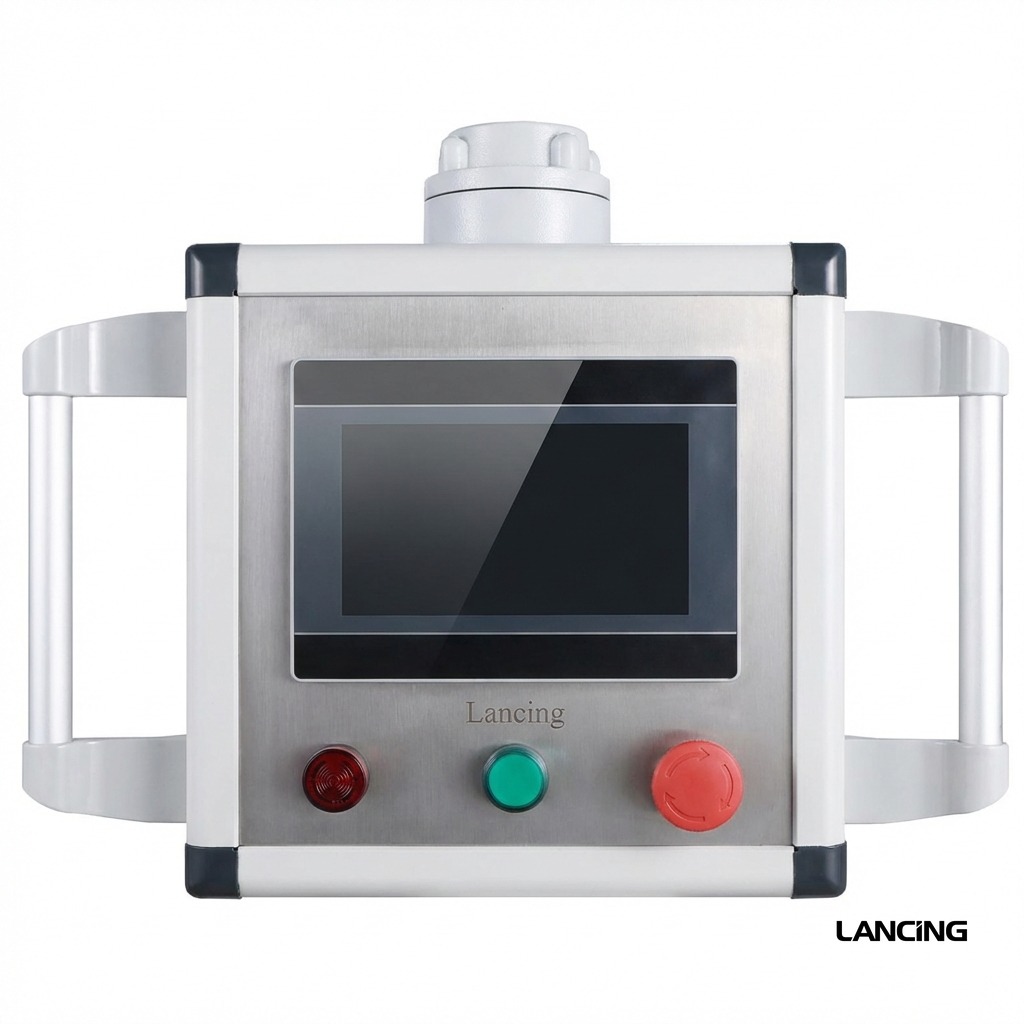

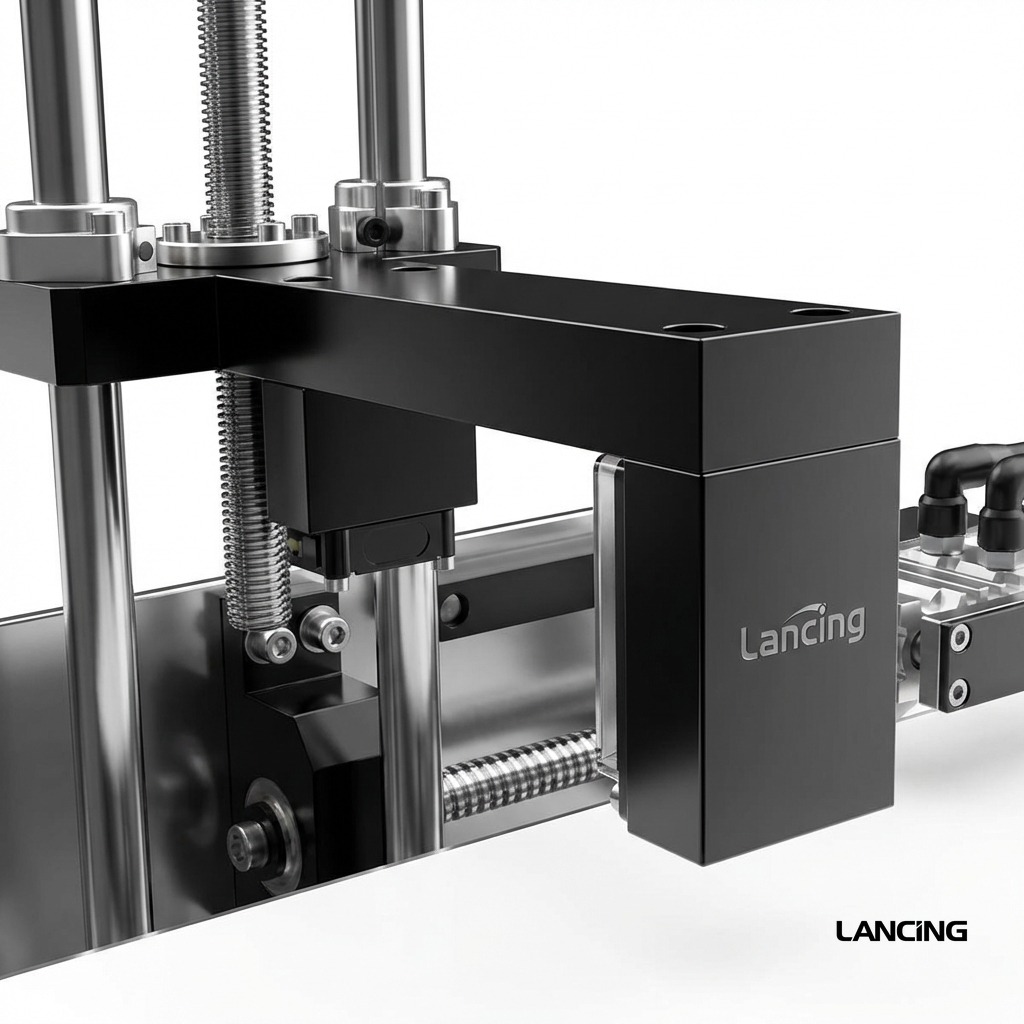

Machine views
Specifications
Reference details
| Model | LU-SV6X |
|---|---|
| Voltage | 110/220V 50-60HZ |
| Machine power | 6KW |
| Filling range | 5-100ml / 10-300ml / 50-500ml / 100-1000ml |
| Filling pump | Piston Pump |
| Bottle height | 40-250mm |
| Bottle diameter | 30-100mm |
| Working speed | 40-80 bottles/min |
| Package size | About 2210 1260 2220mm |
| Package weight | About 950kg |
Quick answers
Buyer and engineer notes
What is LU-SV6X High Speed Continuous Motion Liquid Filling Machine used for?
Introducing the revolutionary high-speed continuous motion filling machine! This cutting-edge system boasts unparalleled efficiency, achieving an impressive output of 4800 bottles per hour.
What output can LU-SV6X High Speed Continuous Motion Liquid Filling Machine achieve?
This page lists output at 40-80 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110/220V 50-60HZ; Power: 6KW; Footprint / size: About 2210 1260 2220mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
