Trigger Spray Cap Feeder Lid Feeding Equipment
The Trigger Spray Cap Feeding Machine is a highly efficient and precise solution for feeding trigger spray caps onto bottles with soft dip tubes. This m...
Product ranges
Pro Range
Trigger Spray Cap Feeder Lid Feeding Equipment

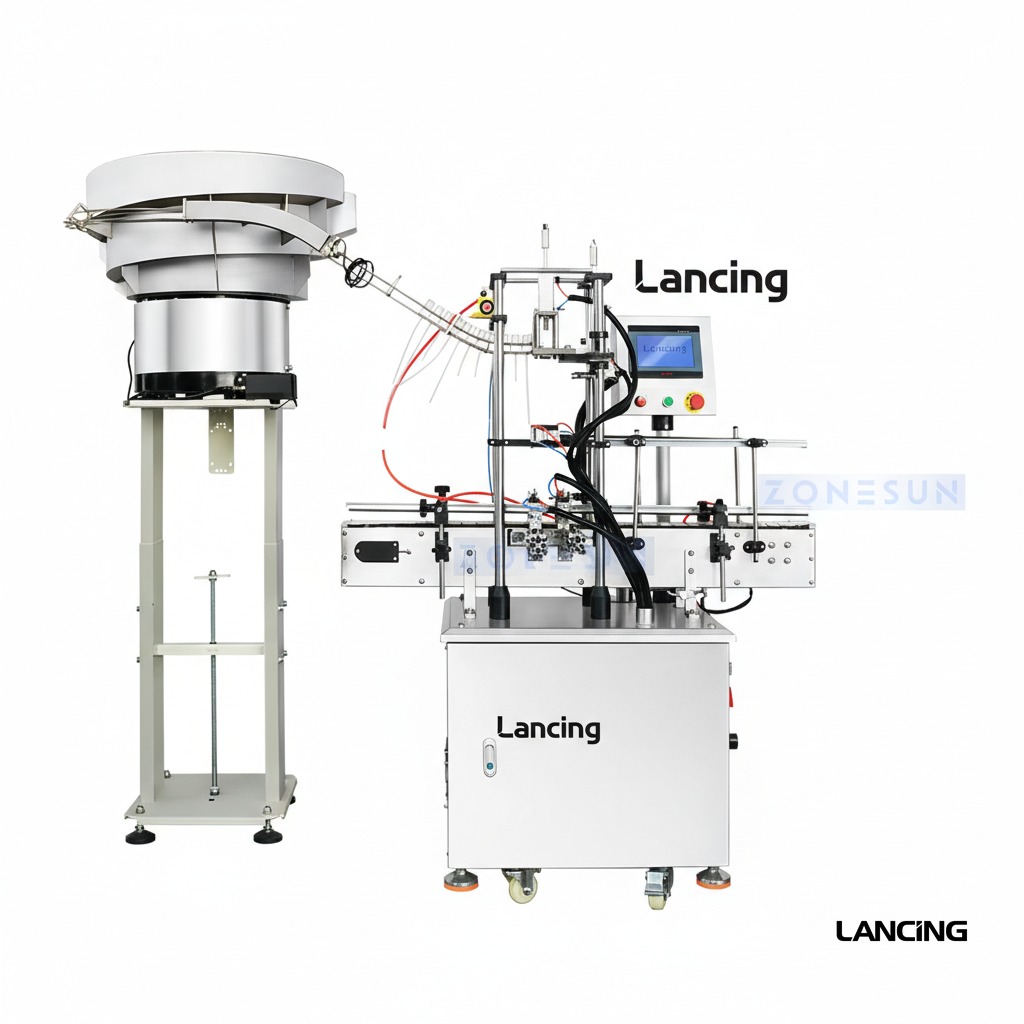

The Trigger Spray Cap Feeding Machine is a highly efficient and precise solution for feeding trigger spray caps onto bottles with soft dip tubes. This machine features a vibratory bowl feeder that sorts and feeds the caps, a conveyor belt that transports the bottles, and a pneumatic gripper that picks and places the caps onto the bottles. To ensure proper cap placement even with soft dip tubes, the machine also includes a straightening gripper that guides the dip tube into the bottle. This ensures a smooth and consistent capping process, minimizing the risk of misalignment or damage to the dip tube.
- Throughput: Configurable (confirm during quote)
- Format range: 20-25BPM
- Utilities: 110/220V 50-60Hz 250W
Gallery
Machine views
Specifications
Reference details
| Machine model | LU-XG446S |
|---|---|
| Voltage | 110/220V 50-60Hz 250W |
| Suitable cap size | About φ=15-35mm |
| Suitable bottle height | About 10-280mm |
| Working capacity | 20-25BPM |
| Package size | About 1420×680×1740mm (Main Machine) + 940×930×820mm (Vibratory Bowl Sorter) |
| Package weight | About 210kg (Main Machine) + 153kg (Vibratory Bowl Sorter) |
Quick answers
Buyer and engineer notes
What is Trigger Spray Cap Feeder Lid Feeding Equipment used for?
The Trigger Spray Cap Feeding Machine is a highly efficient and precise solution for feeding trigger spray caps onto bottles with soft dip tubes. This machine features a vibratory bowl feeder that sorts and feeds the caps, a conveyor belt that transports the bottles, and a pneumatic gripper that picks and places the caps onto the bottles.
What output can Trigger Spray Cap Feeder Lid Feeding Equipment achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Voltage: 110/220V 50-60Hz 250W; Footprint / size: About φ=15-35mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
