LU-VTPF4 Automatic 4 Tracking Heads Paste Liquid Filling Machine
Introducing our revolutionary Automatic Tracking Filling Machine, a game-changer for your business! This cutting-edge machine is designed to streamline ...
Product ranges
Pro Range
LU-VTPF4 Automatic 4 Tracking Heads Paste Liquid Filling Machine
Introducing our revolutionary Automatic Tracking Filling Machine, a game-changer for your business! This cutting-edge machine is designed to streamline your bottling process, allowing for seamless filling without the need to pause or stop the bottles. Equipped with advanced servo motor control and four filling heads, it has the capacity to achieve an impressive speed of up to 5000 bottles per hour. Whatever your packaging needs are, you can rely on Lancing UK.
- Throughput: 2000–5000 bottles/hour (depends on volume and material)
- Format range: 500–5000ml (Customizable)
- Utilities: 6kW 380V
Gallery

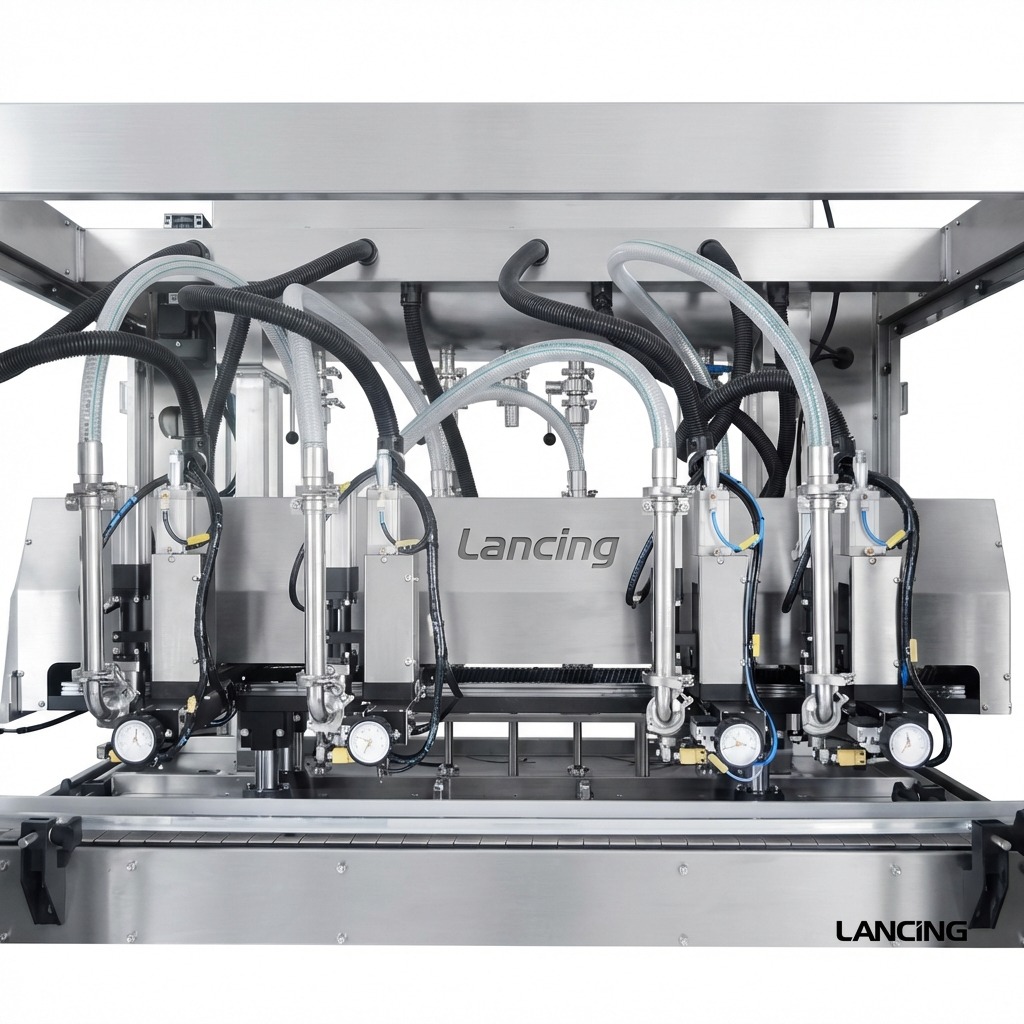

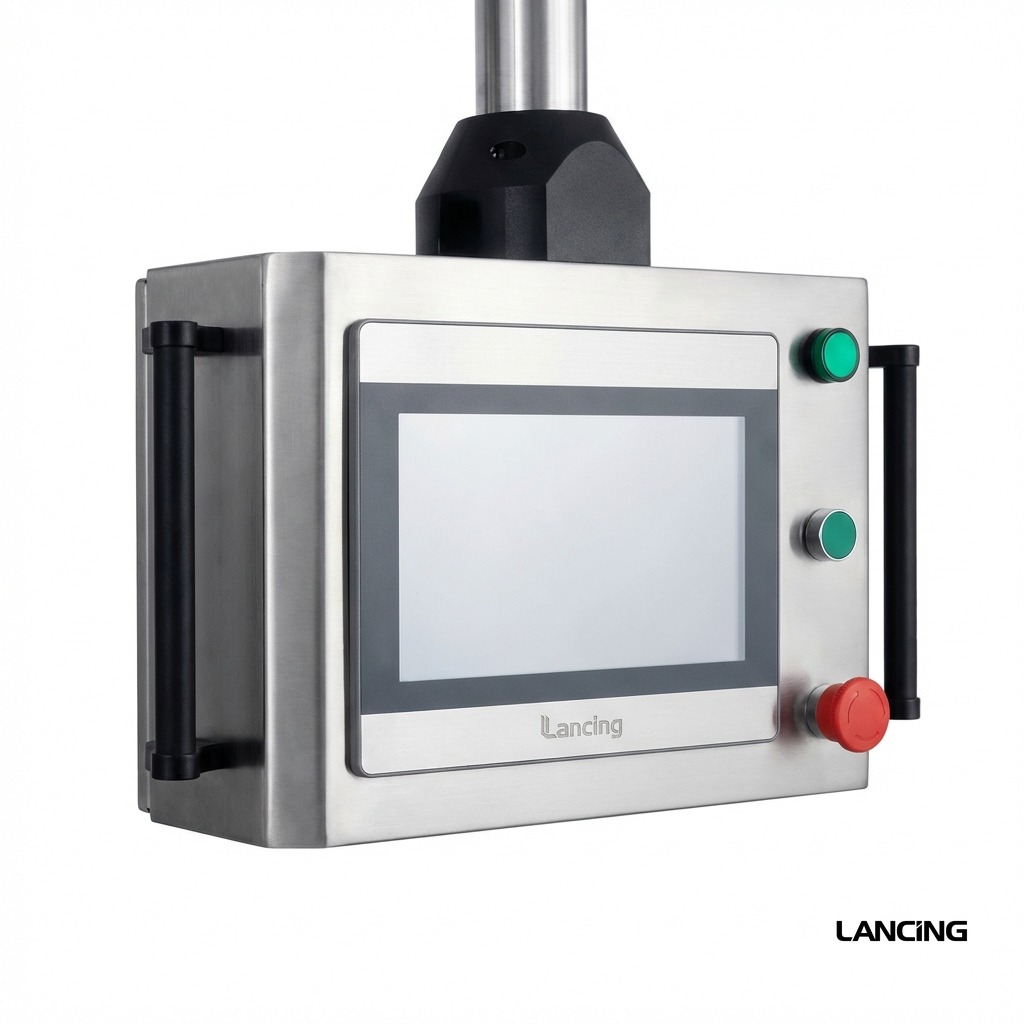

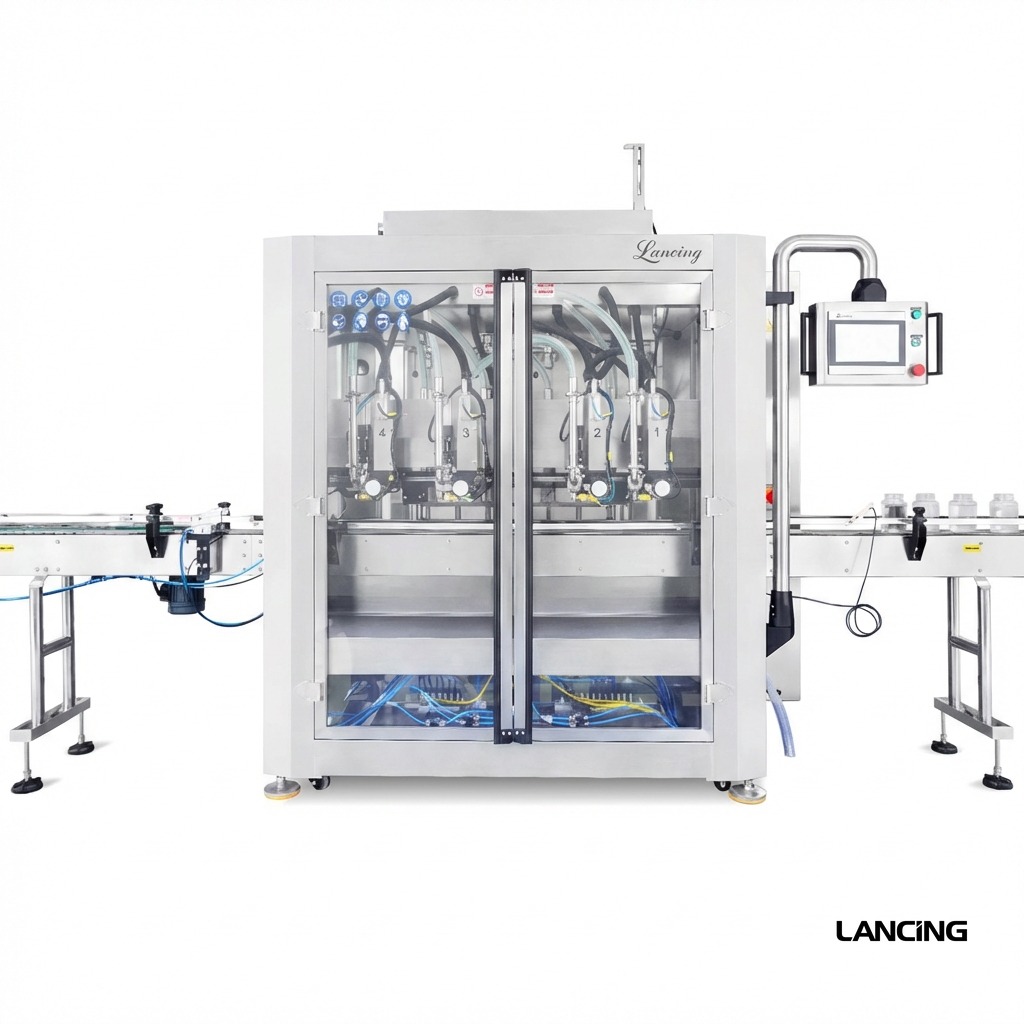

Machine views
Specifications
Reference details
| Filling Heads | 4 |
|---|---|
| Filling Range | 500–5000ml (Customizable) |
| Filling Speed | 2000–5000 bottles/hour (depends on volume and material) |
| Metering Accuracy | ±1% |
| Power / Voltage | 6kW 380V |
| Working Air Pressure | 0.6–0.8MPa |
| Air Consumption | 6–7 m³/min |
| Machine Size | 3000 × 1500 × 2700mm |
| Net Weight | 900kg |
Quick answers
Buyer and engineer notes
What is LU-VTPF4 Automatic 4 Tracking Heads Paste Liquid Filling Machine used for?
Introducing our revolutionary Automatic Tracking Filling Machine, a game-changer for your business! This cutting-edge machine is designed to streamline your bottling process, allowing for seamless filling without the need to pause or stop the bottles.
What output can LU-VTPF4 Automatic 4 Tracking Heads Paste Liquid Filling Machine achieve?
This page lists output at 2000–5000 bottles/hour (depends on volume and material). Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 6kW 380V; Power: 6kW 380V; Air pressure: 0.6–0.8MPa
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
