Pro Range

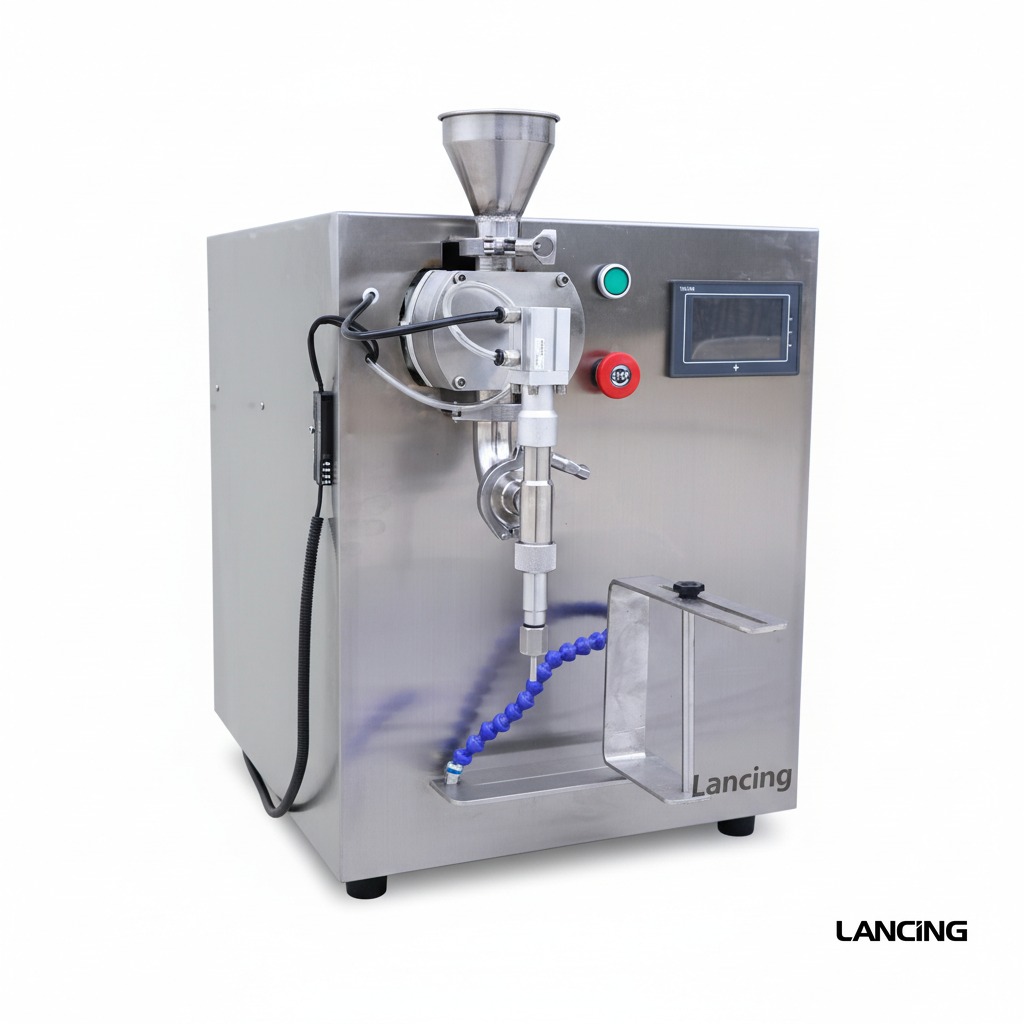

LU‑VTRP1A Servo Motor Paste Filling Machine

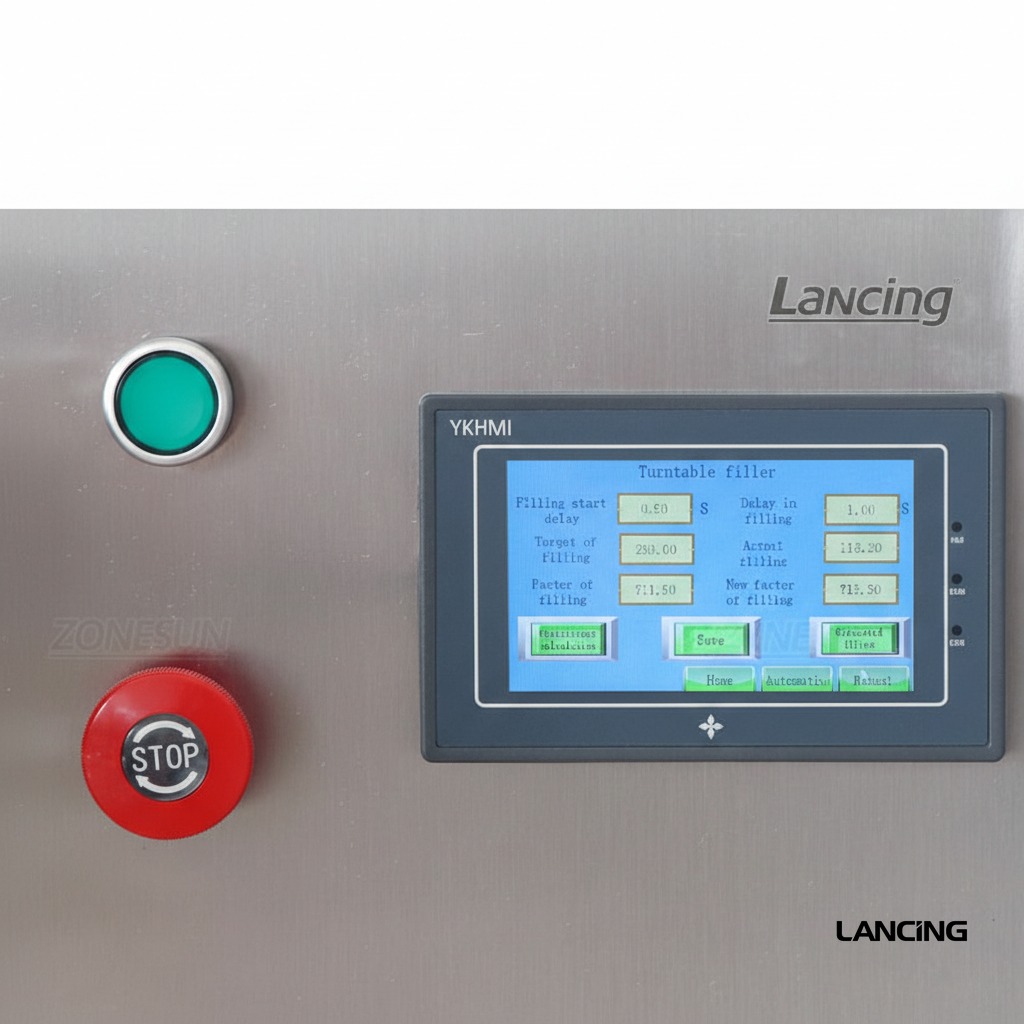

The Lancing UK LU‑VTRP1A servo motor rotor pump paste filling machine with bottle unscrambler is built for high‑precision, automated filling of viscous products. The servo motor control ensures exceptional accuracy, while allowing quick, easy adjustment of filling volume and speed. Its integrated bottle unscrambler streamlines container feeding and collection, improving production efficiency. Suitable for a wide range of paste products such as honey, glue, syrup, and ketchup, this machine is widely used across the food, daily chemical, and cosmetics industries. With a filling range of 5 ml to 5000 ml, OD 25 mm nozzles, and speeds of 20–35 bottles per minute (depending on container size and liquid), it combines reliability, versatility, and productivity in one compact unit. Lancing UK LU‑VTRP1A — Specifications Parameter Details Machine Model LU‑VTRP1A Voltage 220 V / 110 V, 50‑60 Hz Power Approx. 1 kW Machine Pump Rotor pump Minimum Filling Range 5 – 5000 ml Filling Speed 20 – 35 bottles/min (depends on bottle size & liquid) Filling Accuracy ≤ ± 1 % Filling Nozzle Diameter OD 25 mm Suitable Bottle Height 50 – 250 mm Suitable Bottle Diameter 50 – 100 mm Hopper Capacity Approx. 25 L Machine Size (L×W×H) Approx. 1680 × 1200 × 1800 mm Machine Weight Approx. 200 kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
