Pro Range

LU-VTRP1A Servo Rotor Pump Paste Filling Machine

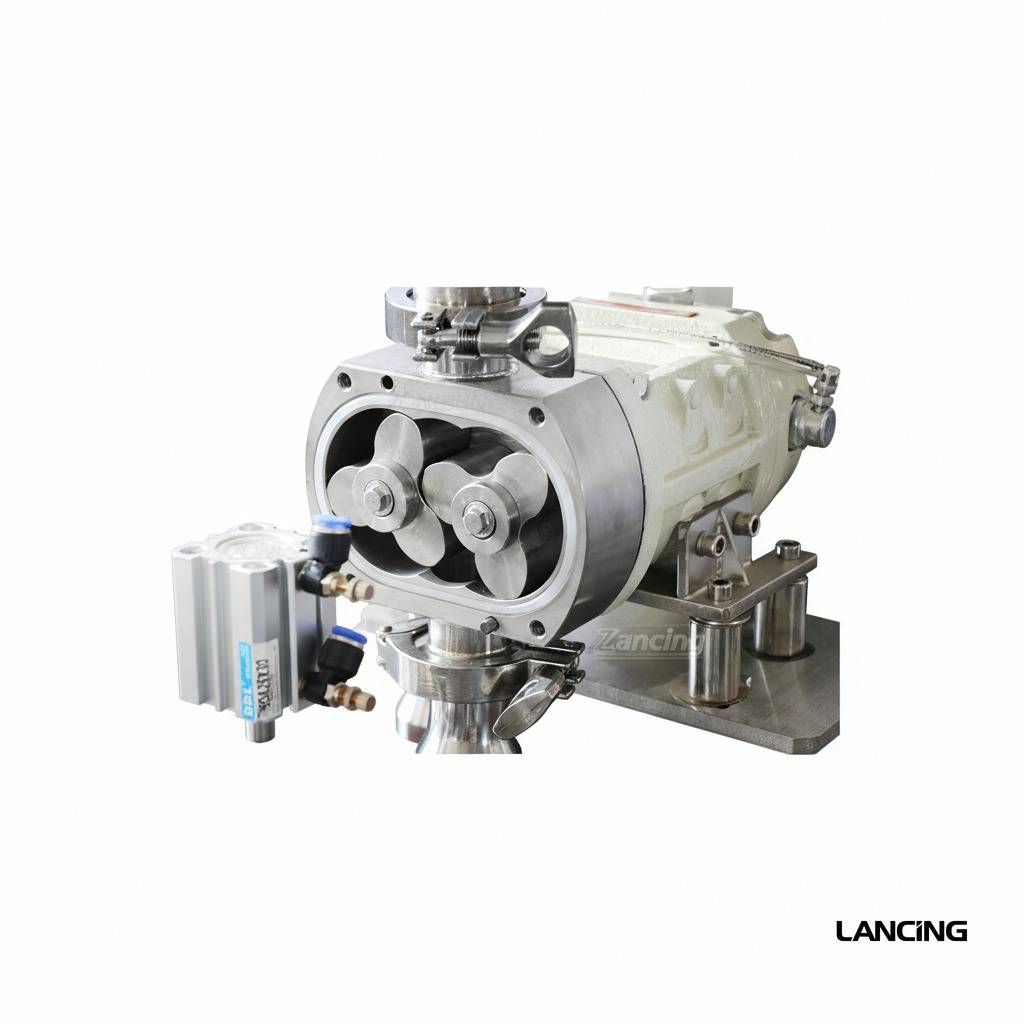

The Lancing UK LU-VTRP1A is a high-precision paste filling machine powered by a servo motor and equipped with a rotor pump. Designed for viscous liquids such as honey, glue, syrup, and ketchup, it offers adjustable filling volume and speed with exceptional accuracy (≤ ±1%). Its 30L hopper and wide filling range (50–1500 ml) make it ideal for food, cosmetics, and daily chemical industries. With a compact footprint and user-friendly controls, it ensures efficient and consistent filling for bottles of various sizes. Lancing UK LU-VTRP1A Rotor Pump Liquid Filling Machine Specifications Parameter Details Model LU-VTRP1A Voltage 220V / 110V, 50–60Hz Power Approx. 230W Machine Pump Type Rotor Pump Filling Range 50–1500 ml Filling Speed Approx. 25 bottles/min (based on 500ml water; speed varies by bottle size and liquid) Filling Accuracy ≤ ±1% Filling Nozzle Diameter Outer Diameter 25 mm Suitable Bottle Height 30–235 mm Suitable Bottle Diameter 30–110 mm Hopper Capacity Approx. 30L Machine Dimensions Approx. 1880 × 760 × 1510 mm (L × W × H) Machine Weight Approx. 95 kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
