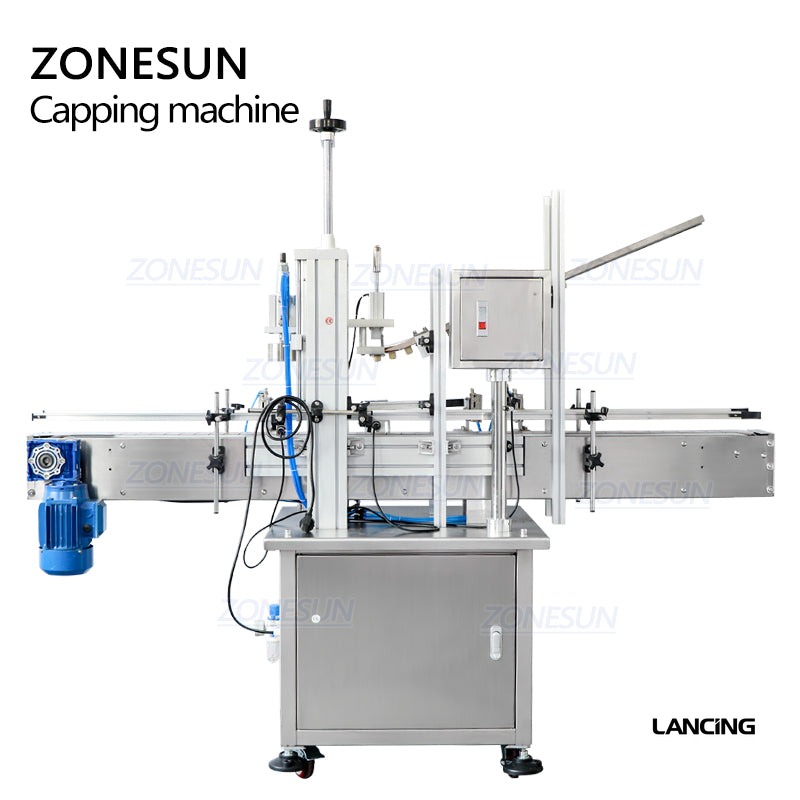

LU-XG16D1 Automatic Cork Pressing Machine with Cap Feeder

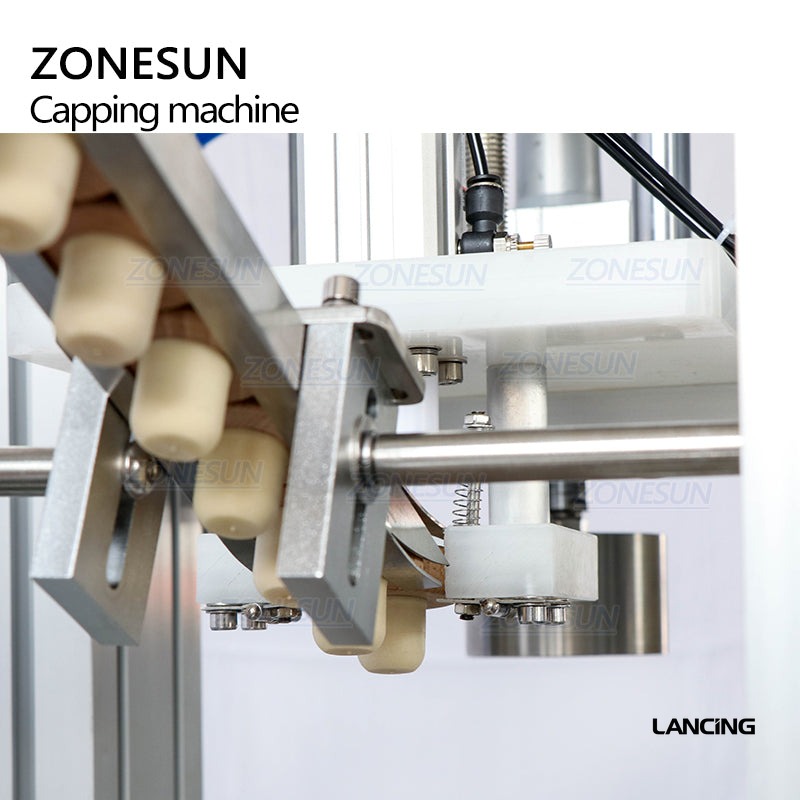

The Lancing UK LU-XG16D1 is a custom automatic capping machine designed specifically for pressing wooden corks into wine bottles and similar containers. Equipped with a cork guiding rail, it automatically feeds caps before capping, ensuring smooth and efficient operation. The guide rail can be customized to match various cork diameters, making the machine highly adaptable. With a working speed of up to 60 bottles per minute and compatibility with filling and labeling machines, it supports full automation for bottling lines. Ideal for wineries, beverage producers, and cosmetic packaging, this machine combines precision, speed, and flexibility in a compact footprint. LU-XG16D1 Automatic Capping Machine – Technical Specifications Specification Details Machine Model LU-XG16D1 Working Voltage AC220V / 110V, 50–60Hz Power Approx. 1100W Bottle Height 30–300 mm Cap Diameter 18–70 mm Bottle Diameter 30–100 mm Working Speed 20–60 bottles/min (depends on bottle & cap) Working Pressure 0.4–0.6 MPa Air Compressor Connector OD 8 mm Conveyor Size 115 mm (W) × 1020 mm (L) Machine Dimensions Approx. 680 × 680 × 1730 mm Machine Weight Approx. 112.5 kg Package Dimensions Approx. 770 × 1650 × 1970 mm Package Weight Approx. 180 kg

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
