LU-XGFX-6G High-Speed Rotary Screw-on Capping Machine

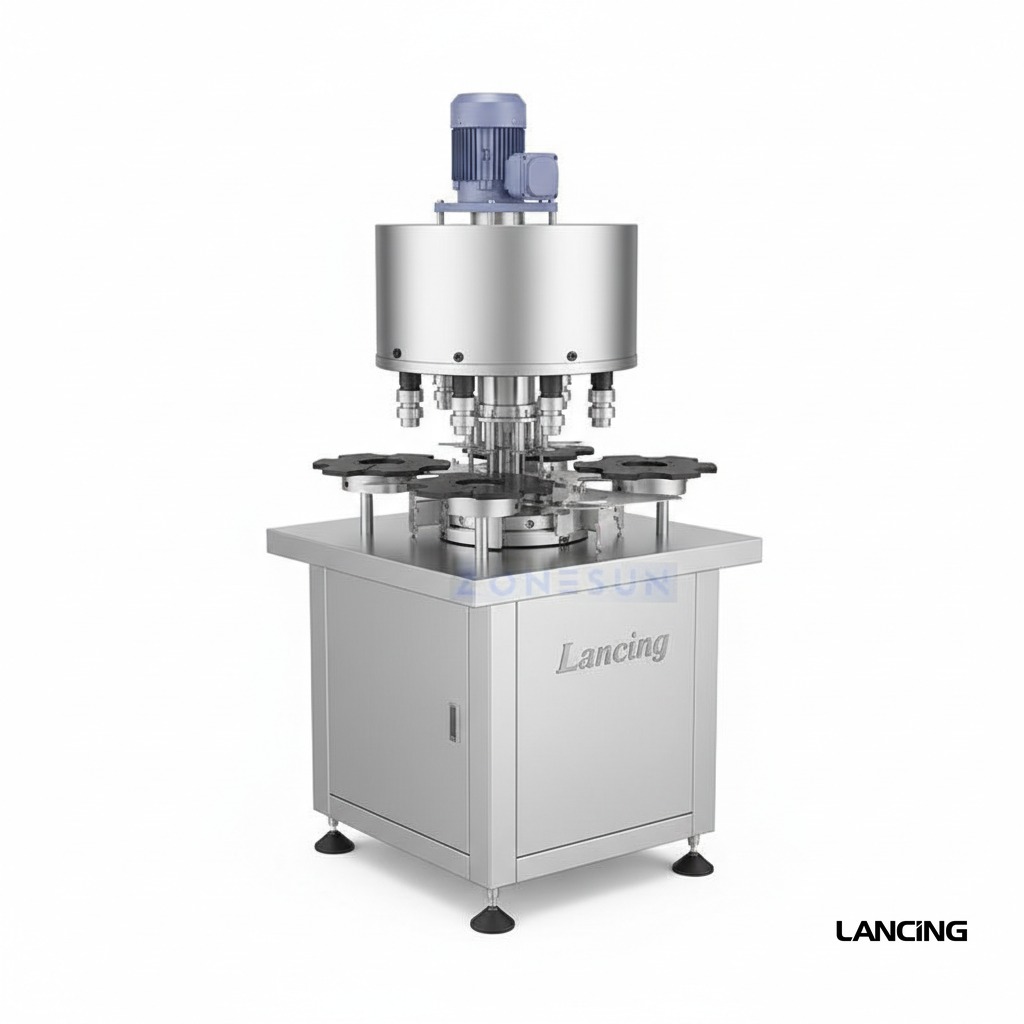

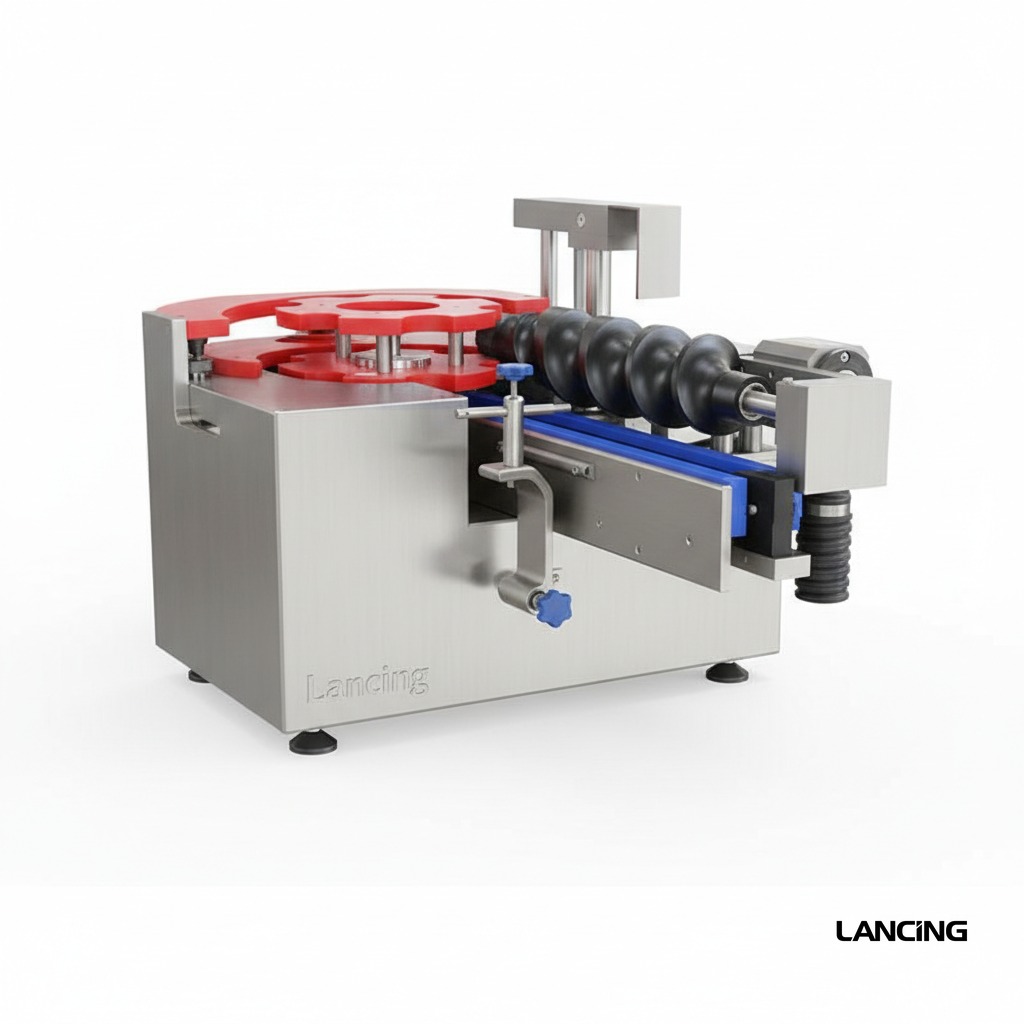

The Lancing UK LU-XGFX-6G is a high-speed rotary screw-on capping machine engineered for precision and efficiency. With a capacity of up to 6000 bottles per hour, it features an auger separator that organizes bottles before guiding them through the infeed star wheel. Bottles are then transferred to the rotary turret, where capping heads securely screw on caps ranging from Φ12–70mm. The outfeed star wheel ensures smooth discharge, while an overhead cap feeder integrates seamlessly with external cap unscramblers. Ideal for large-scale bottling operations, this machine delivers consistent, automated performance across a wide range of bottle sizes. LU-XGFX-6G Automatic Capping Machine – Technical Specifications Parameter Specification Model LU-XGFX-6G Production Capacity ≤6000 bottles per hour (bph) Applicable Caps Screw-on caps: Φ12–70mm Applicable Bottles Diameter: Φ35–96mm Air Pressure 0.5–0.7 MPa Power Consumption 3.5kW Voltage 220V, 50Hz Machine Weight 1500kg Machine Dimensions 3500 × 1350 × 2300mm (Length × Width × Height)

• Throughput: Configurable (confirm during quote)
• Format range: Formats adjustable (bottle/closure dependent)
• Utilities: Site utilities to be confirmed
