LU-YT4T-4D Automatic Liquid Filling Machine
The LU-YT4T-4D is a high-efficiency automatic liquid filling machine equipped with diving nozzles, ideal for foamy and non-foamy liquids such as shampoo...
Product ranges
Pro Range
LU-YT4T-4D Automatic Liquid Filling Machine
The LU-YT4T-4D is a high-efficiency automatic liquid filling machine equipped with diving nozzles, ideal for foamy and non-foamy liquids such as shampoo, juice, and detergent. Featuring PLC control, precise bottle detection, and a stable conveyor system, it’s perfect for streamlining production in cosmetic, beverage, and pharmaceutical industries. Compatible with capping and labeling machines for full automation.
- Throughput: 10-30botles/min
- Format range: 5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml
- Utilities: 110/220V 50-60HZ 600W
Gallery

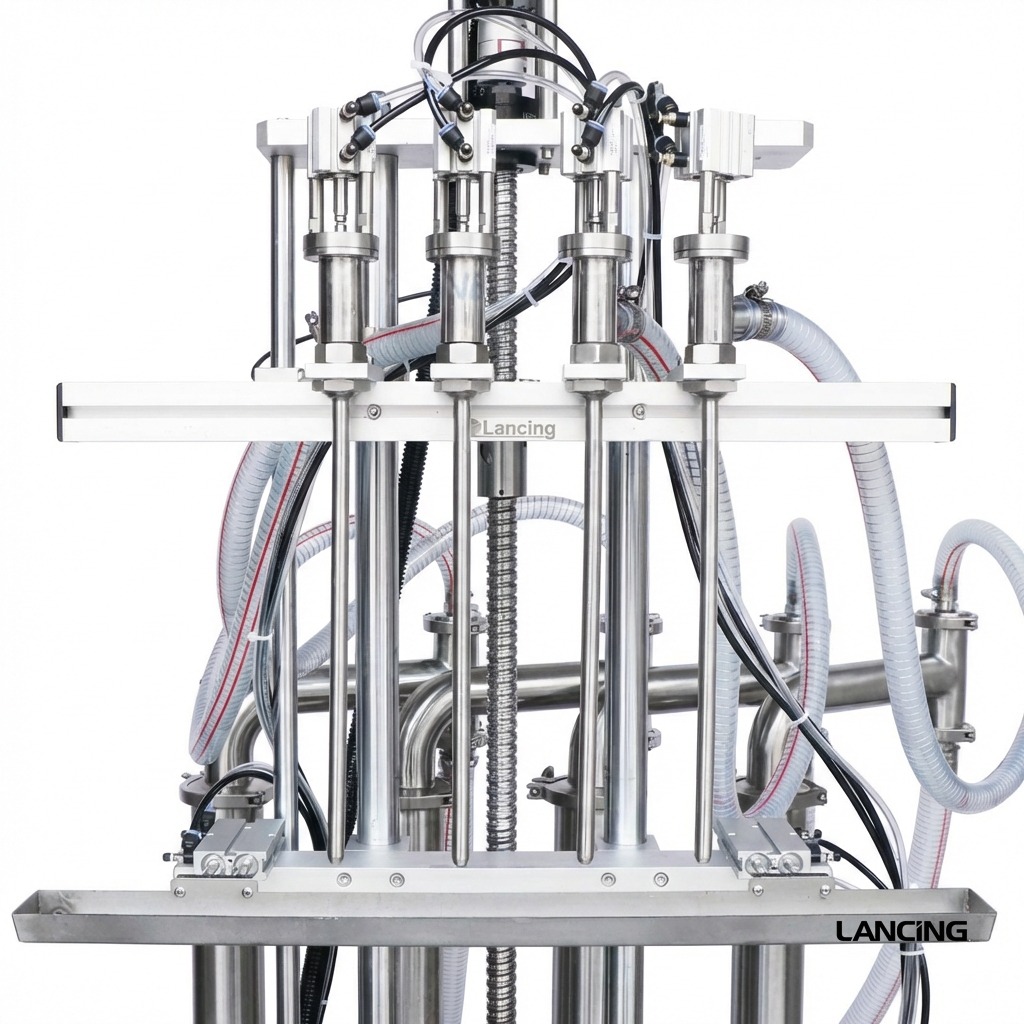

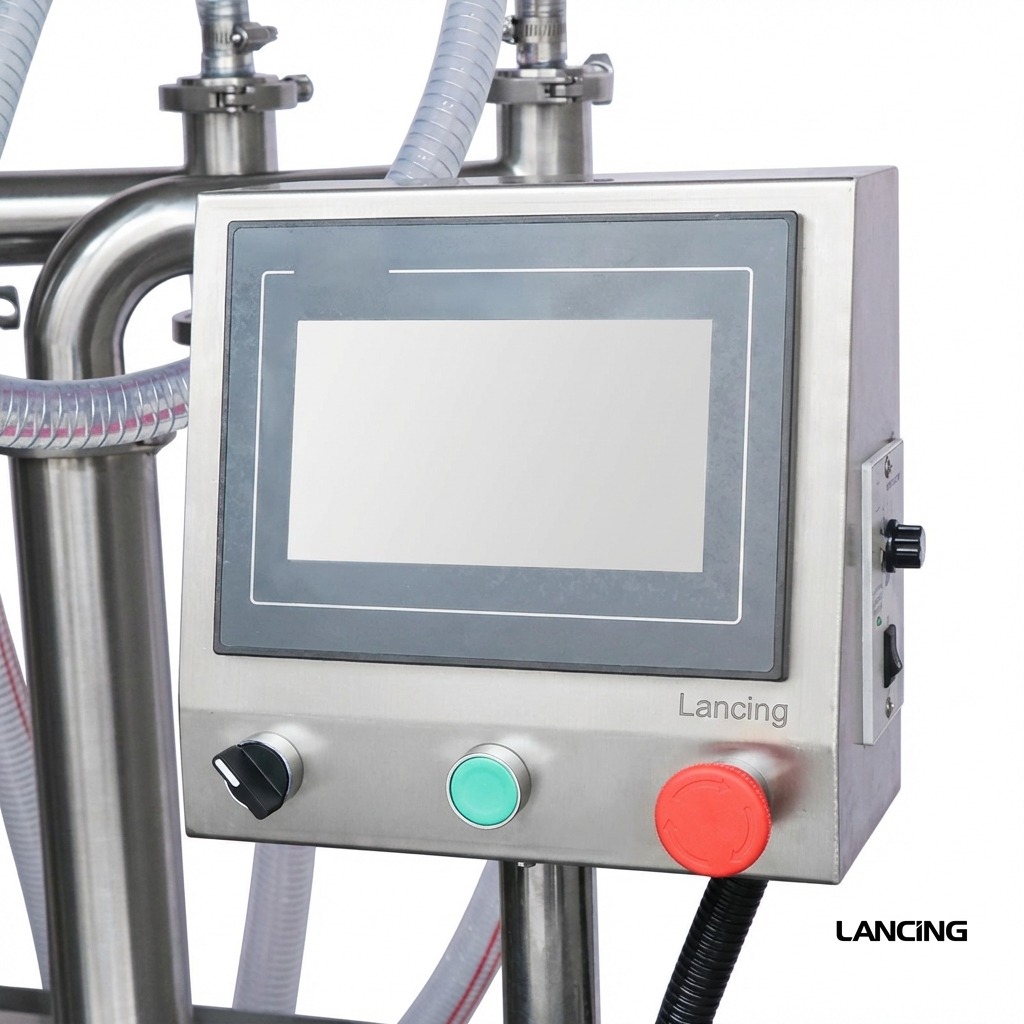

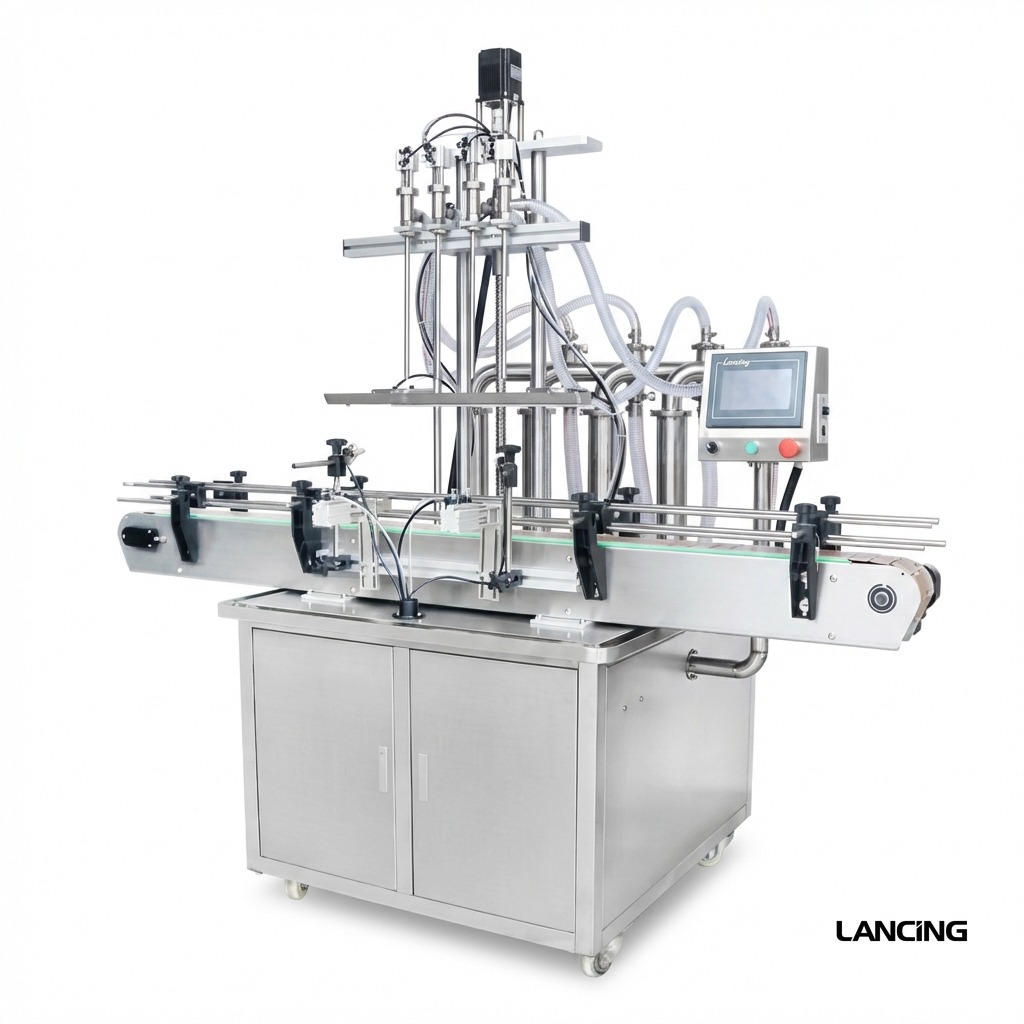

Machine views
Specifications
Reference details
| Model | LU-YT2T-2D |
|---|---|
| Voltage | 110/220V 50-60HZ 600W |
| Filling Range | 5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
| Working Speed(based on water) | 10-30botles/min |
| Filling Nozzle Type | Lifting Filling Nozzle(Suitable for foamy liquid) |
| Filling Accuracy | ≤士1% |
| Air Pressure | 0.5-0.7MPa |
| Conveyor length | 2050mm(standard) |
| Conveyor material | Plastic (standard)/stainless steel (custom version) |
| Size of air compressor connector | OD 10mm |
| Machine weight | 220kgs |
| Dimension | 210x86x146cm |
Quick answers
Buyer and engineer notes
What is LU-YT4T-4D Automatic Liquid Filling Machine used for?
The LU-YT4T-4D is a high-efficiency automatic liquid filling machine equipped with diving nozzles, ideal for foamy and non-foamy liquids such as shampoo, juice, and detergent. Featuring PLC control, precise bottle detection, and a stable conveyor system, it’s perfect for streamlining production in cosmetic, beverage, and pharmaceutical industries.
What output can LU-YT4T-4D Automatic Liquid Filling Machine achieve?
This page lists output at 10-30botles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110/220V 50-60HZ 600W; Air pressure: 0.5-0.7MPa; Footprint / size: OD 10mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
