LU-YT4T-4PX Automatic Paste Lotion Bottle Filling Machine
This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Filling work is controlled...
Product ranges
Pro Range
LU-YT4T-4PX Automatic Paste Lotion Bottle Filling Machine
This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Filling work is controlled by servo motor, this is can simplify machine operation and improves working efficiency. Different filling range can be chosen and multiple filling nozzle can be customized according to operation need.This machine is suitable for filling hot sauce, cosmetic cream,lotion etc.
- Throughput: About 30-50 bottles/min
- Format range: 10-180ml / 30-500ml / 100-1000ml
- Utilities: 110/220V 50-60HZ 1KW
Gallery

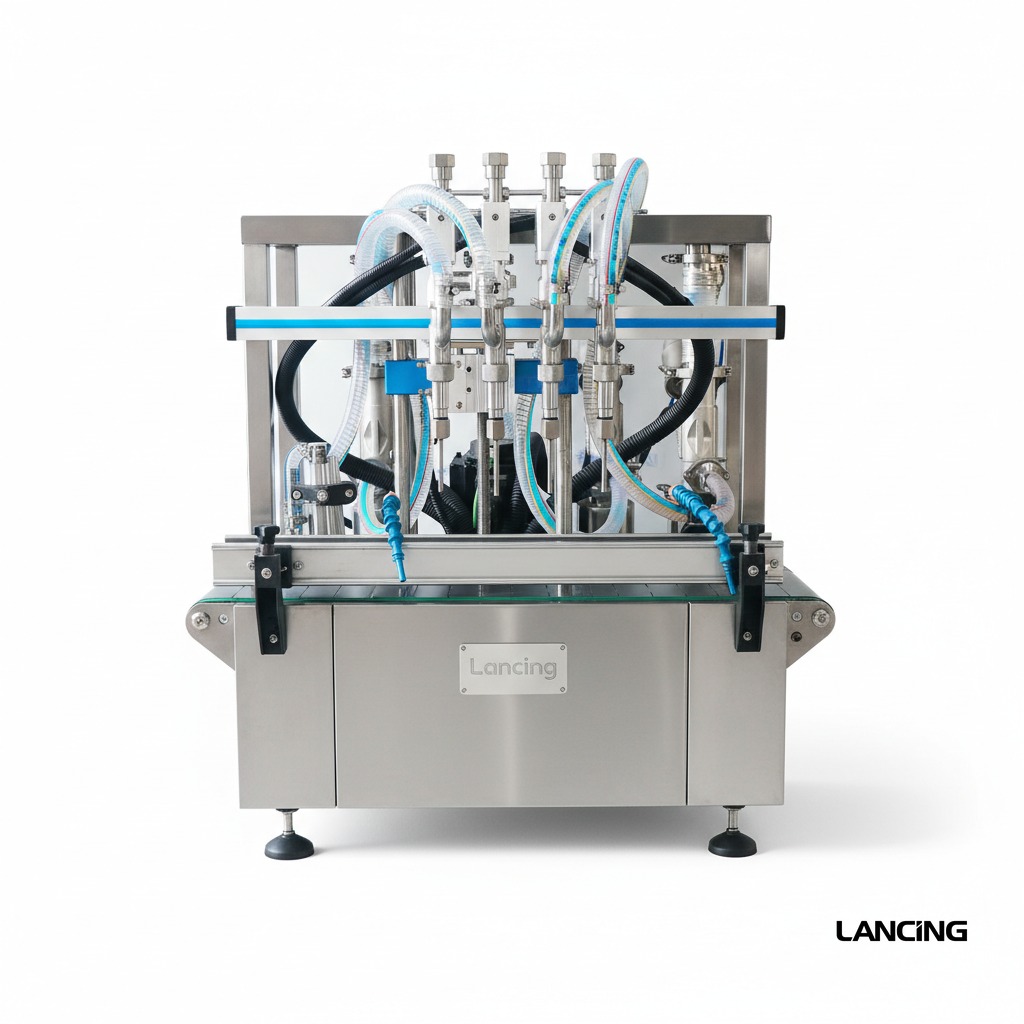

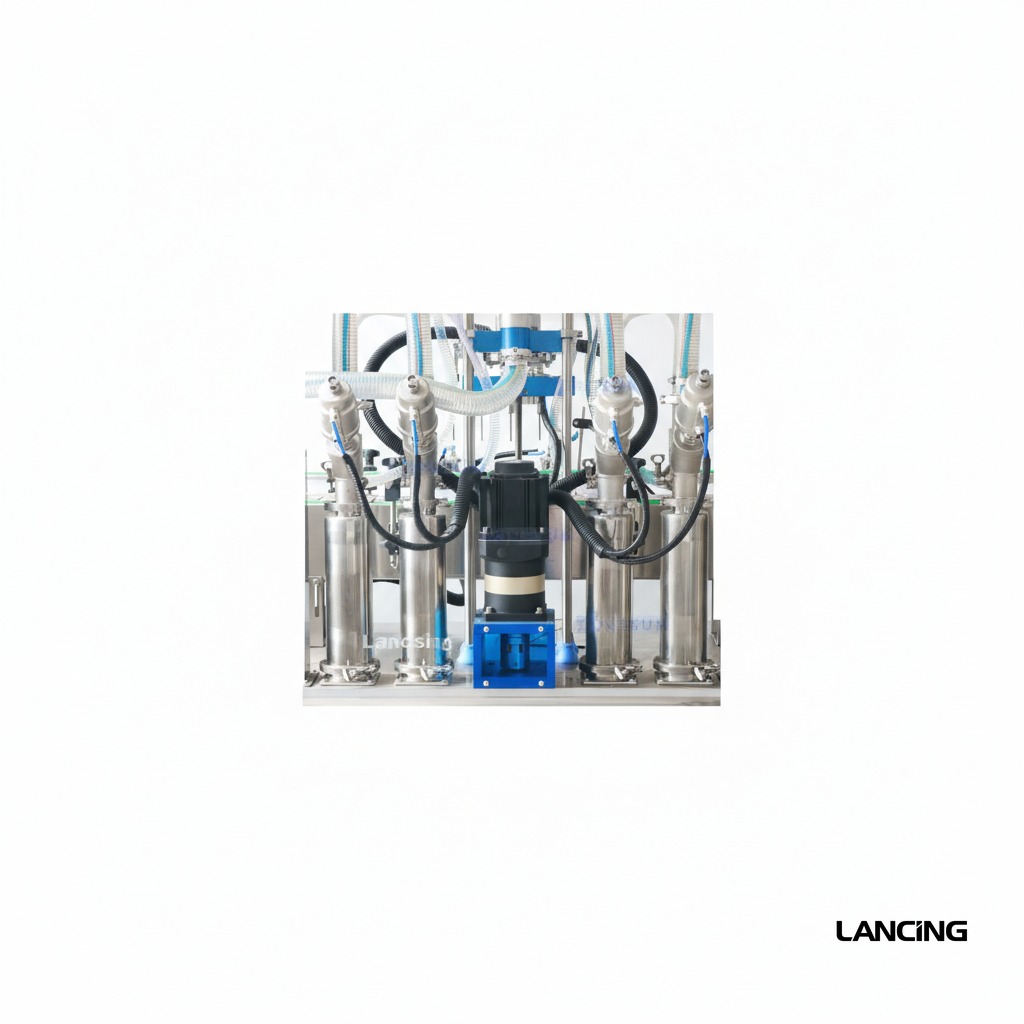

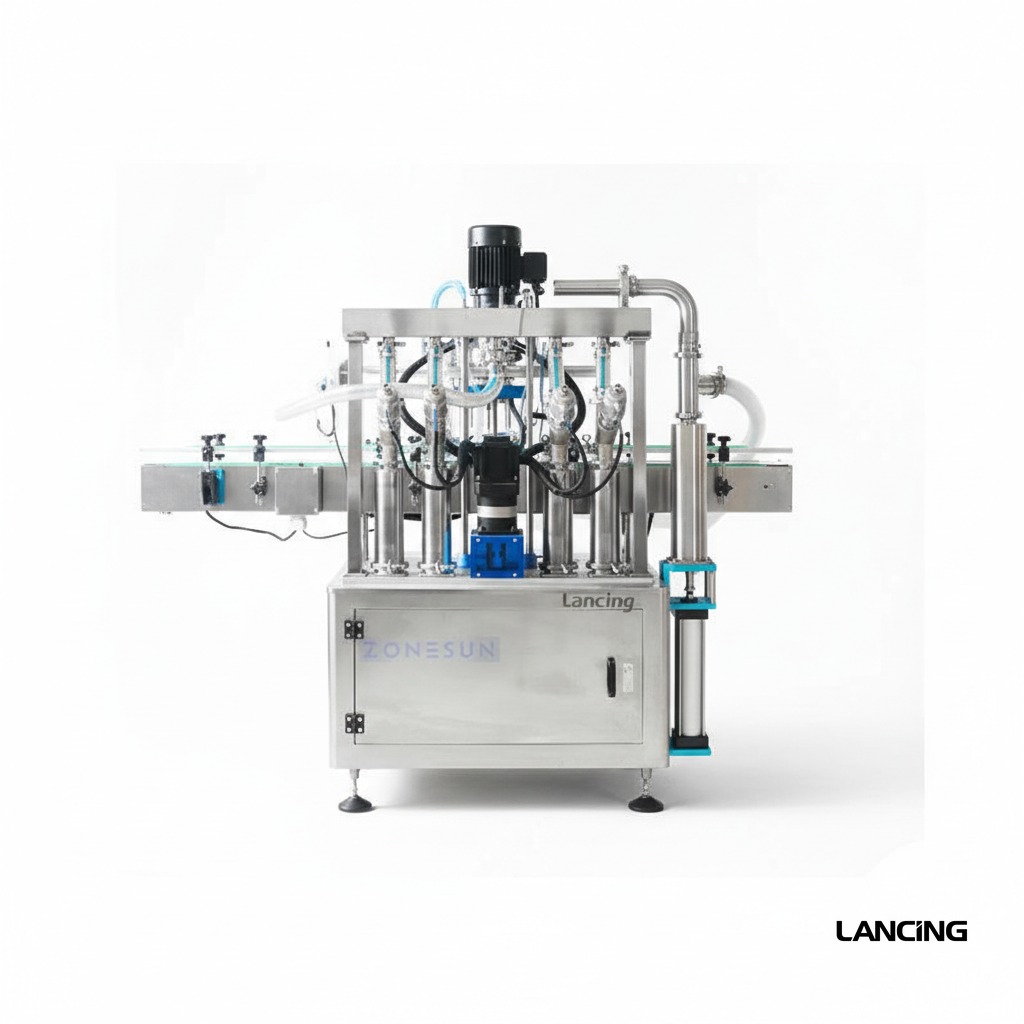

Machine views
Specifications
Reference details
| Model | LU-YT4T-4PX |
|---|---|
| Voltage | 110/220V 50-60HZ 1KW |
| Filling Range | 10-180ml / 30-500ml / 100-1000ml |
| Working Speed | About 30-50 bottles/min |
| Filling Pump | Piston pump |
| Filling Accuracy | ≤ ±1% |
| Filling Head | 4 (Customizable) Inner dia.: 6mm 4 & 8mm 4 |
| Control | 7-inch touch screen |
| Storage Tank | 90L |
| Conveyor | 2000 × 114mm (Customizable) |
| Air Supply | 0.6-0.8MPa (Air compressor required, sold separately) |
| Size | 2000 × 800 × 1800mm |
| Weight | 200kg |
| Packaging Size | 2070 × 960 × 2010mm (100-1000ml) |
| Packaging Weight | 392kg (100-1000ml) |
Quick answers
Buyer and engineer notes
What is LU-YT4T-4PX Automatic Paste Lotion Bottle Filling Machine used for?
This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Filling work is controlled by servo motor, this is can simplify machine operation and improves working efficiency. Different filling range can be chosen and multiple filling nozzle can be customized according to operation need.This machine is suitable for filling hot sauce, cosmetic cream,lotion etc.
What output can LU-YT4T-4PX Automatic Paste Lotion Bottle Filling Machine achieve?
This page lists output at About 30-50 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Voltage: 110/220V 50-60HZ 1KW; Footprint / size: 2000 × 800 × 1800mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
