LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine
Application This machine is suitable for filling liquid, such as shampoo, laundry detergent, cooking oil, etc. It can work with automatic labeling machi...
Product ranges
Pro Range
LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine
Application This machine is suitable for filling liquid, such as shampoo, laundry detergent, cooking oil, etc. It can work with automatic labeling machine and capping machine, realizing automated production.
- Throughput: 20–50 bottles/min
- Format range: 100–1000ml (5–100ml / 10–300ml / 50–500ml / 500–3000ml / 1000–5000ml can be chosen)
- Utilities: 110/220V, 800W
Gallery

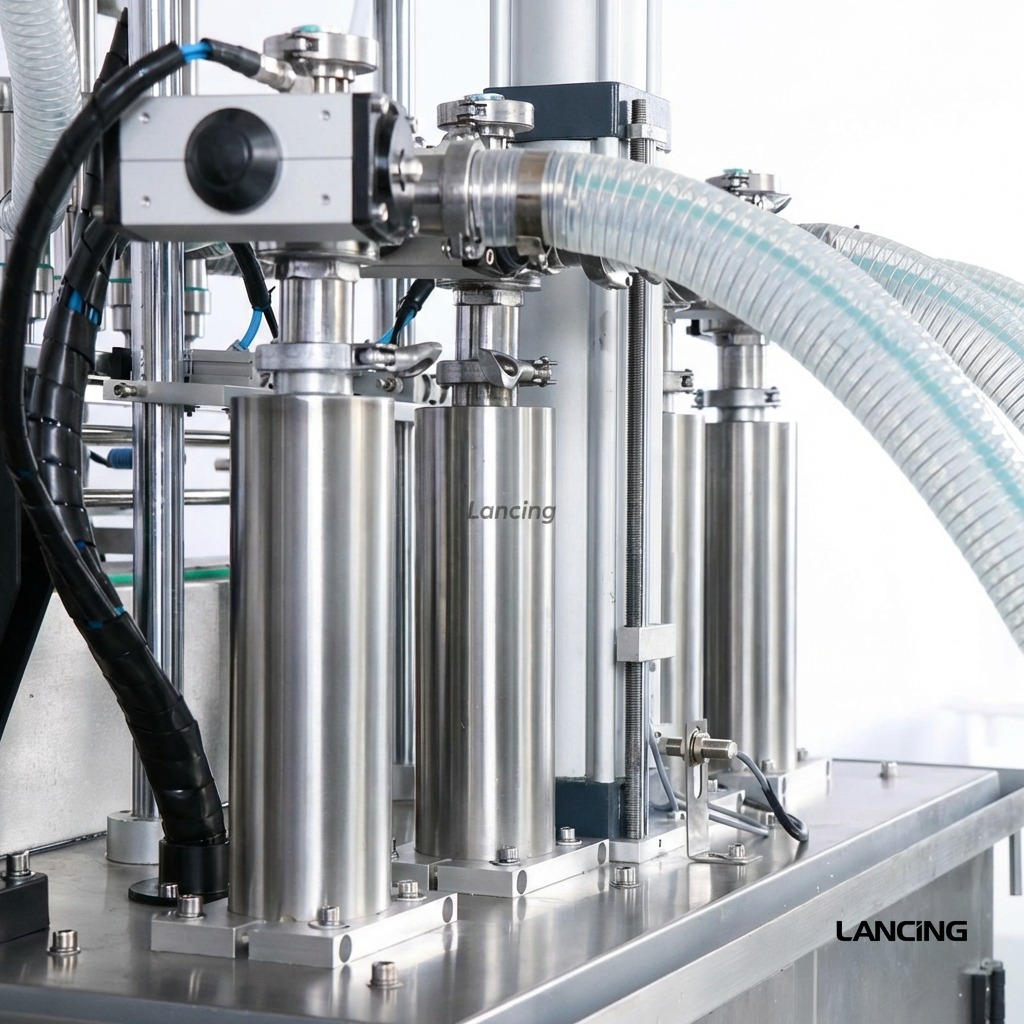

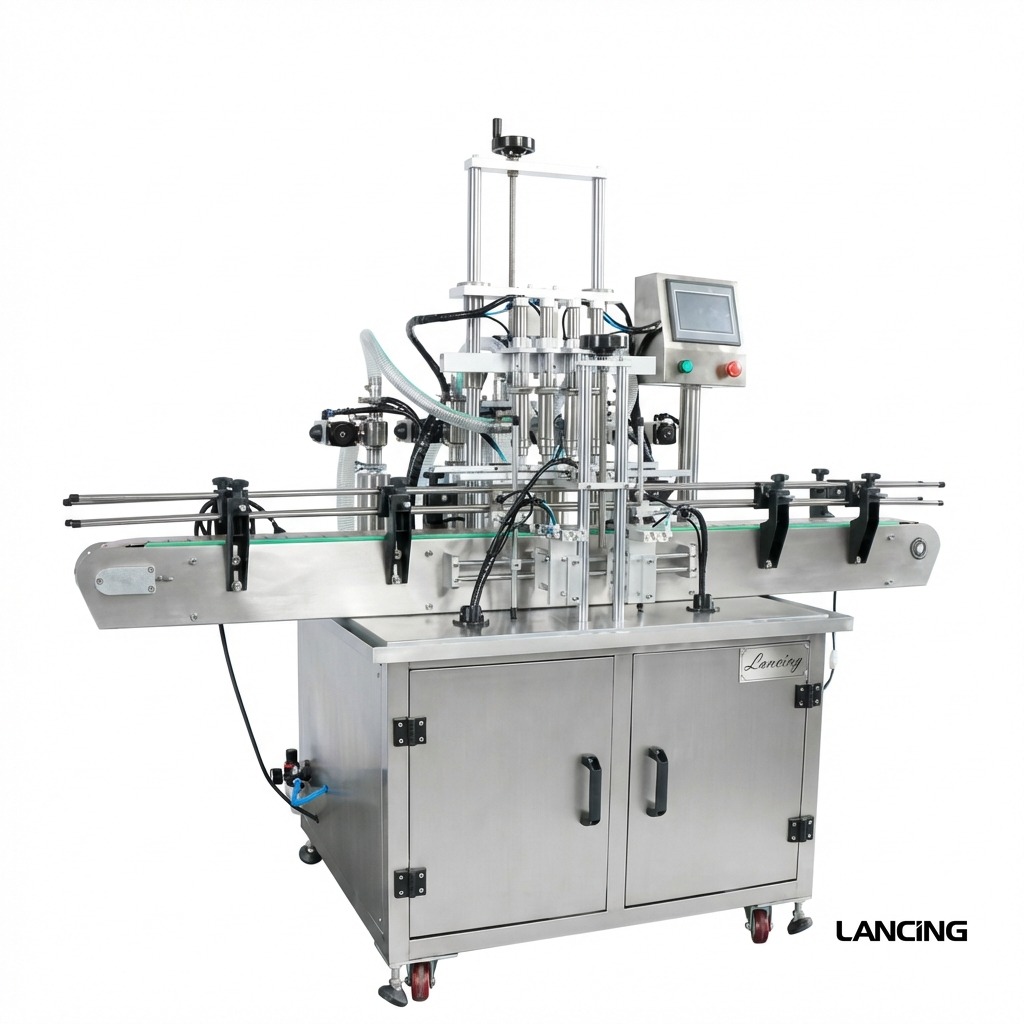

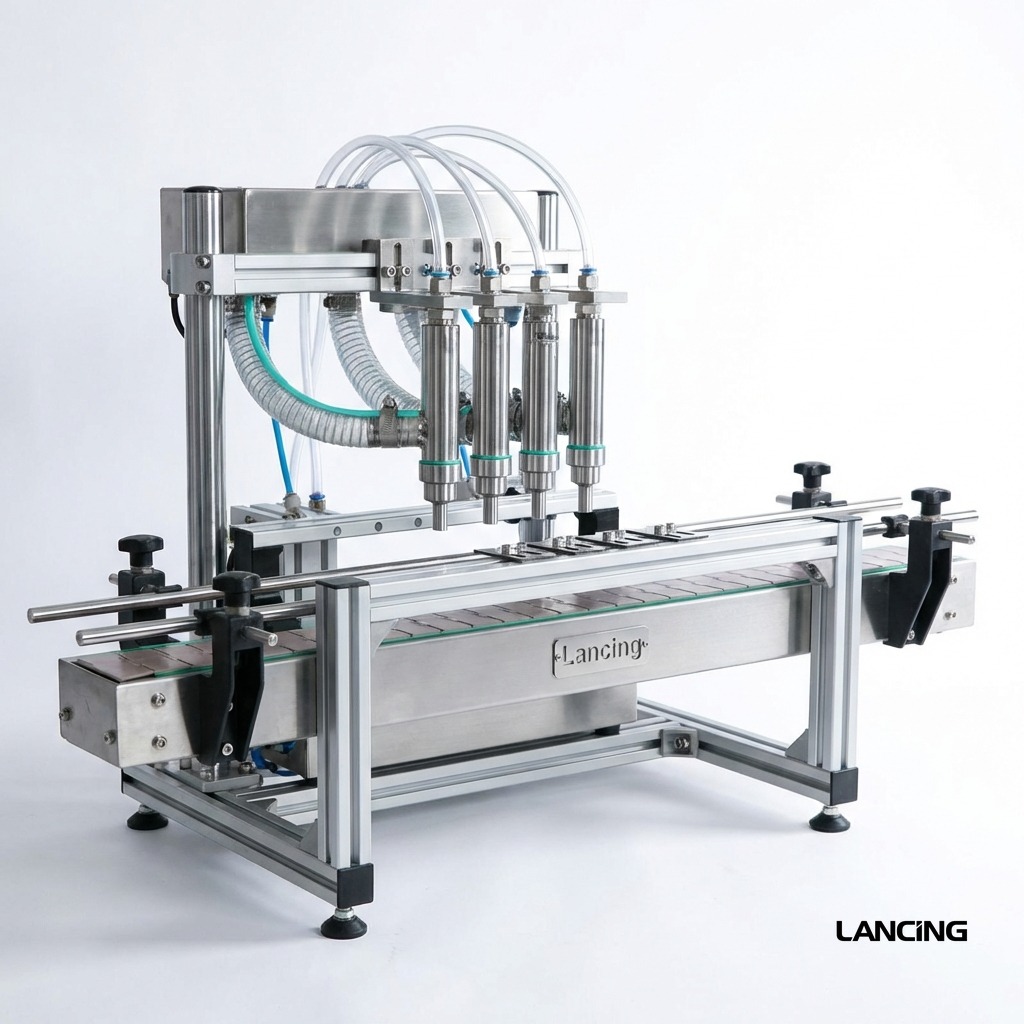

Machine views
Specifications
Reference details
| Machine model | LU-YT4TZ |
|---|---|
| Machine power | 110/220V, 800W |
| Air pressure | 0.5–0.8MPa |
| Filling range | 100–1000ml (5–100ml / 10–300ml / 50–500ml / 500–3000ml / 1000–5000ml can be chosen) |
| Filling accuracy | About ±3g |
| Filling speed | 20–50 bottles/min |
| Conveyor belt size | 1980×100mm |
| Machine size (L×W×H) | About 1025×900×1700mm |
| Machine weight | About 259kg |
| Package size (L×W×H) | About 2060×960×1880mm |
| Package weight | About 360kg |
Quick answers
Buyer and engineer notes
What is LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine used for?
Application This machine is suitable for filling liquid, such as shampoo, laundry detergent, cooking oil, etc. It can work with automatic labeling machine and capping machine, realizing automated production.
What output can LU-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine achieve?
This page lists output at 20–50 bottles/min. Actual throughput depends on the product, container, fill volume, changeover requirements and overall line setup.
What utilities or site requirements should I plan for?
Power: 110/220V, 800W; Air pressure: 0.5–0.8MPa; Footprint / size: 1980×100mm
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
