LU-YTZL4A 4-Head Vacuum Liquid Filling Machine
The Lancing UK LU-YTZL4A is a high-precision vacuum liquid filling machine equipped with four pneumatic filling nozzles featuring back-suction and liqui...
Product ranges
Pro Range
LU-YTZL4A 4-Head Vacuum Liquid Filling Machine

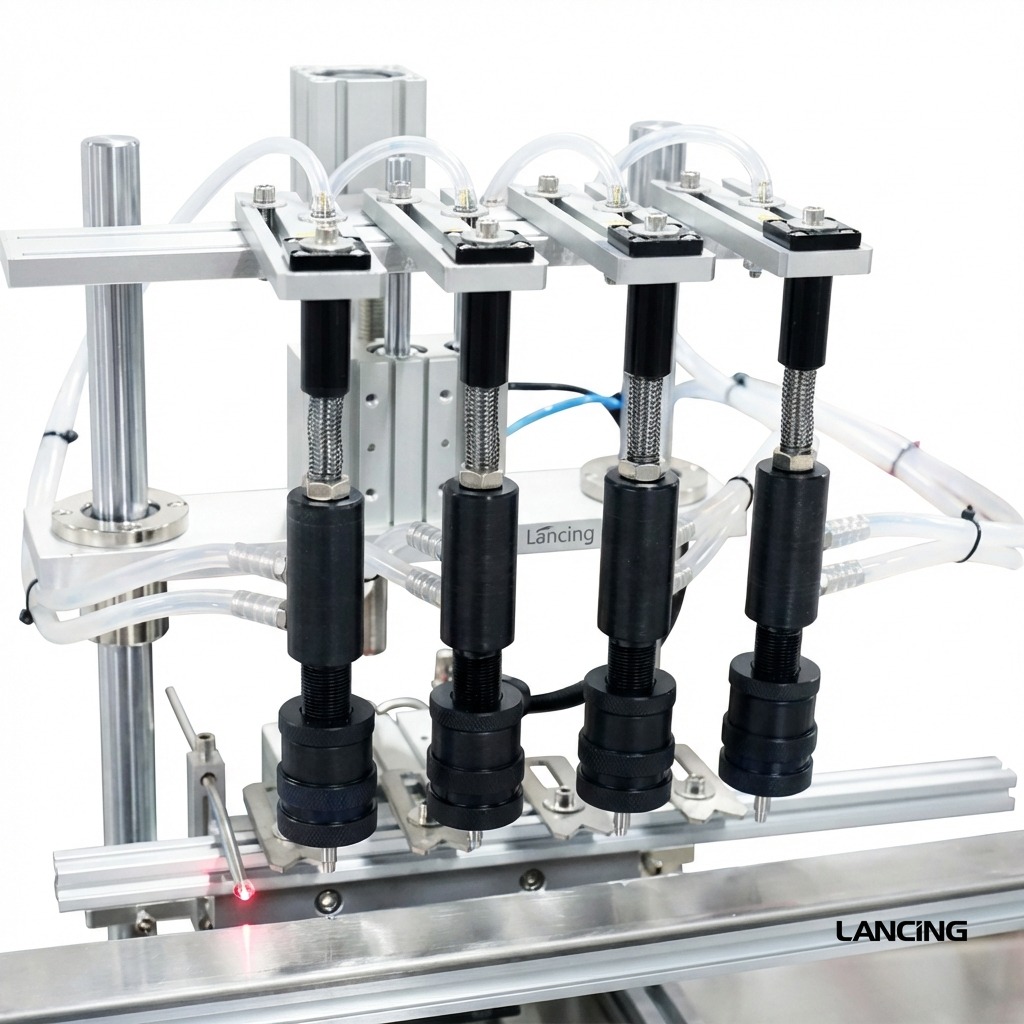

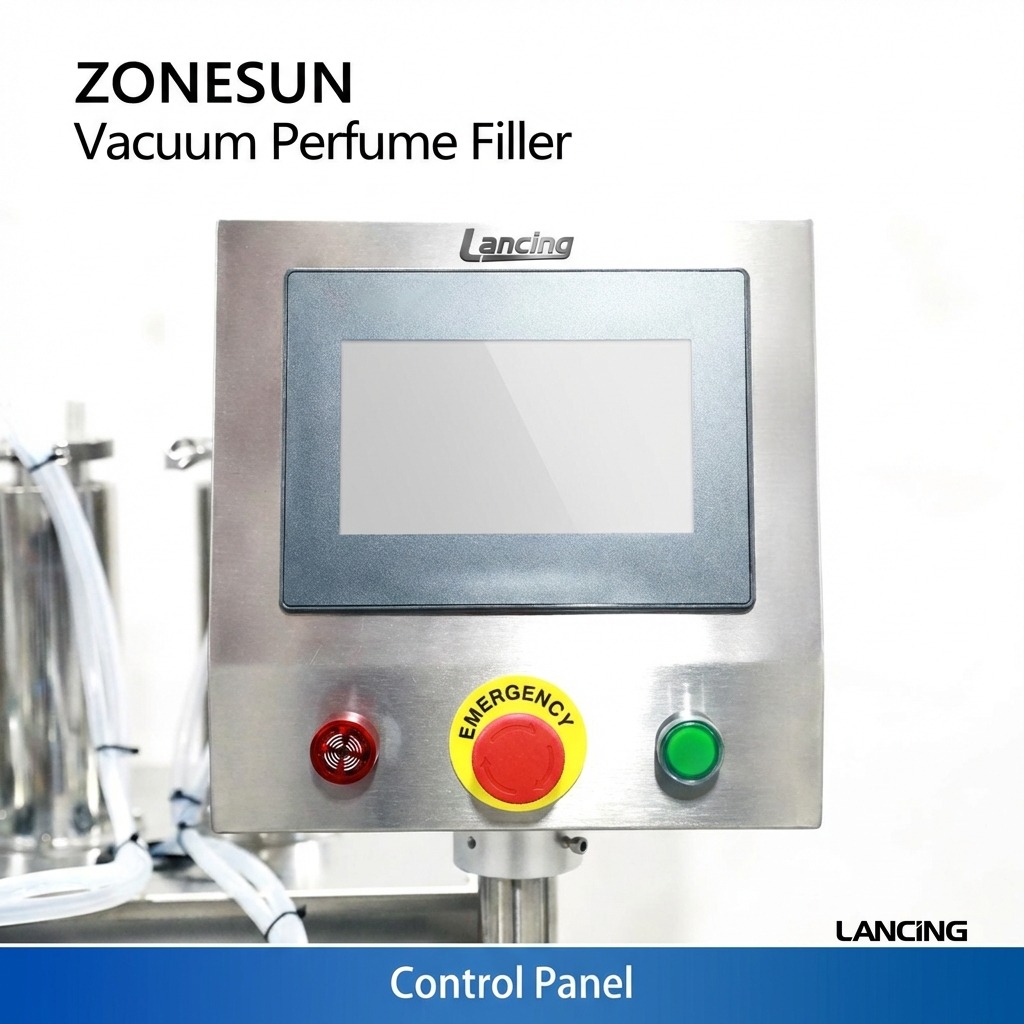

The Lancing UK LU-YTZL4A is a high-precision vacuum liquid filling machine equipped with four pneumatic filling nozzles featuring back-suction and liquid level control. Designed for low-viscosity liquids such as perfume, water, and juice, it ensures clean, accurate filling without overflow. The PLC touchscreen panel allows easy parameter setup with customizable language options. Integrated electric eye detection and a durable chain conveyor belt enhance automation and efficiency. Ideal for cosmetic and beverage industries, this machine can be seamlessly integrated into a full production line with automatic capping and labeling systems.
- Throughput: Configurable (confirm during quote)
- Format range: Formats adjustable (bottle/closure dependent)
- Utilities: Site utilities to be confirmed
Gallery
Machine views
Specifications
Reference details
| Machine Model | LU-VTZL4A Filling Head ：4 Head Air Pressure ：0.5–0.8 MPa Liquid Level Accuracy ：±1 mm Viscosity Range ：The maximum applicable viscosity is 20Cps (static viscosity) Working Speed ：20–40 bottles/min Bottle Height ：≤250 mm Bottle Opening Size ：Φ8–28 mm Adjustable Liquid Level (from bottle mouth) ：15–50 mm Pumping Rate ：5.5 L/min Machine Size ：About 20208001410 mm Package Size ：About 133021051670 mm Package Weight ：About 335 kg |
|---|
Quick answers
Buyer and engineer notes
What is LU-YTZL4A 4-Head Vacuum Liquid Filling Machine used for?
The Lancing UK LU-YTZL4A is a high-precision vacuum liquid filling machine equipped with four pneumatic filling nozzles featuring back-suction and liquid level control. Designed for low-viscosity liquids such as perfume, water, and juice, it ensures clean, accurate filling without overflow.
What output can LU-YTZL4A 4-Head Vacuum Liquid Filling Machine achieve?
Final throughput depends on the product, container, fill volume and level of automation selected for the project.
What utilities or site requirements should I plan for?
Add “Voltage / Power / Air / Size” specs to show requirements here.
Can Lancing UK help match this machine to my product and container?
Yes. Lancing UK can review your product characteristics, bottle or pack format, closure type, required output and site constraints to confirm the right configuration before supply.
